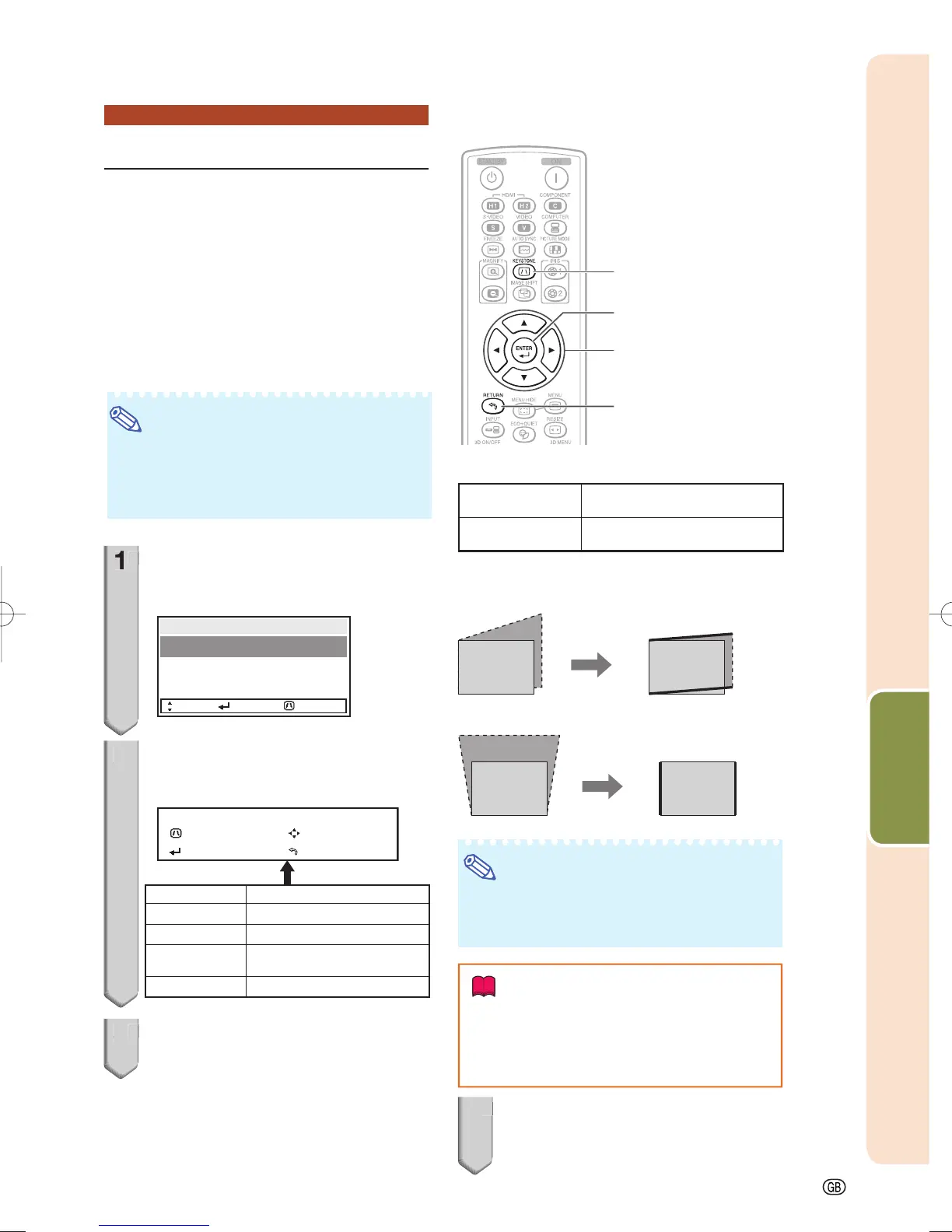

Sharp XV-Z17000 User Manual

Basic Operation
-25
Keystone Correction
This function can correct distortion of an image
projected toward a spherical or cylindrical screen
as well as trapezoidal distortion of an image on a
fl at screen and rotate the image at your arbitrary
angle.
 Keystone
When the image is projected either from the top or
from the bottom towards the screen at an angle, the
image becomes distorted trapezoidally. The
function for correcting trapezoidal distortion is
called Keystone Correction.
Note
The Keystone Correction can be adjusted up
to an angle of approximately ±40 degrees
with “V-Keystone” and approximately ±30
degrees with “H-Keystone”.
1
Press KEYSTONE to enter the
keystone mode.
The keystone mode list appears.
SEL. ENTER
END
SPHERE
ROTATION
KEYSTONE MODE
KEYSTONE
2
Press P/R to select “KEYSTONE”,
and then press ENTER.
The keystone menu guide appears.
ADJUST
RESETTESTPATTERN
END
KEYSTONE
H: 0 V: 0
Selectable buttons Description
END  KEYSTONE
Exits the keystone mode.
ADJUST 
P/R/O/Q
Adjusts the keystone correction.
TESTPATTERN
ENTER
Displays the testpattern.
RESET  RETURN
Returns to a default setting.
3
Press P/R/O/Q to adjust the
Keystone Correction.
•
•
•
1
2
3
KEYSTONE button
Adjustment buttons
(P/R/O/Q)
RETURN button
Keystone Correction
H-Keystone Correction:
V-Keystone Correction:
O, Q button
For horizontal keystone correction
P, R button
For vertical keystone correction
Note
To return to the default setting, press RETURN
while the on-screen display of the Keystone
mode is on the screen.
Info
While adjusting the image using Keystone/
Sphere/Rotation Correction, straight lines
and the edges of the image may appear
jagged.
•
4
Press KEYSTONE.
The on-screen display of the Keystone
mode will disappear.
•
•
4
ENTER button
XV-Z17000EUS.indb25XV-Z17000EUS.indb25 2010/12/1711:16:222010/12/1711:16:22

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
