Sharp XV-Z17000 User Manual

-26

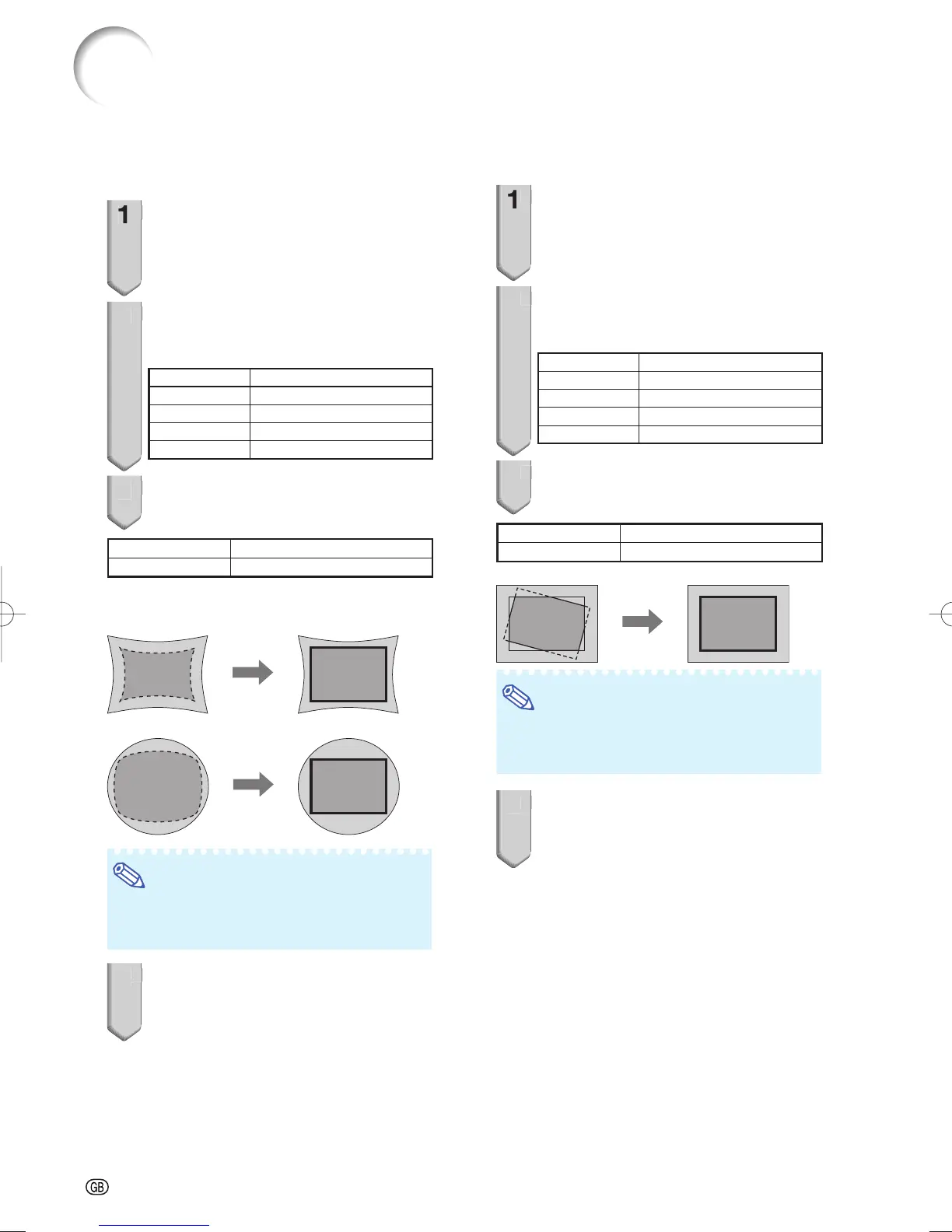

Image Projection (Continued)
 Sphere
This function can correct distortion of an image
projected toward a spherical or cylindrical screen.
1
Press KEYSTONE to enter the
keystone mode.
The keystone mode list appears. (See
page 25.)
2
Press P/R to select “SPHERE”,
and then press ENTER.
The sphere menu guide appears.
Selectable items Description
RETURN
Returns to the keystone mode list.
ADJUST Adjusts the sphere correction.
TESTPATTERN Displays the testpattern.
RESET Returns to a default setting.
3
Press P/R/O/Q to adjust the
Sphere Correction mode.
P, Q button
For correction of concave distortion
R, O button
For correction of convex distortion
Sphere Correction
Correction of Concave Distortion:
Correction of Convex Distortion:
Note
To return to the default setting, press RETURN
while the on-screen display of the Keystone
mode is on the screen.
4
Press KEYSTONE.
The on-screen display of the Sphere
Correction mode will disappear.
•
•
•
•
1
2
3
4
 Rotation
This function rotates the image at an arbitrary angle.
1
Press KEYSTONE to enter the
keystone mode.
The keystone mode list appears. (See
page 25.)
2
Press P/R to select “ROTATION”,
and then press ENTER.
The rotation menu guide appears.
Selectable items Description
RETURN Returns to the keystone mode list.
ADJUST Adjusts the rotation correction.
TESTPATTERN Displays the testpattern.
RESET Returns to a default setting.
3
Press P/R/O/Q to adjust the
Rotation Correction mode.
P, Q button
Rotates the image clockwise.
R, O button
Rotates the image counterclockwise.
Rotation Correction
Note
To return to the default setting, press RETURN
while the on-screen display of the Keystone
mode is on the screen.
4
Press KEYSTONE.
The on-screen display of the Rotation
Correction mode will disappear.
•
•
•
•
1
2
3
4
XV-Z17000EUS.indb26XV-Z17000EUS.indb26 2010/12/1711:16:232010/12/1711:16:23

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
