Sharp XV-Z17000 User Manual

Useful Features
-39

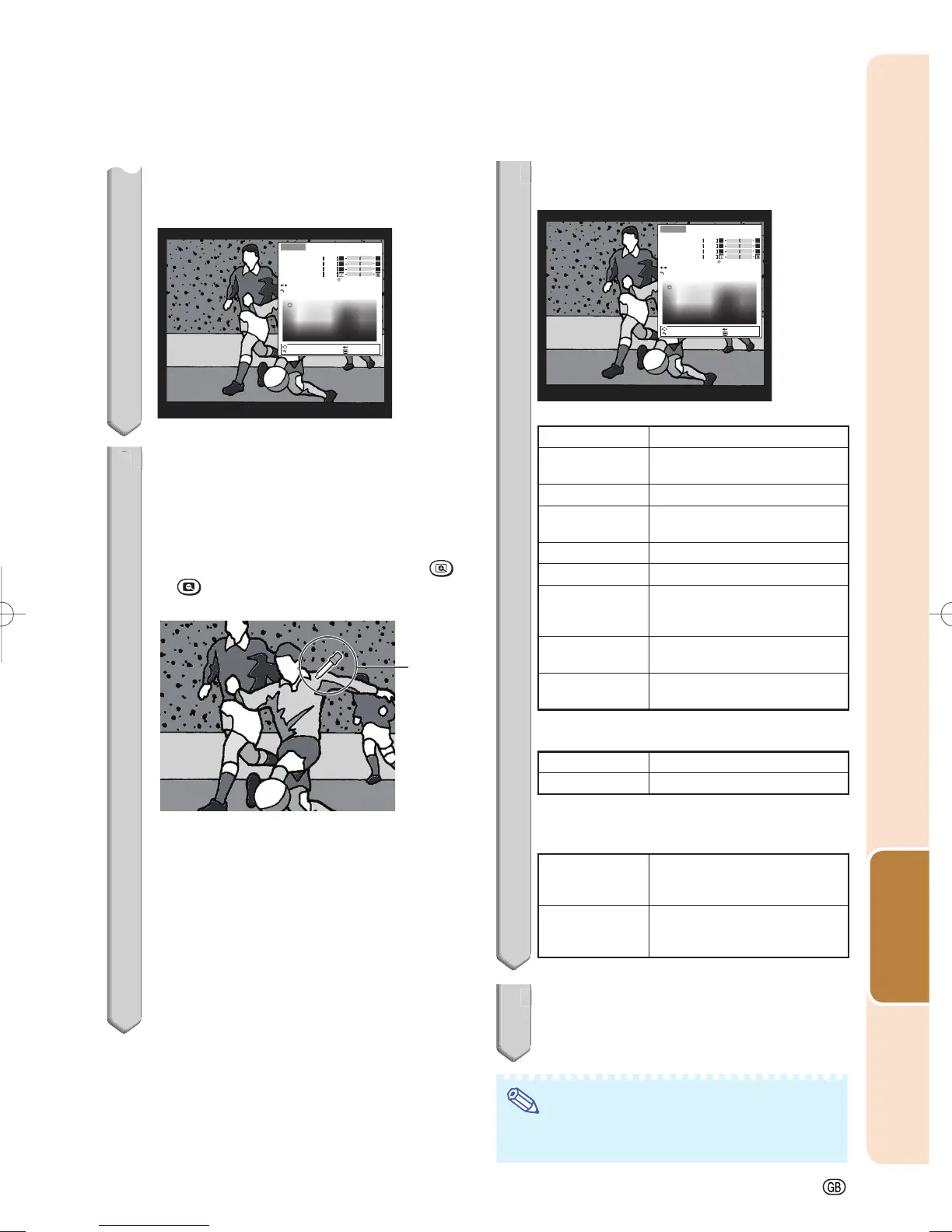

If there is data for the stored corrected
color, the C.M.S. color adjustment screen
is displayed. (Go to step 3.)
C.M.S.1
Select Color
Hue
Saturation
Value
Effect
C.M.S.1 On
Reset
Return
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
2
Use the picker and select the color
of the projected image to correct.
The picker can be operated by ad-
justment buttons (P/R/O/Q) on the
remote control.
By enlarging the projected image using
or
MAGNIFY, more fi ne adjustment can
be performed.
Picker
By continuing to press the adjustment
buttons (P/R/O/Q), the picker moves
rapidly.
After selecting the color of the projected
image to correct, press ENTER. The
C.M.S. color adjustment screen is
displayed. (Go to step 3.)
•
•
•
2
Menu operation ⇒ Page 35
3
Set or adjust each item in the C.M.S.
color adjustment screen.
C.M.S.1
Select Color
Hue
Saturation
Value
Effect
C.M.S.1 On
Reset
Return
SEL./ADJ.
RETURN
ENTER
END
0
0
0
0
C.M.S. color adjustment screen:
Selectable items Description
Select Color Starts over the selection of the
color to be corrected.
Hue
Sets the hue of the main colors.
Saturation Sets the saturation of the main
colors.
Value
Sets the value of the main colors.
Effect
*1
Specifi es the range of color correction.
C.M.S.1
*2
(or C.M.S.2)
Checks the appearance of the
projected image after above
correction.
Reset
Sets “Hue”, “Saturation”, “Value”,
and “Effect” to their default values.
Return Completes the correction and closes
the C.M.S. color adjustment screen.
*1 To specify the range of color correction, select
“Effect” and press O or Q button.
O button Specifi es smaller range.
Q button Specifi es larger range.
*2 To check the appearance of the projected image,
select “C.M.S.1” (or “C.M.S.2”) and set to “On”
or “Off”.
On The appearance of the projected
image after above color adjustment
refl ected can be checked.
Off The appearance of the projected
image in former color adjustment
can be checked.
4
To complete the C.M.S. color
adjustment, select “Return” and
press ENTER.
Note
• The C.M.S. color adjustment can be made to
one color each in “C.M.S.1” and “C.M.S.2”.
3
4
XV-Z17000EUS.indb39XV-Z17000EUS.indb39 2010/12/1711:16:312010/12/1711:16:31

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
