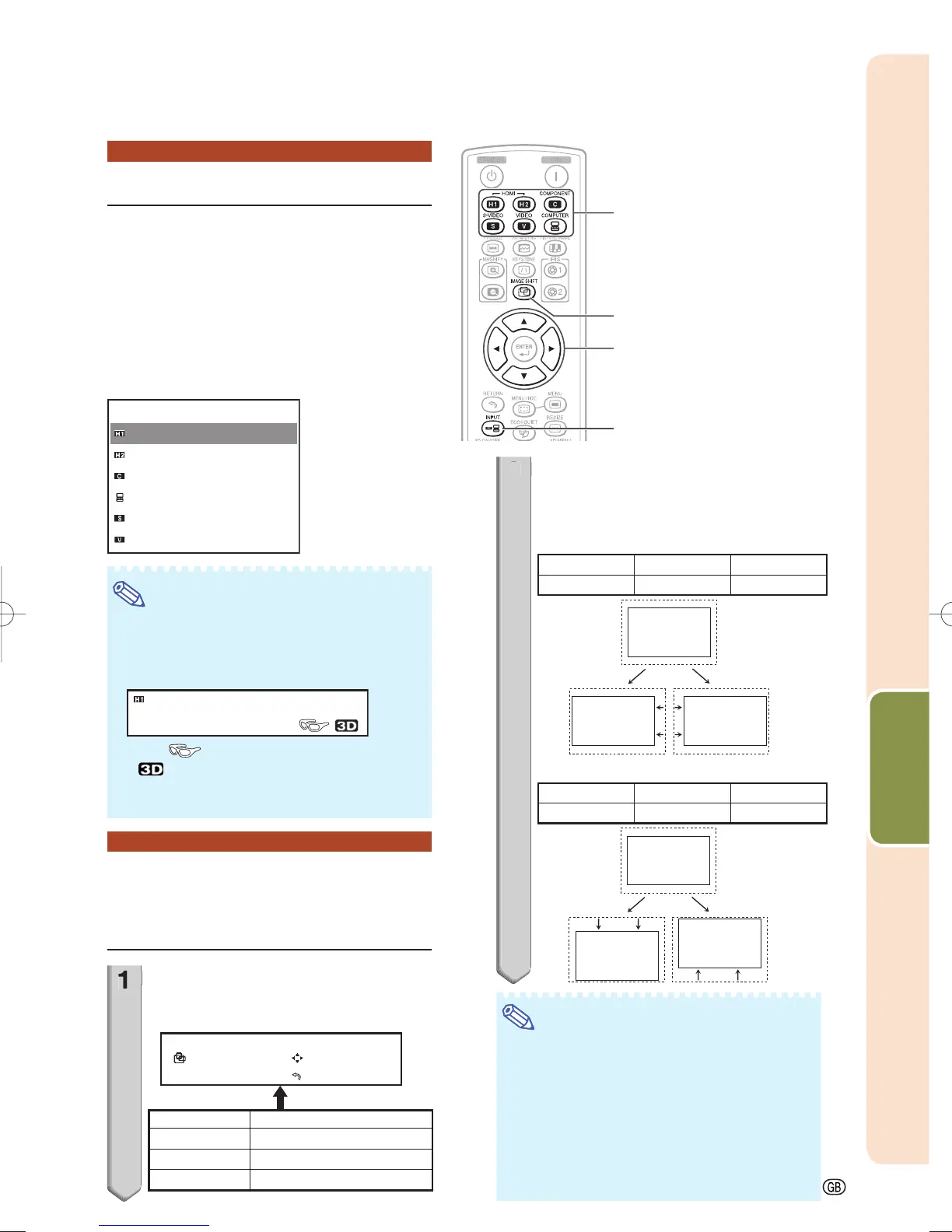

Sharp XV-Z17000 User Manual

Basic Operation
-27
Switching the Input Mode
Select the appropriate input mode for the connected
equipment.
Press HDMI1, 2, COMPONENT,
S-VIDEO, VIDEO or COMPUTER on the
remote control to select the input mode.
When you press INPUT on the projector or on
the remote control, the INPUT list appears.
Press P/R to switch the INPUT mode.
INPUT
HDMI1
HDMI2
COMPONENT
COMPUTER
S-VIDEO
VIDEO
INPUT list
Note
When you switch the INPUT mode, the image as
shown below will be displayed in the upper right
corner of the screen. (You can confi rm the selected
input mode and information on the input signal.)
HDMI1
YPbPr
1080P
When is displayed, “3D” is set to “On”.
If is displayed, it means that a 3D image
signal that can be automatically detected is
being input.
Adjusting the Vertical and
Horizontal Position of the
1
Press IMAGE SHIFT to enter the
image shift mode.
The image shift menu guide appears.
ADJUST
RESET
END
IMAGE SHIFT
V: 0
H: 0
Selectable buttons Description
END  IMAGE SHIFT
Exits the image shift mode.
ADJUST  P/R/O/Q
Adjusts the image shift.
RESET  RETURN
Returns to a default setting.
•
•
•
•
•
1
2
Press P/R/O/Q to adjust the
vertical and horizontal position
of the image.
H-Image Shift
Selectable items
\ button | button
H-Image Shift Leftward Rightward
| button
\ button
V-Image Shift
Selectable items
" button ' button
V-Image Shift Downward Upward
' button" button
Note
To return to the default setting, press
RETURN when the image shift menu guide
is still on the screen.
The adjustable range of the image shift may
vary depending on:
the Resize mode
the Picture mode
the input signal resolution
the input 3D signal type
•
•
-
-
-
-
2
INPUT button
HDMI1, 2, COMPONENT,
S-VIDEO, VIDEO, COMPUTER
buttons
IMAGE SHIFT button
Adjustment buttons
(P/R/O/Q)
XV-Z17000EUS.indb27XV-Z17000EUS.indb27 2010/12/1711:16:242010/12/1711:16:24

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
