Sharp XV-Z17000 User Manual

-52

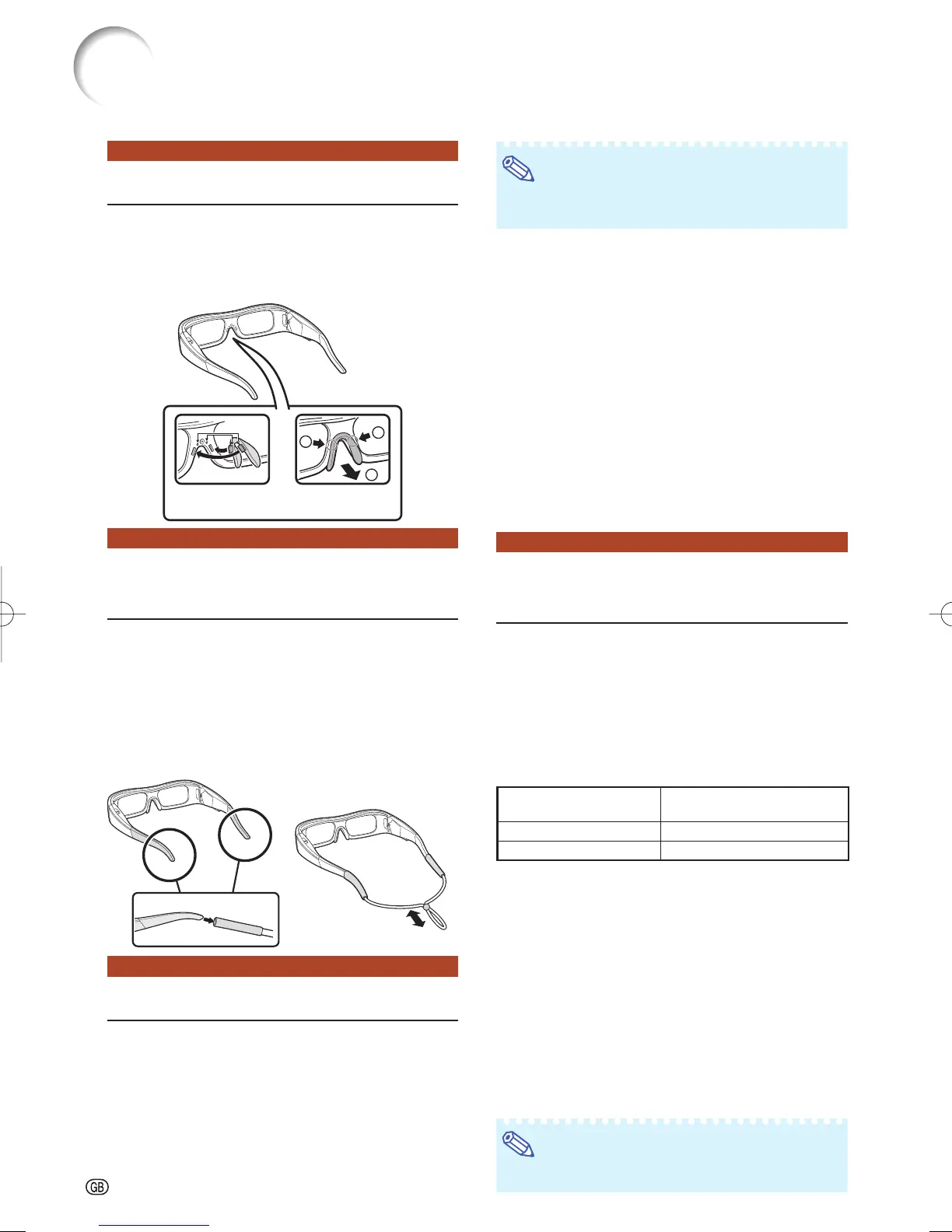

Attaching the Nose Pad
Attach either of the supplied nose pads as
needed (such as when the glasses do not fi t
properly). The glasses come with a large and
small nose pad.
2
1
1
Attaching
the nose pad
Removing
the nose pad
Attaching the 3D Glasses
Band
Attach the supplied 3D Glasses band strap as
needed (such as when the glasses do not fi t
properly).
Insert the ends of the 3D Glasses into the 3D
Glasses band until they are secure.
• Pull the cord stopper on the strap to adjust
the strap length.
Using the 3D Glasses
Turning On/Off the Power
Turn on the power of the 3D Glasses.
• Press the power button for at least 2 seconds.
• The LED light blinks 3 times.
Turn off the power on the 3D Glasses.
• Press the power button for at least 2 seconds.
• The LED light lights for 2 seconds.
Note
• When the battery power is low, the LED light
blinks 6 times after the power is turned on.
Switching to 3D and 2D Mode
When viewing 3D images, you can press the
power button to switch between 2D and 3D
modes. This is useful when several people are
viewing the same 3D images with some people
wanting to watch in 3D and some people want-
ing to watch in 2D.
Viewing 2D images
When you press the power button twice while viewing
3D images, the LED light blinks 2 times and the 3D
images switch to 2D images.
Viewing 3D images
When you press the power button twice while viewing
2D images, the LED light blinks 3 times and the 2D
images switch to 3D images.
Usage Range of the 3D
Glasses
An infrared signal sent from the projector is re-
fl ected onto the screen. The 3D Glasses operate
by receiving the refl ected infrared signal.
The 3D Glasses turn off automatically after 3
minutes if no signal is received.
The operating range of the 3D Glasses is shown in the
table below.
“IR Emitter Level” setting
Operating range
(distance from the screen)
Normal Approx. 12.3 ft (3.8 m)
High Approx. 18.3 ft (5.6 m)
(For details of the “IR Emitter Level”, see page 55.)
• Be sure to stay within the operating range when
watching 3D images.
Otherwise, the 3D Glasses
may not work properly and you may not be able to
enjoy the 3D images.
• The operating range in the table above is the aver-
age value when using a screen with a screen gain of
1.0 and when viewing in front of the screen.
The operating range may vary depending on your
view position and/or the usage condition (e.g., Gain
level of screen).
(The operating range decreases when you view the
screen at an angle.)
Note
• The IR (infrared) emitter lights in 3D mode.
Enjoying 3D Image Viewing (Continued)
XV-Z17000EUS.indb52XV-Z17000EUS.indb52 2010/12/1711:16:382010/12/1711:16:38

Sharp XV-Z17000 Specifications

General

Matrix size	0.65 \
Projection distance	1.3 - 15.7 m
Vertical scan range	43 - 85 Hz
Horizontal scan range	15 - 110 kHz
Projection technology	DLP
Contrast ratio (dynamic)	40000:1
Contrast ratio (typical)	-
Screen size compatibility	40 - 500 \
Projector native resolution	1080p (1920x1080)
Aspect ratio	16:9
RS-232 ports	1
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1080 pixels
Focus	Manual
Zoom capability	Yes
Focal length range	21 - 24.2 mm
Aperture range (F-F)	2.5 - 2.7
Lamp power	250 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Supported video modes	1080i, 1080p, 480i, 480p, 540p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 640 x 480 (VGA), 800 x 600 (SVGA)
Built-in speaker(s)	No
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	- dB
Noise level (economic mode)	23 dB
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	8.3 W
Power consumption (typical)	353 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	335 mm
Width	400 mm
Height	100 mm
Weight	5800 g
