5.39 Multi-Function Output Terminal Positive/Negative Logic(P.88)
P.88
“
Multi-function output terminal positive/negative logic(P.88) ”
● The function is bits-setting, if the bit is 1, it means that the act of multi-function output terminal is
negative logic; otherwise, it means that the act is positive logic.
Parameters Factory Setting
Setting Range Remarks
88 0 0~3 ---

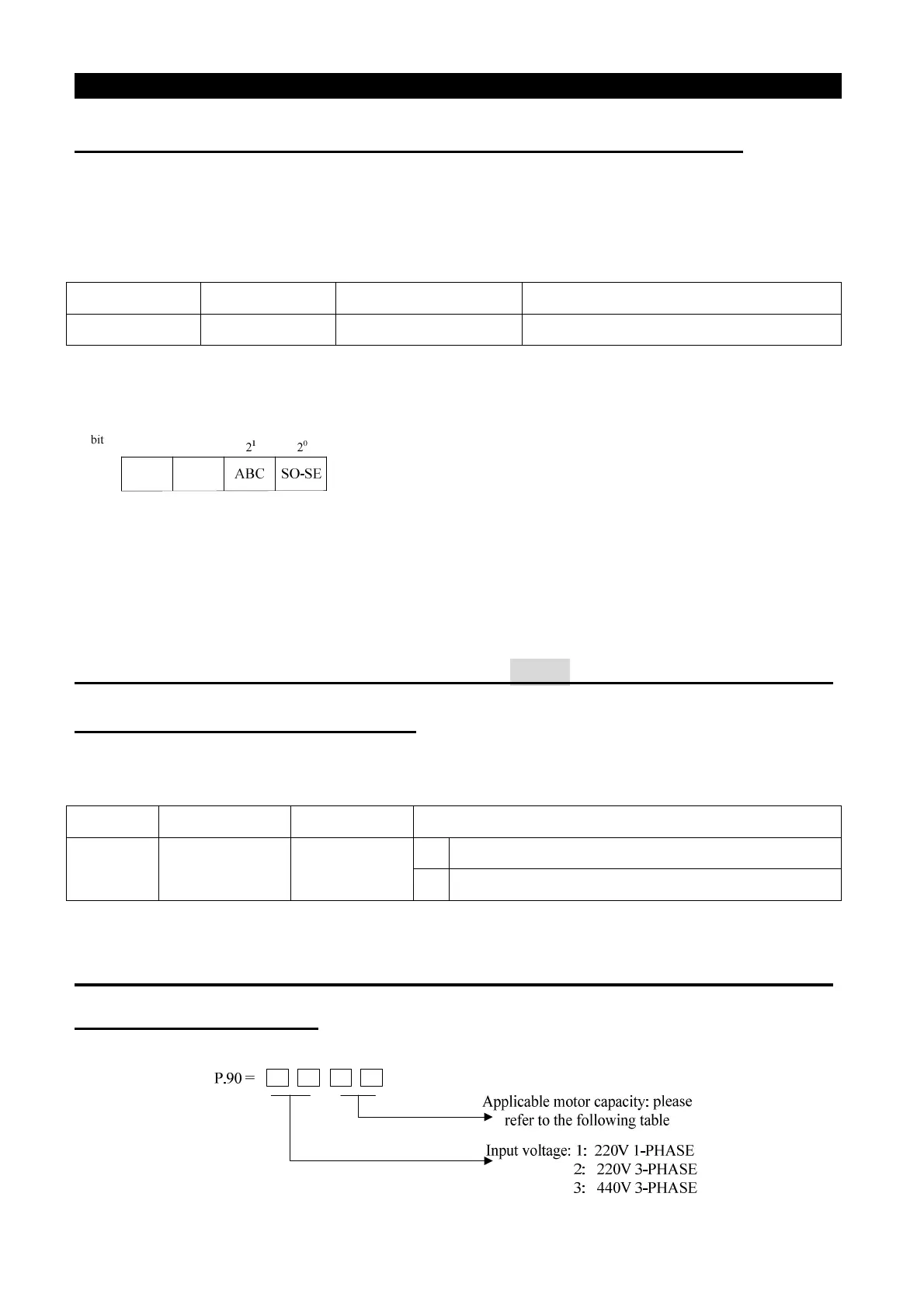

The definiton of each P.88 bits are as follows :
For example : P.85=0(inverter detects when running), if set positive logic output bit as 0, when
inverter runs, multi-relay is on. when inverter stops, multi-relay is off ; otherwise, if set negative
logic bit as 1, when inverter runs, multi-relay is off,and when the inverter stops, multi-relay is on.
5.40 Slip Compensation Coefficient (P.89) V/F
P.89 “Slip compensation coefficient”
● Setting this parameter appropriately enables the rotation speed of the motor under rated current to
be closer to the set rotation speed.
Parameter
Factory Setting
Setting Range
Remarks
89 0 0~10
0
Slip compensation is forbidden
10
Compensation value is 3% of the target frequency
5.41
The Inverter Model (P.90)
P.90 “The inverter model”
● P.90 is used to show the type and capacity of inverter, and the parameter can only be read.
