Appendix 5 Optional Equipment

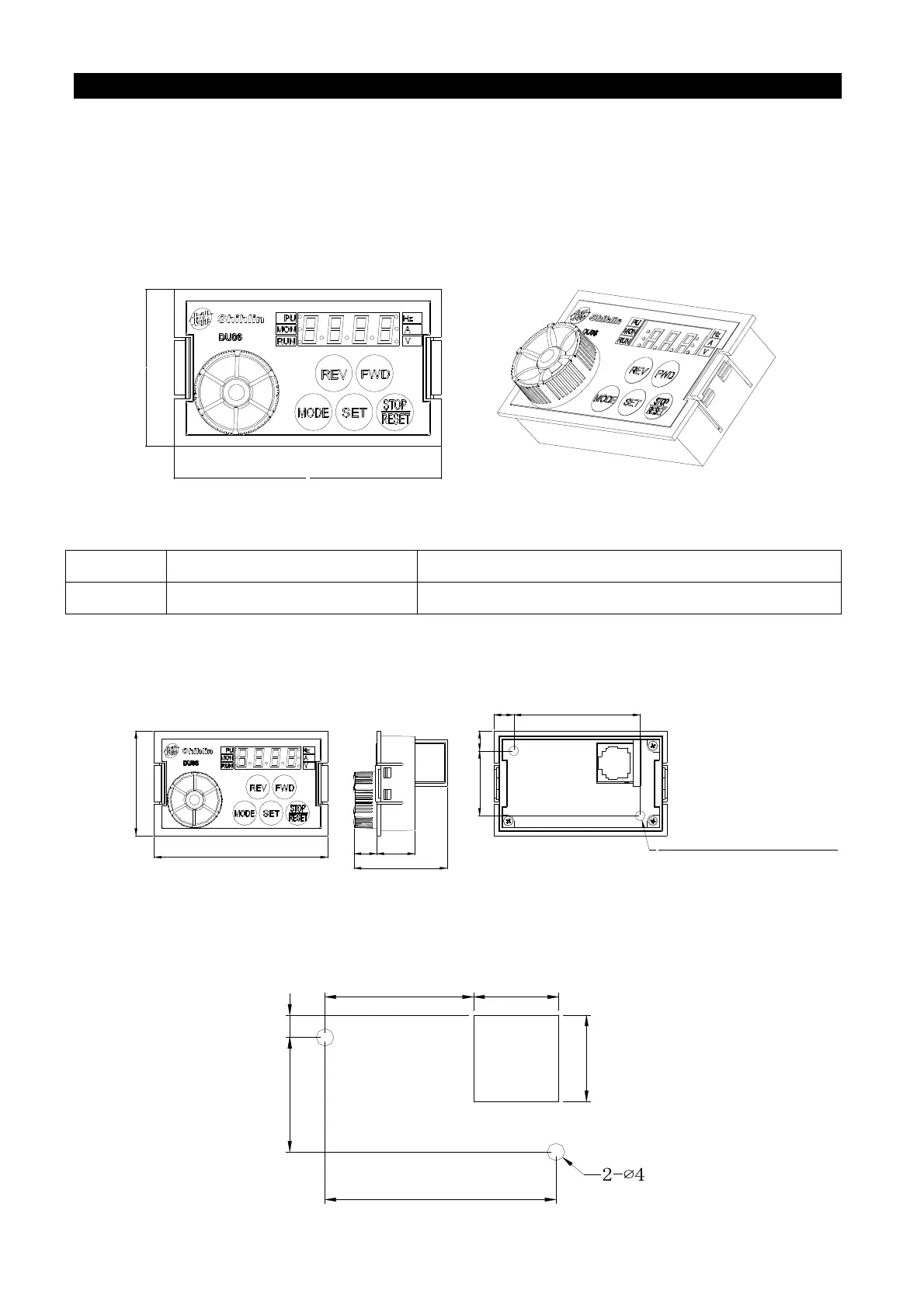

Operation panel, operation panel installation dimensions and transmission cable:
1. DU06 operation panel
72.0000
42.4000
Description on the ordering code:
NO. Model Name
1 LNKDU06 DU06 operation panel
2. Outline drawing of DU06：
8.1
8.3
Effective depth of screws hole 2.9mm
2×M3
26.2
52.4
38.65
9.45 15.8
42.4
72
<Outline drawing>
3. Screw installation of DU06：
19.3
52.4
19.8
26.2
33.7
5.1
<Screw installation:panel cutting dimension drawing>
Cutout
Area
