Parameter Description
Parameter Description
109
The applicable motor capacity is as following table:
Value (value of the two
low-order bits of P.90)
capacity (kw)
Value (value of the two
low-order bits of P.90)
capacity (kw)
2 0.4 3 0.75
4 1.5 5 2.2
6 3.7 7 5.5

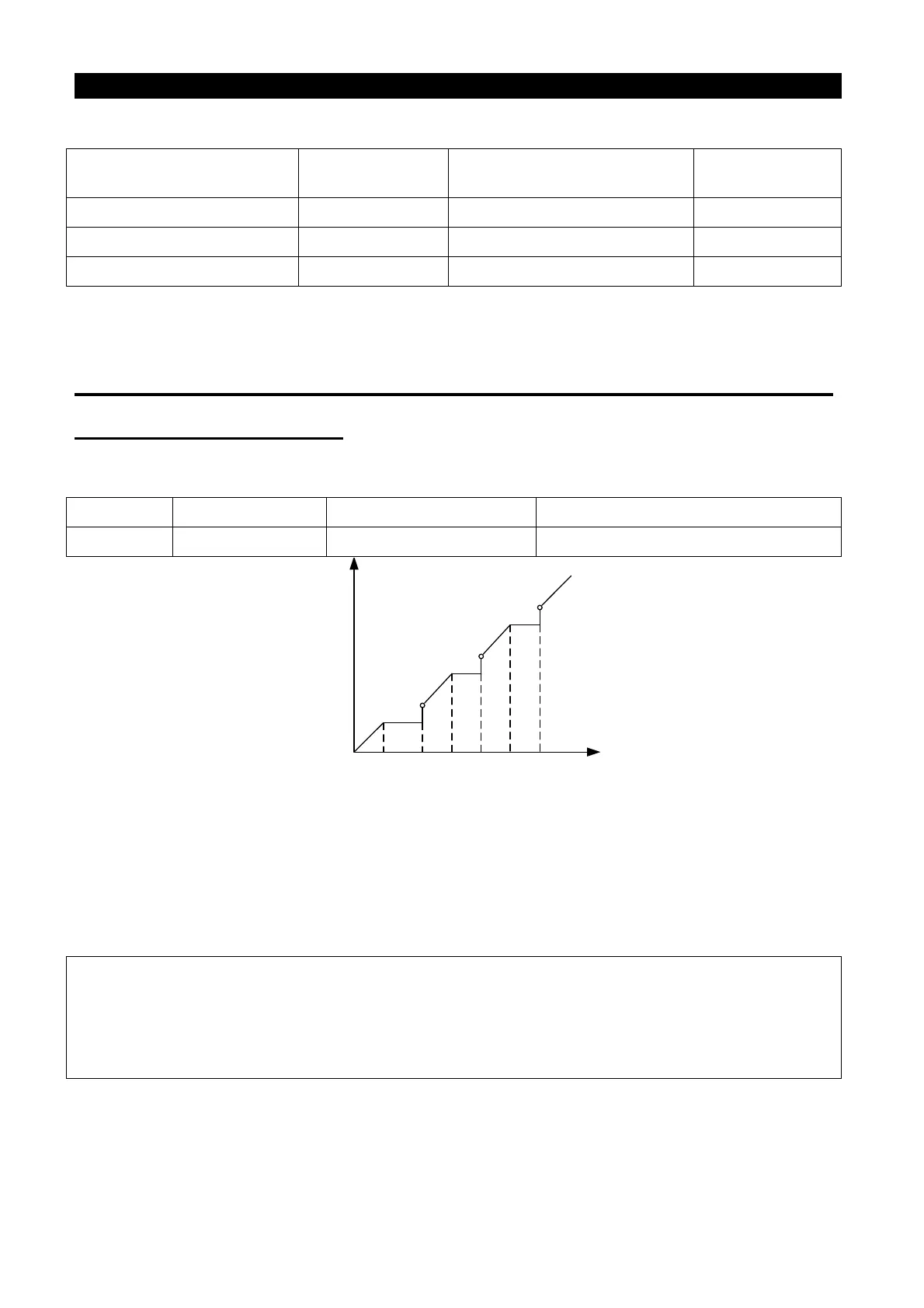

5.42 Frequency Jump (P.91~P.96)
P.91~P.96 “Frequency jump”
● To avoid the system mechanical resonance frequency, three sets of jump frequencies are presented:
P.91 and P.92 the first set, P.93 and P.94 the second set, and P.95 and P.96 the third set.
Parameter Factory Setting Setting Range Remarks
91~96 9999 0~650Hz, 9999 9999: invalid
P.91 P.92 P.93 P.94 P.95 P.96
Output
frequency
(Hz)
<Setting>
• For example: Suppose that P.91 = 45 and P.92 = 50
If the target frequency≦45Hz, the steady output frequency = the target frequency.
If 45Hz＜target frequency≦50Hz, the steady output frequency = 45Hz.
If 50Hz＜target frequency, the steady output frequency = the target frequency.
Note: 1. During acceleration/deceleration, the output frequency of the inverter will still pass through the jump
frequency.
2. If P.91=9999 or P.92=9999, the first set of the frequency jump is invalid.
If P.93=9999 or P.94=9999, the second set of the frequency jump is invalid.
If P.95=9999 or P.96=9999, the third set of the frequency jump is invalid.
