5.4 Multi-speed (P.4~P.6, P.24~P.27, P.142~P.149)
P.4 “Speed 1(high speed)”
P.5 “Speed 2(medium speed)”
P.6 “Speed 3 (low speed)”
P.24~P.27 “Speed 4 to 7”
P.142~P.149 “Speed 8 to 15”
Parameter Factory Setting Setting Range Remarks
4 60Hz 0~650Hz ---
5 30Hz 0~650Hz ---
6 10Hz 0~650Hz ---
24~27 9999 0~650Hz, 9999 9999, is not chosen
142 0Hz 0~650Hz ---
143~149 9999 0~650Hz, 9999 9999, is not chosen
<Setting>
• If all the setting values of P.24~P.27 and P.142~P.149 are not equal to 9999, the 16-speed operation
will be activated. It means that there are a total of 16 kinds of speeds from the combination of RL,

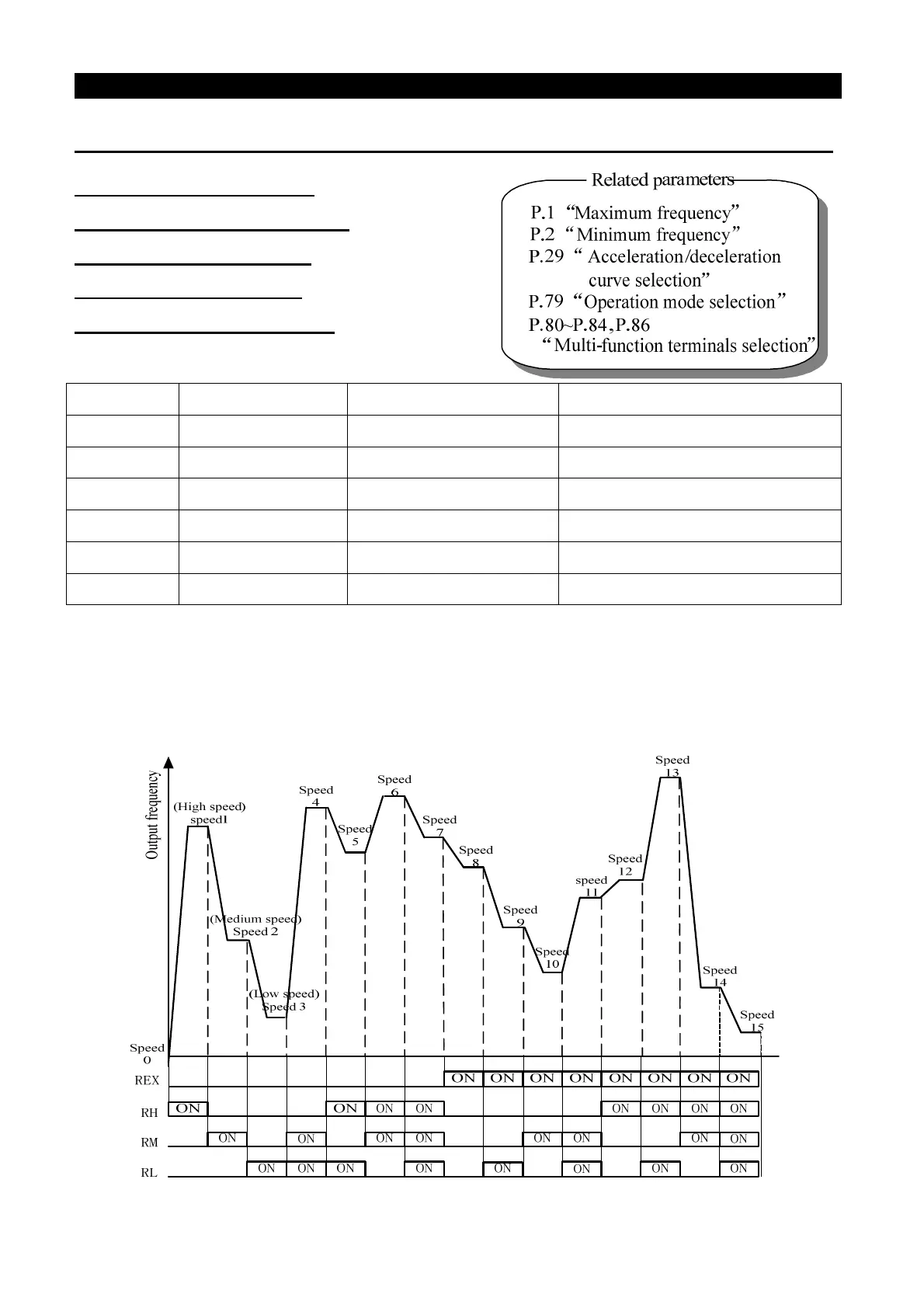

RM, RH and REX. For the setting of the target frequency of the inverter, please refer to the figure
below.
To Next Page
