Shihlin electric SS2 Series User Manual

Parameter Description
Parameter Description
122

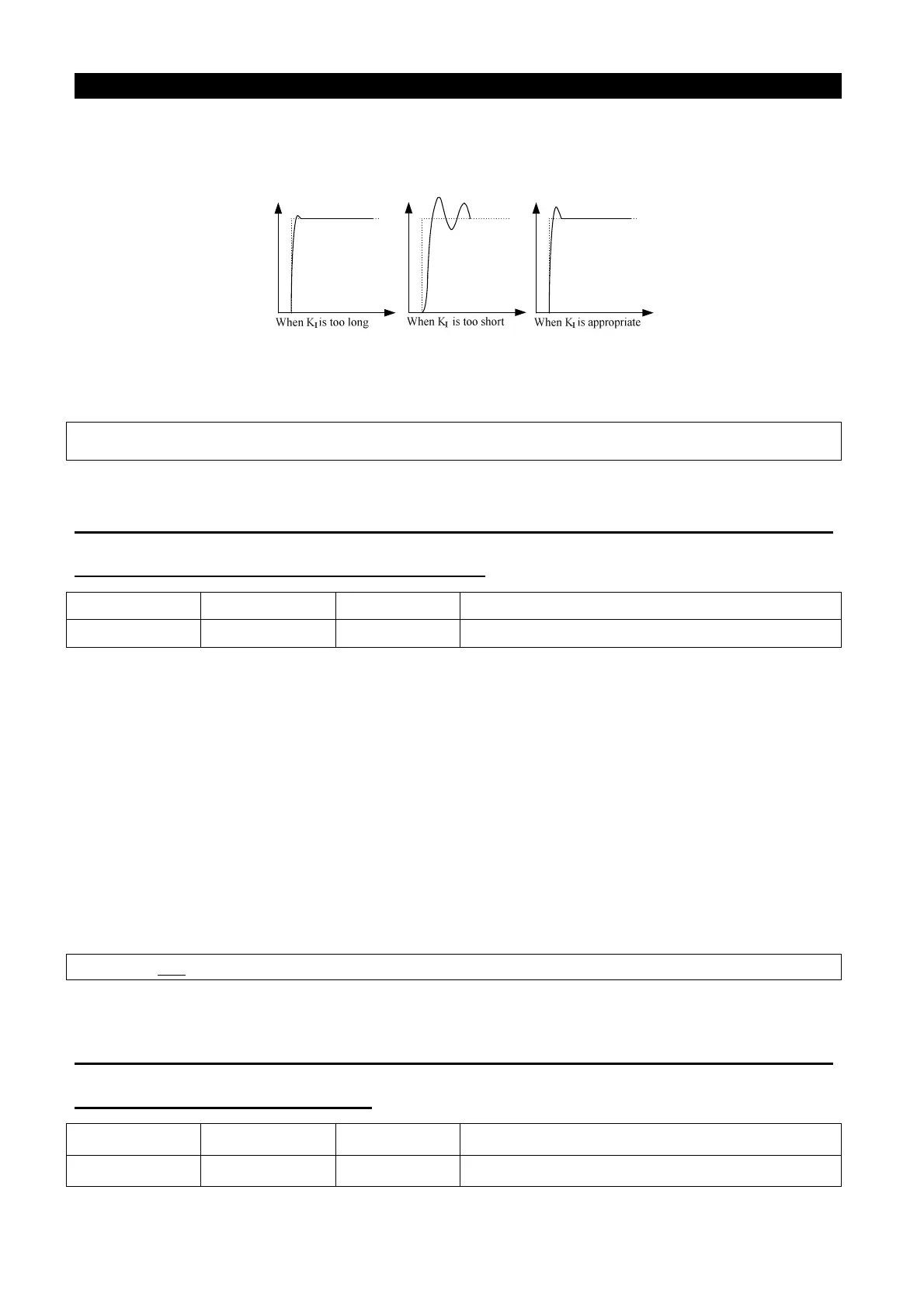

(2)Target and feedback
do not become equal ---Decrease Integration time (K
I
=P.173)
become equal after unstable vibration ---Increase Integration time (K
I
=P.173)
(3)Even after increasing K
P
, response is still slow ---Increase D-gain (K
D
=P.174)
It is still unstable ---Decrease D-gain (K
D
=P.174)
Note:
When external 4
-
5 analog s
ignal is given as pressure,
please refer to the parameter P.17; Setting
frequency
range for external analog signal
,
please refer to parame
ter P.38,
P.39,
P.73.
5.54 4-5 Terminal Disconnection Handling (P.184)
P.184 “4-5 terminal disconnection handling”
Parameter Factory Setting Setting Range Remarks
184 0 0~3 ---
<Setting>
• When P.184=0, this function is useless. If the terminal 4-5 is disconnected, the inverter will slow
down to 0Hz. If it is connected to terminal 4-5 again, the inverter will accelerate to the
corresponding frequency.
• When P.184=1, the keyboard panel should be shown “AErr” if the terminal 4-5 is disconnected, and
the inverter will slow down to 0Hz. If it is connected to terminal 4-5 again, the alarm code will
disappear and the inverter will be accelerated to the current corresponding to the frequency.
• When P.184=2, the keyboard panel should be shown “AErr” if the terminal 4-5 is disconnected. The
inverter will be stopped immediately and need to be reset.
• When P.184=3, the keyboard panel should be shown “AErr” if terminal 4-5 is disconnected. The
frequency before disconnecting from the inverter will operate continuously. Reconnect the line and
the alarm will go off.
Note: When P.17=1 and 2, terminal 4-5 is set by voltage, and this function will be useless.
5.55 Proportion Linkage Function
（
P.185
）
P.185 “Proportion linkage gain”
Parameter Factory Setting Setting Range Remarks
185 0 0~100% ---
