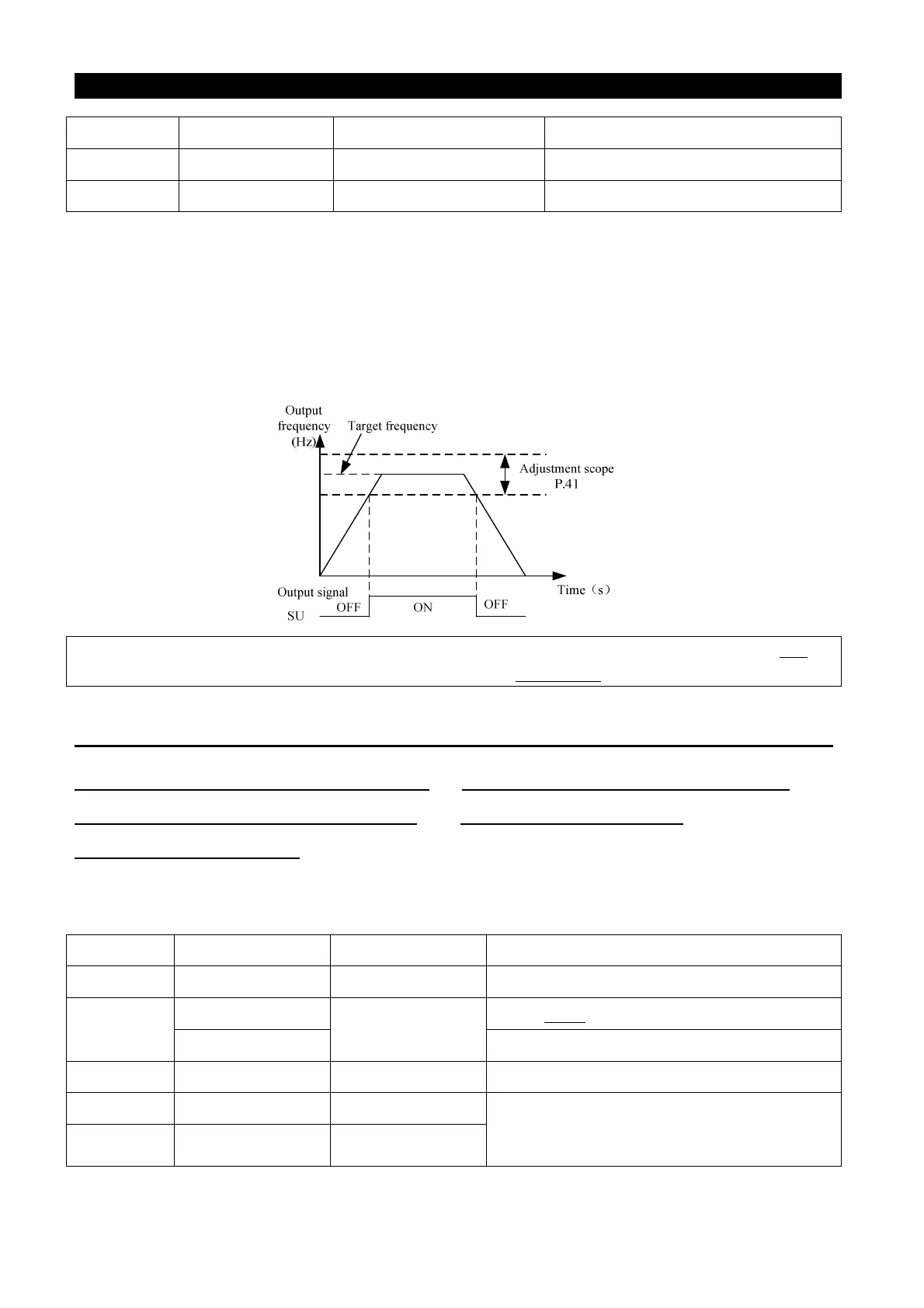

Parameter Description
Parameter Description
91
Parameter Factory Setting Setting Range Remarks
42 6Hz 0~650Hz ---
43 9999 0~650Hz, 9999 9999: same as P.42 setting
<Setting>
• If P.42=30 and P.43=20, then a signal (FU) is output when the forward rotation output frequency
exceeds 30Hz or when the reverse rotation output frequency exceeds 20Hz.
• If P.42=30 and P.43=9999 (the default value), then a signal (FU) is output when the forward or
reverse rotation output frequency exceeds 30Hz.
Note: In this section, FU is the function names of the multi-function output terminals. Please refer to P.40 for
function selection and features. About wiring, please refer to Section 3.5.6.
5.24 AM Terminal (P.54~P.56, P.190, P.191)
P.54 “AM terminal function selection” P.55 “Frequency display reference”
P.56 “Current monitoring reference” P.190 “AM output bias”
P.191 “AM output gain”
● Between terminal AM and terminal 5, an analog meter can be connected to indicate the output
current value or the output frequency.
Parameter Factory Setting
Setting Range Remarks
54 0 0~5 ---
55
50Hz
0~650Hz
When P.189=1
60Hz When P.189=0
56 Rated current 0~500A ---
190 0 0~8192
Parameters P.190 and P.191 are the
calibrating values. Therefore the default
value for each machine may differ slightly.
191 600 0~8192
<Setting>
