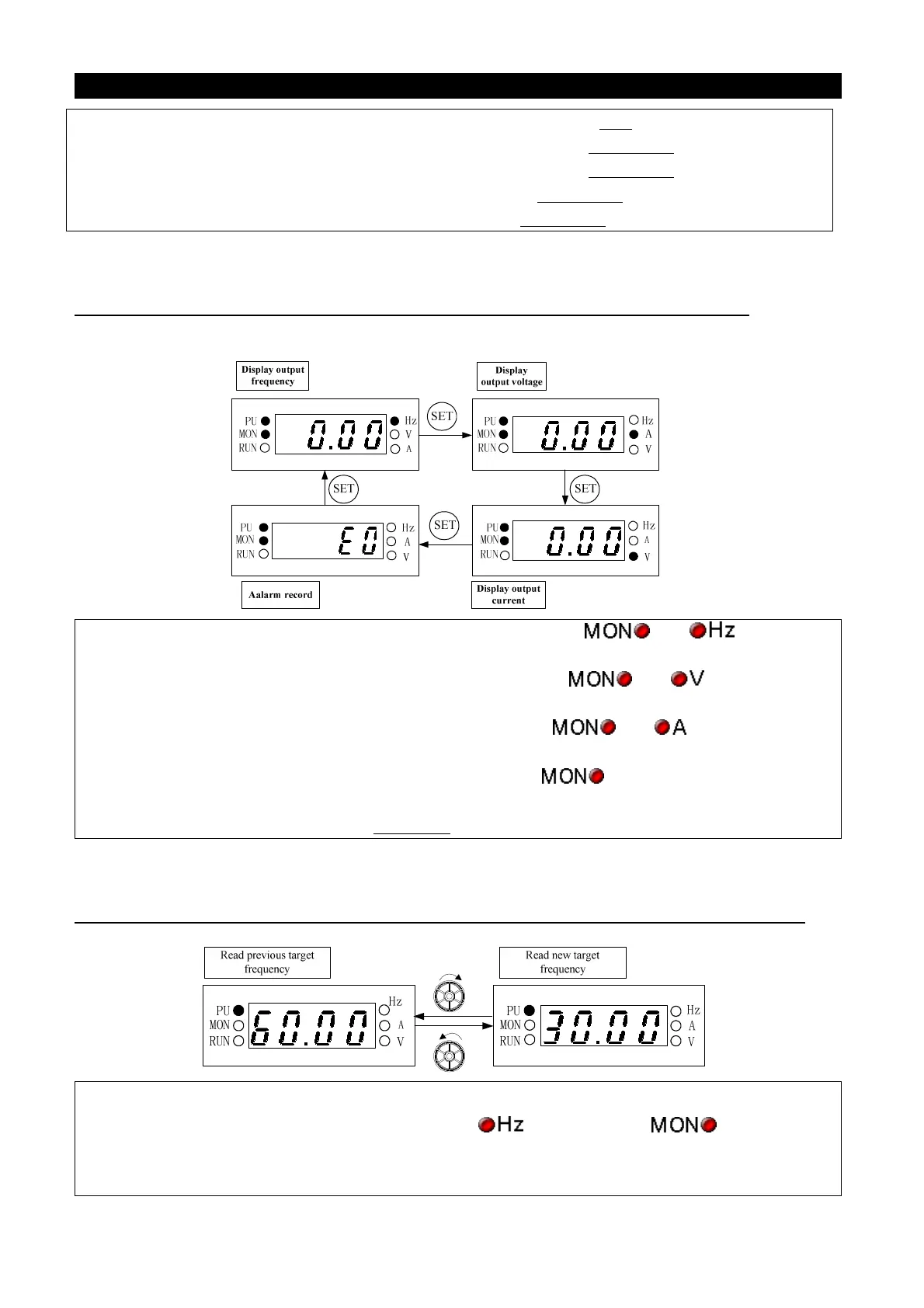

4.1.3 Operation flow chart for the monitoring mode with operation panel
● PU mode as an example:
Note: 1. At the monitoring output frequency mode, the indicating lamp of and will be lit up,
and at the same time the screen will display the current output frequency.
2. At the monitoring output voltage mode, the indicating lamp of and will be lit up, and
the screen will display the current output voltage value.
3. At the monitoring output current mode, the indicating lamp of and will be lit up, and the
screen will display the current output current value.
4. At the browsing alarm record mode, the indicating lamp of will be lit up, and the screen will
display the current alarm code.
5. For the alarm codes, please refer to Appendix 2.
4.1.4 Operating flow chart for the frequency setting mode with operation panel
Note: 1. When running the inverter, the frequency can be changed by the knob on the operation panel.
2. At the frequency setting mode, the indicating lamp will be lit up, but will be off.
3. When setting up the frequency at the PU mode, the set value can not exceed the upper frequency. When
high frequency is needed, change the upper frequency first.
Note: 1. For detailed operating flow at monitoring mode, please refer to Section 4.1.3.
2. For detailed operating flow at frequency setting mode, please refer to Section 4.1.4.
3. For detailed operating flow at parameter setting mode, please refer to Section 4.1.5.
4. For detailed operating flow at operating mode, please refer to Section 4.1.1.
5. For detailed operating flow at HELP mode, please refer to Section 4.1.6.
To Next Page
