Parameter Description
Parameter Description
54
<Setting>
• If P.14=4, P.19=220V, P.98=5Hz and P.99=10%, the output voltage equals to P.99×P.19=10%×220V=22V when
the inverter is run at 5Hz.
• P.46 The Second Torque Boost is valid if RT is on.

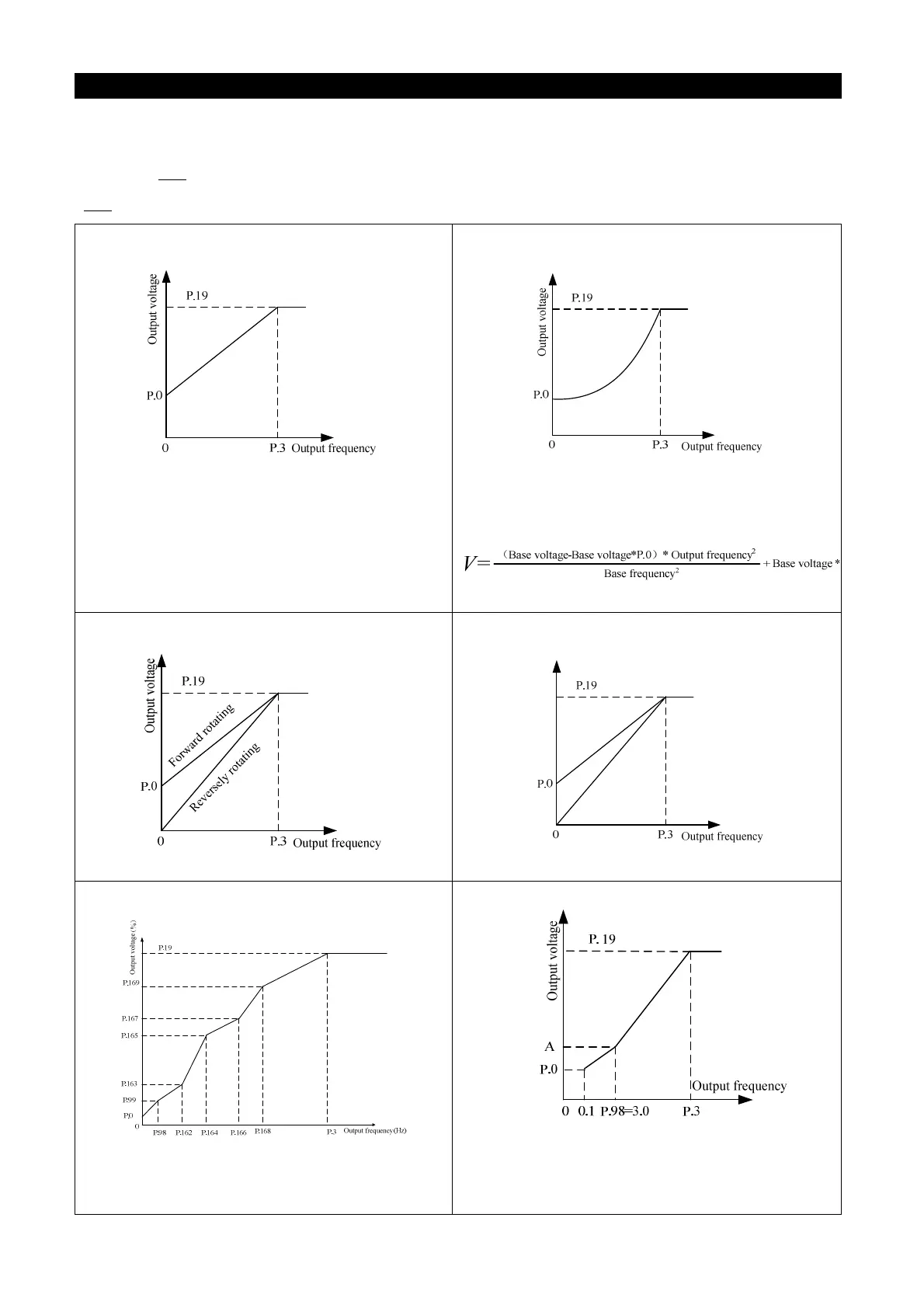

P.14＝0
Applicable to constant torque loads
(conveyor belt, etc.)
P.14＝1
Applicable to variable torque loads
(fans, pumps, etc.)
Curve equationof output voltage and output frequency is:
P.14＝2
Ascending/descending loads
P.14＝3
F
orward rotating
Reversely rotat
i
ng
Output voltage
Ascending/descending loads
P.14＝4
A high startup torque or descending torque is
due to the set values (Note 1).
P.14=5
A is 7.1% when P.14=5.
