SHOWTEC Pixel User Manual

9
Pixel Controller
Product code: 44510
3. Description of the Device
The Pixel Controller is suitable only for indoor installation (e.g. in hotels or theaters, in order to create a
good ambience in a lobby) and it can be used only with the Pixelstrips 20 and 40, Pixeltubes 16 and 32 or
PixelDots. Each controller can handle those devices divided over 4 outputs.
All Pixelstrips/Pixeltubes/PixelDots can be easily daisy-chained and connected to the Pixel Controller with
a CAT cable. The Pixel Controller can be controlled with DMX, Art-Net and Kling-Net. It can also be used
as a stand-alone controller with built-in programs. When using multiple devices, the built-in programs can
be synchronized due to master/slave function.

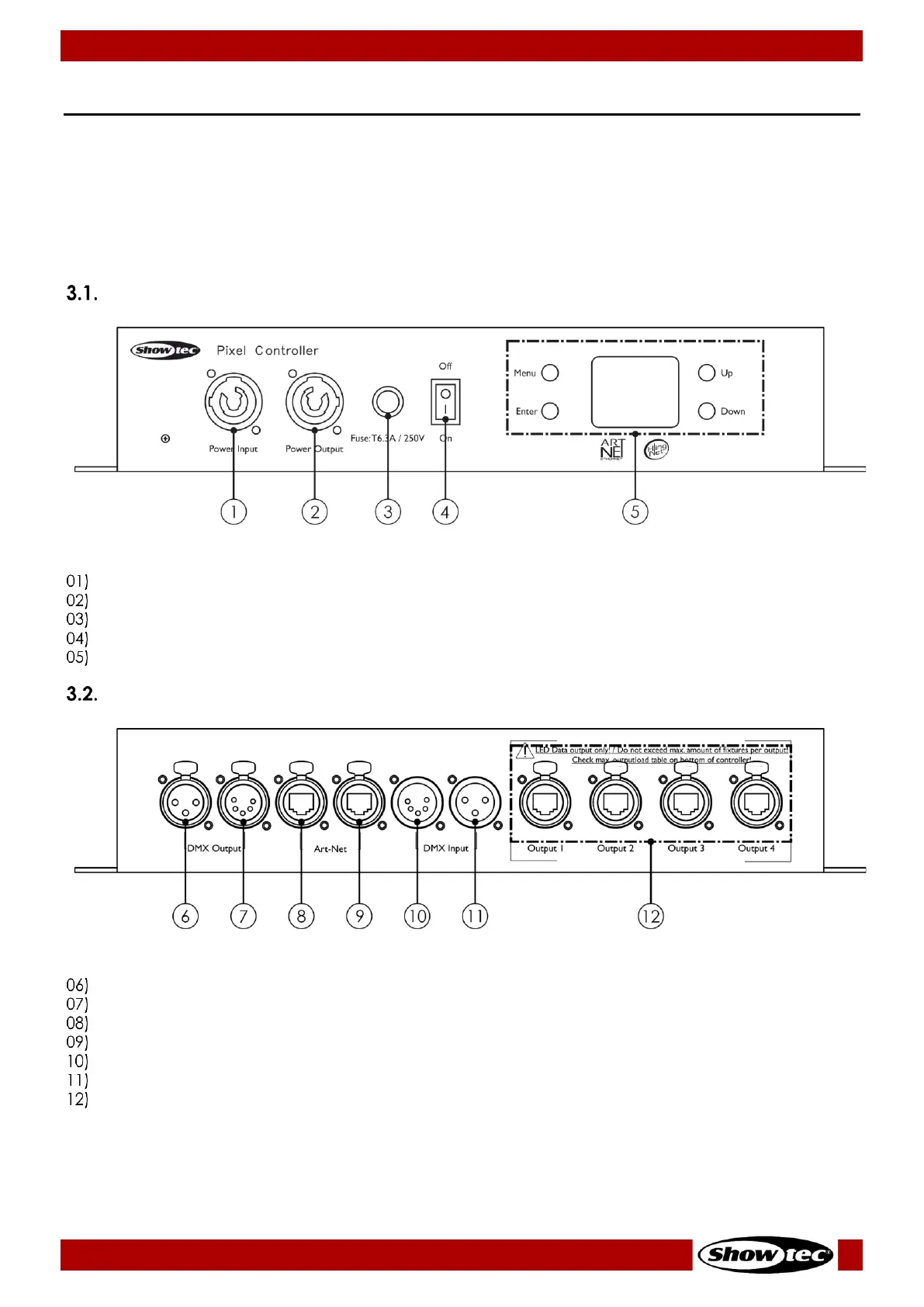

Front View
Fig. 02
Pro power connector (Blue) IN
Pro power connector (Gray) OUT
Fuse T6,3A/250 V
Power switch ON/OFF
OLED display + control buttons
Back View
Fig. 03
3-pin DMX connector OUT
5-pin DMX connector OUT
RJ45 connector Art-Net IN/OUT
RJ45 connector Art-Net IN/OUT
5-pin DMX connector IN
3-pin DMX connector IN
Dedicated RJ45 Pixelstrip/Pixeltube/Pixeldot connectors OUT 1–4

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
