SHOWTEC Pixel User Manual

49
Pixel Controller
Product code: 44510
240 Channels (DMX and Art-Net)
240 CH
Function
Value
Setting
1
Red (PixelDot 1, output 1)
000–255
From low to high intensity (0–100 %)
2
Green (PixelDot 1, output 1)
000–255
From low to high intensity (0–100 %)
3
Blue (PixelDot 1, output 1)
000–255
From low to high intensity (0–100 %)
4
Red (PixelDot 2, output 1)
000–255
From low to high intensity (0–100 %)
5
Green (PixelDot 2, output 1)
000–255
From low to high intensity (0–100 %)
6
Blue (PixelDot 2, output 1)
000–255
From low to high intensity (0–100 %)
7
Red (PixelDot 3, output 1)
000–255
From low to high intensity (0–100 %)
8
Green (PixelDot 3, output 1)
000–255
From low to high intensity (0–100 %)
9
Blue (PixelDot 3, output 1)
000–255
From low to high intensity (0–100 %)
…

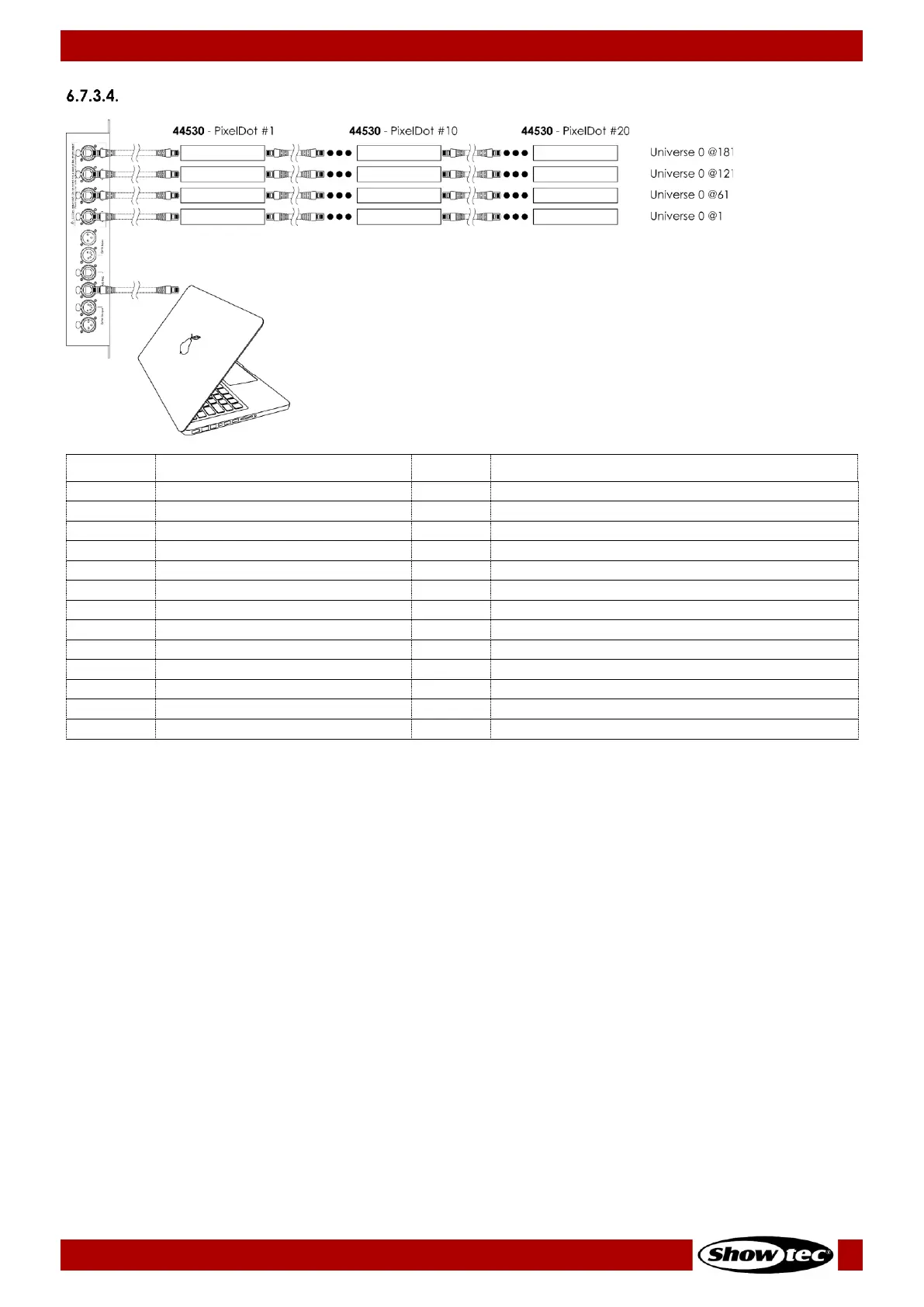

238
Red (PixelDot 20, output 4)
000–255
From low to high intensity (0–100 %)
239
Green (PixelDot 20, output 4)
000–255
From low to high intensity (0–100 %)
240
Blue (PixelDot 20, output 4)
000–255
From low to high intensity (0–100 %)
Note: The 240-channel is available when 20xPixDOT option was selected in the menu.
See 6.6.3.2. Set Output and 6.6.3.3. DMX on page 28 for more information.

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
