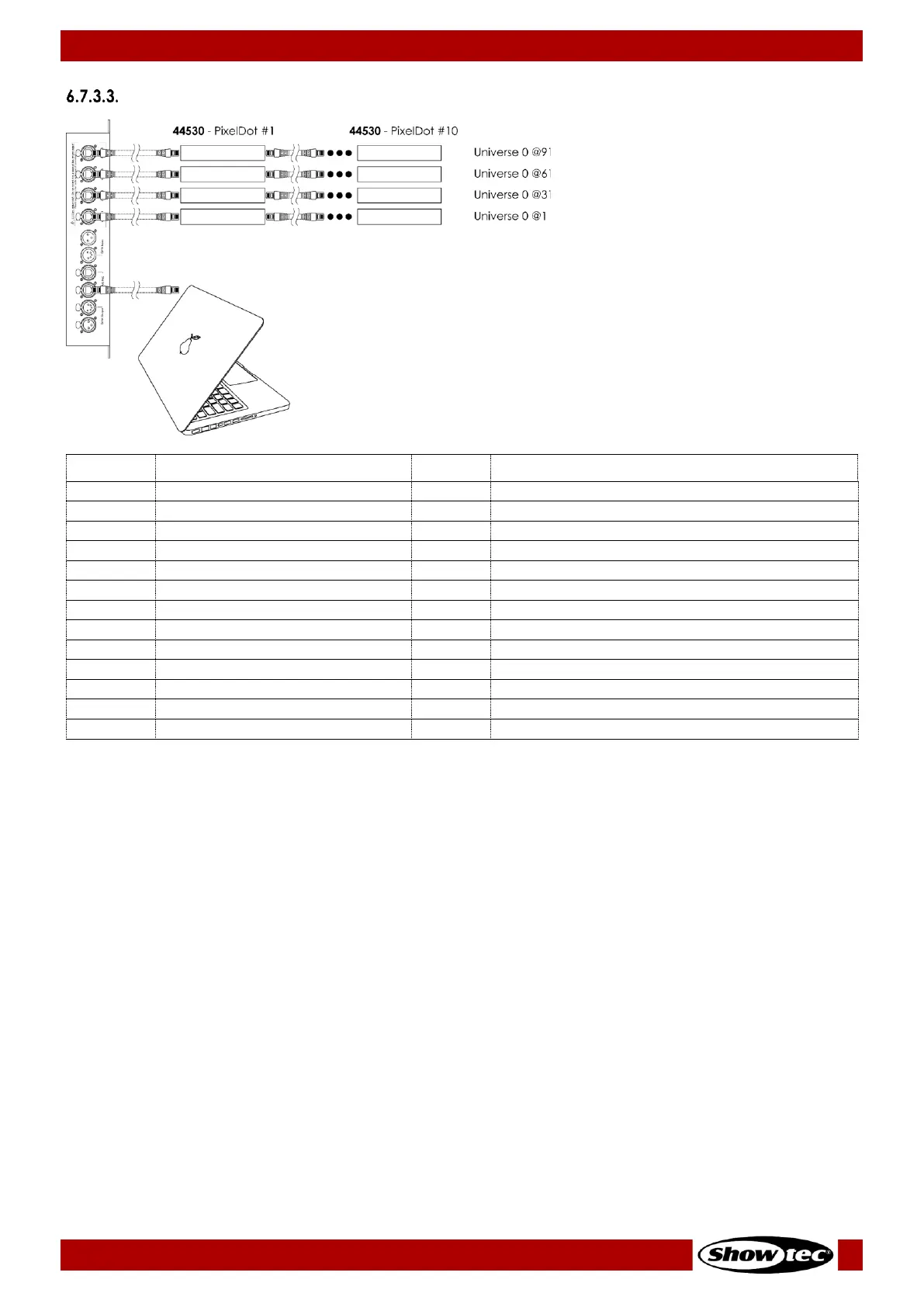

48
Product code: 44510
120 Channels (DMX and Art-Net)
120 CH
Function
Value
Setting
1
Red (PixelDot 1, output 1)
000255
From low to high intensity (0100 %)
2
Green (PixelDot 1, output 1)
000255
From low to high intensity (0100 %)
3
Blue (PixelDot 1, output 1)
000255
From low to high intensity (0100 %)
4
Red (PixelDot 2, output 1)
000255
From low to high intensity (0100 %)
5
Green (PixelDot 2, output 1)
000255
From low to high intensity (0100 %)
6
Blue (PixelDot 2, output 1)
000255
From low to high intensity (0100 %)
7
Red (PixelDot 3, output 1)
000255
From low to high intensity (0100 %)
8
Green (PixelDot 3, output 1)
000255
From low to high intensity (0100 %)
9
Blue (PixelDot 3, output 1)
000255
From low to high intensity (0100 %)
118
Red (PixelDot 10, output 4)
000255
From low to high intensity (0100 %)
119
Green (PixelDot 10, output 4)
000255
From low to high intensity (0100 %)
120
Blue (PixelDot 10, output 4)
000255
From low to high intensity (0100 %)
Note: The 120-channel is available when 10xPixDOT option was selected in the menu.
See 6.6.3.2. Set Output and 6.6.3.3. DMX on page 28 for more information.
