SHOWTEC Pixel User Manual

50
Pixel Controller
Product code: 44510

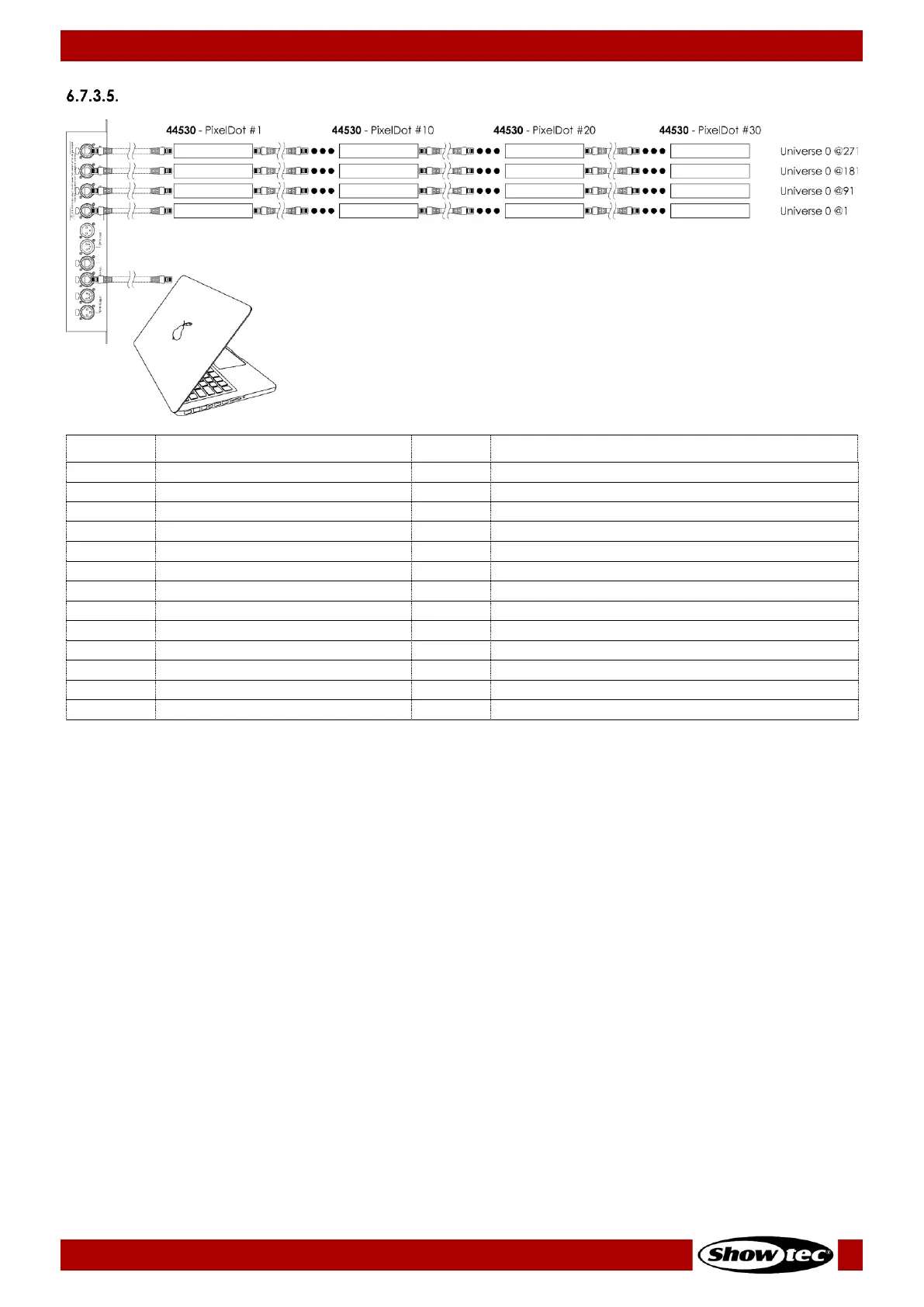

360 Channels (DMX and Art-Net)
360 CH
Function
Value
Setting
1
Red (PixelDot 1, output 1)
000–255
From low to high intensity (0–100 %)
2
Green (PixelDot 1, output 1)
000–255
From low to high intensity (0–100 %)
3
Blue (PixelDot 1, output 1)
000–255
From low to high intensity (0–100 %)
4
Red (PixelDot 2, output 1)
000–255
From low to high intensity (0–100 %)
5
Green (PixelDot 2, output 1)
000–255
From low to high intensity (0–100 %)
6
Blue (PixelDot 2, output 1)
000–255
From low to high intensity (0–100 %)
7
Red (PixelDot 3, output 1)
000–255
From low to high intensity (0–100 %)
8
Green (PixelDot 3, output 1)
000–255
From low to high intensity (0–100 %)
9
Blue (PixelDot 3, output 1)
000–255
From low to high intensity (0–100 %)
…
358
Red (PixelDot 30, output 4)
000–255
From low to high intensity (0–100 %)
359
Green (PixelDot 30, output 4)
000–255
From low to high intensity (0–100 %)
360
Blue (PixelDot 30, output 4)
000–255
From low to high intensity (0–100 %)
Note: The 360-channel is available when 30xPixDOT option was selected in the menu.
See 6.6.3.2. Set Output and 6.6.3.3. DMX on page 28 for more information.

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
