SHOWTEC Pixel User Manual

28
Pixel Controller
Product code: 44510
Set Output
In this menu you can set the output mode.

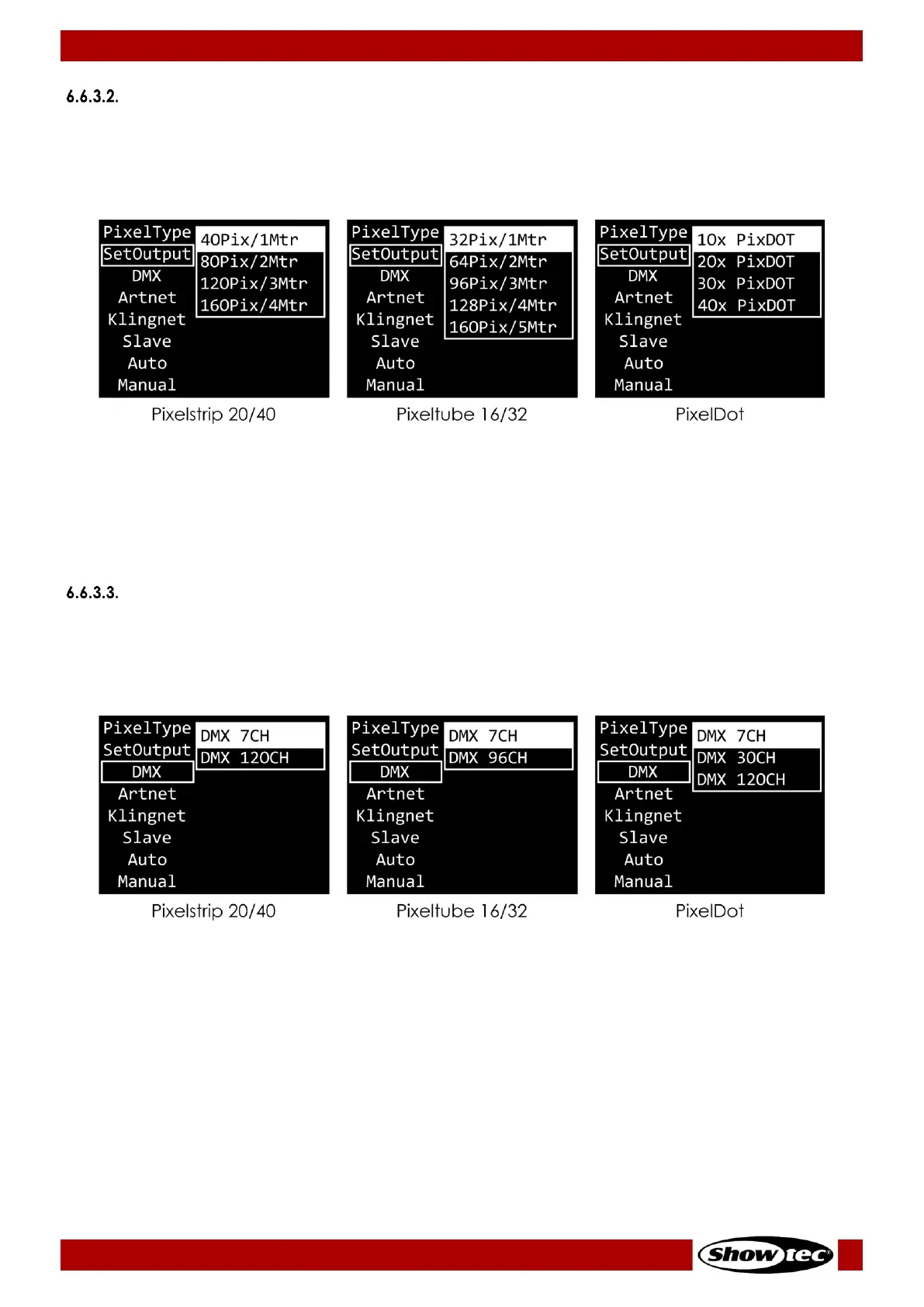

01) When the display shows SETOUTPUT, press the ENTER button to open the menu. The display will show
the available output options, depending on what device was chosen in 6.6.3.1. Pixel Type on page
27:
02) Press the UP/DOWN buttons to select one of the available output modes.
Note: You can connect the Pixelstrip 20/40 (max. 4 m per output), Pixeltube 16/32 (max. 5 m per output)
or PixelDots (max. 40 devices per output) to the Pixel Controller. Your selected output mode
should correspond with the number and/or total length of the connected devices.
03) Press the ENTER button to confirm your choice.
DMX
In this menu you can set the desired DMX channel mode.
01) When the display shows DMX, press the ENTER button to open the menu. The display will show the
available channel modes, depending on what options were chosen in 6.6.3.1. Pixel Type on page 27
and in 6.6.3.2. Set Output on page 28:
02) Press the UP/DOWN buttons to select one of the available channel modes. See 6.7. DMX Channels on
pages 33–51 for more information.
03) Press the ENTER button to confirm your choice.
Note: The Pixel Controller does not automatically detect whether DMX data signal is received or not.
Activate DMX control.

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
