SHOWTEC Pixel User Manual

10
Pixel Controller
Product code: 44510

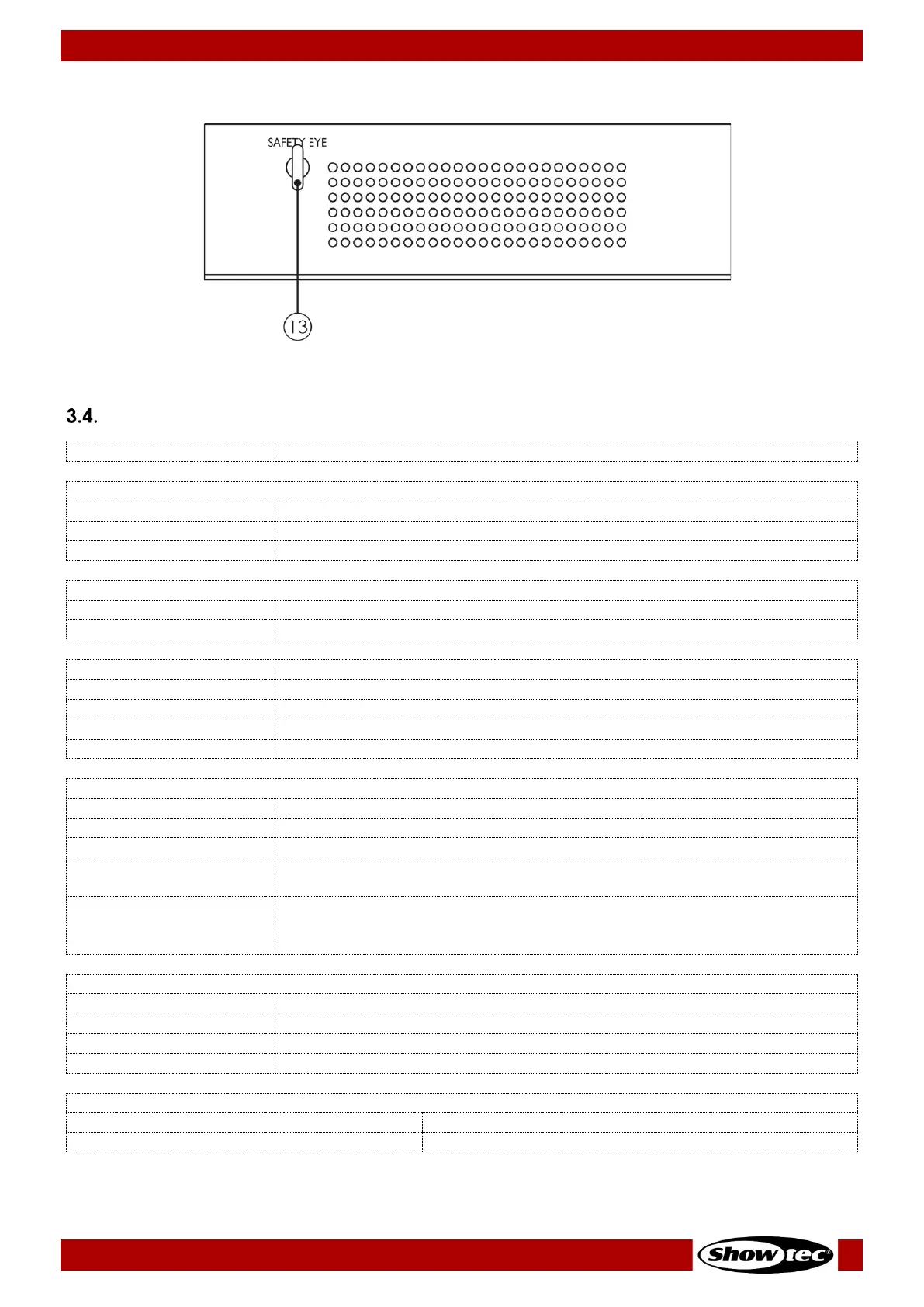

3.3. Side View
Fig. 04
13) Safety eye
Product Specifications
Model:
Pixel Controller
Electrical:
Input voltage:
100–240 V AC, 50/60 Hz
Power consumption:
230 W
Fuse:
T6,3A/250 V
Physical:
Dimensions:
342 x 210 x 68 mm (L x W x H)
Weight:
2,03 kg
Operation and control:
Control:
Auto, Manual, Master/Slave, DMX-512, Art-Net, Kling-Net
DMX channels:
See 6.7. DMX Channels on pages 33–51 for more information
Control protocols:
DMX-512, Art-Net, Kling-Net
Control panel:
OLED display and buttons
Connections:
Power connections:
Pro power connectors IN/OUT
Input connections:
3-pin/5-pin DMX connectors IN, 2 x Art-Net RJ45 connectors IN/OUT
Output connections:
3-pin/5-pin DMX connectors OUT, 4 x dedicated RJ45 connectors OUT
Maximum cable length:
10 m (CAT-5/CAT-6) from the Pixel Controller to the
Pixelstrip/Pixeltube/PixelDot
Maximum output length:
Pixelstrip 20/40: 4 m per output; 16 m per controller
Pixeltube 16/32: 5 m per output; 20 m per controller
PixelDot: 40 x PixelDot per output; 160 x PixelDot per controller
Construction:
Housing:
Metal
Color:
Black
IP rating:
IP20
Cooling:
Convection
Thermal:
Maximum ambient temperature t
a
:
40 °C
Maximum housing temperature t
c
:
70 °C

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
