Network Settings
In this menu you can set the network settings.
01) While in main menu, press the UP/DOWN buttons to select .

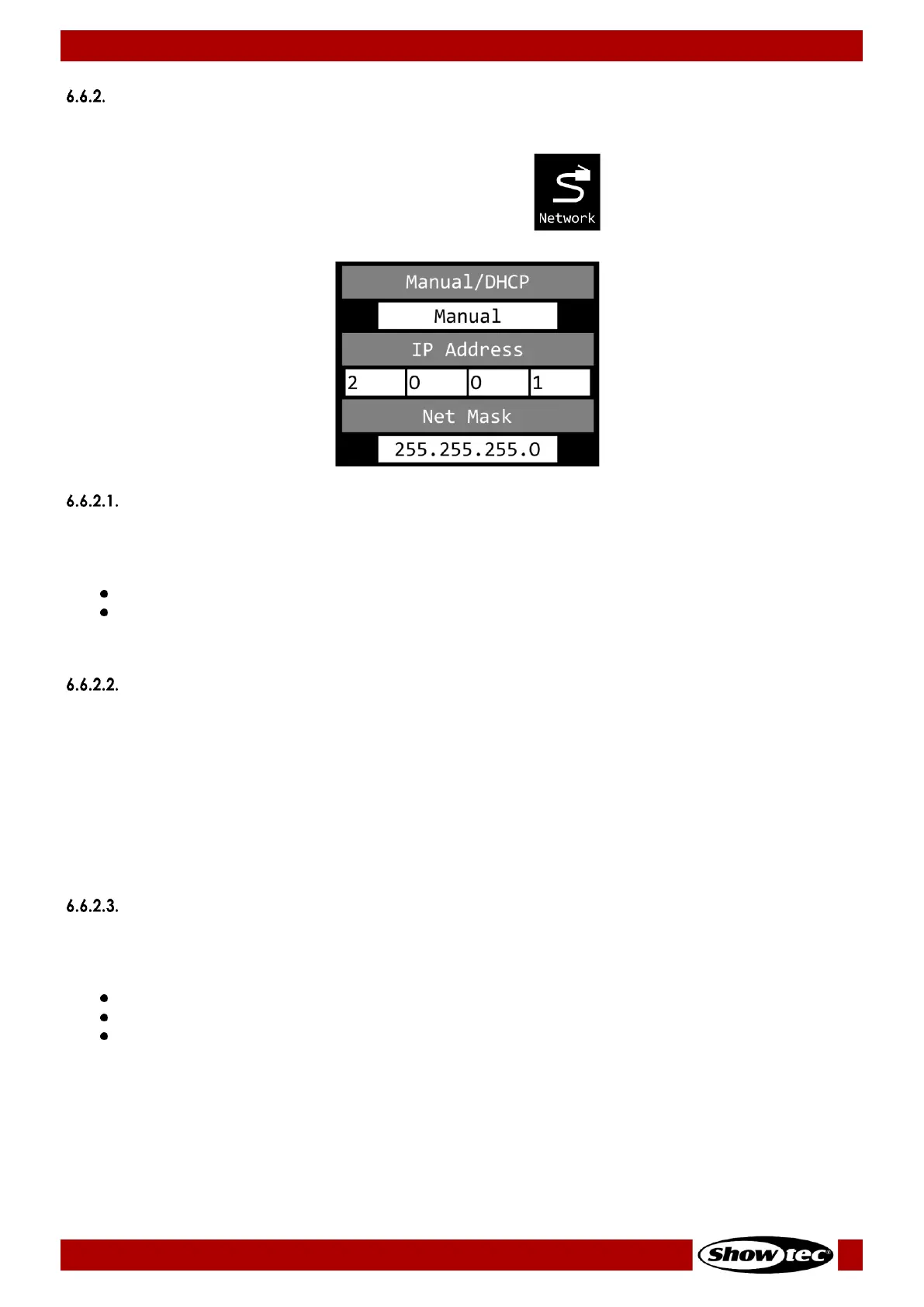

02) Press the ENTER button to confirm. The display will show:
Set Manual/DHCP
01) Press the UP/DOWN buttons to select MANUAL/DHCP.
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to select one of the 2 options:
MANUAL: You can enter a desired IP address and net mask.
DHCP: The device will receive its network settings from a DHCP server. If you choose this option,
you will not be able to adjust any settings in this menu.
04) Press the ENTER button to confirm your choice.
Set IP Address
01) Press the UP/DOWN buttons to select IP ADDRESS.
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to adjust the 1
st
section of the IP address.
04) Press the ENTER button to save changes.
05) Press the UP/DOWN buttons to select the 2
nd
section of the IP address.
06) Press the ENTER button to open the menu.
07) Press the UP/DOWN buttons to adjust the 2
nd
section of the IP address.
08) Press the ENTER button to save changes.
09) Repeat the process to adjust the remaining 2 sections of the IP address.
Set Net Mask
01) Press the UP/DOWN buttons to select NET MASK.
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to select one of the 3 net mask options:
255.0.0.0
255.255.0.0
255.255.255.0
04) Press the ENTER button to confirm your choice.

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
