Pixel Controller
Product code: 44510

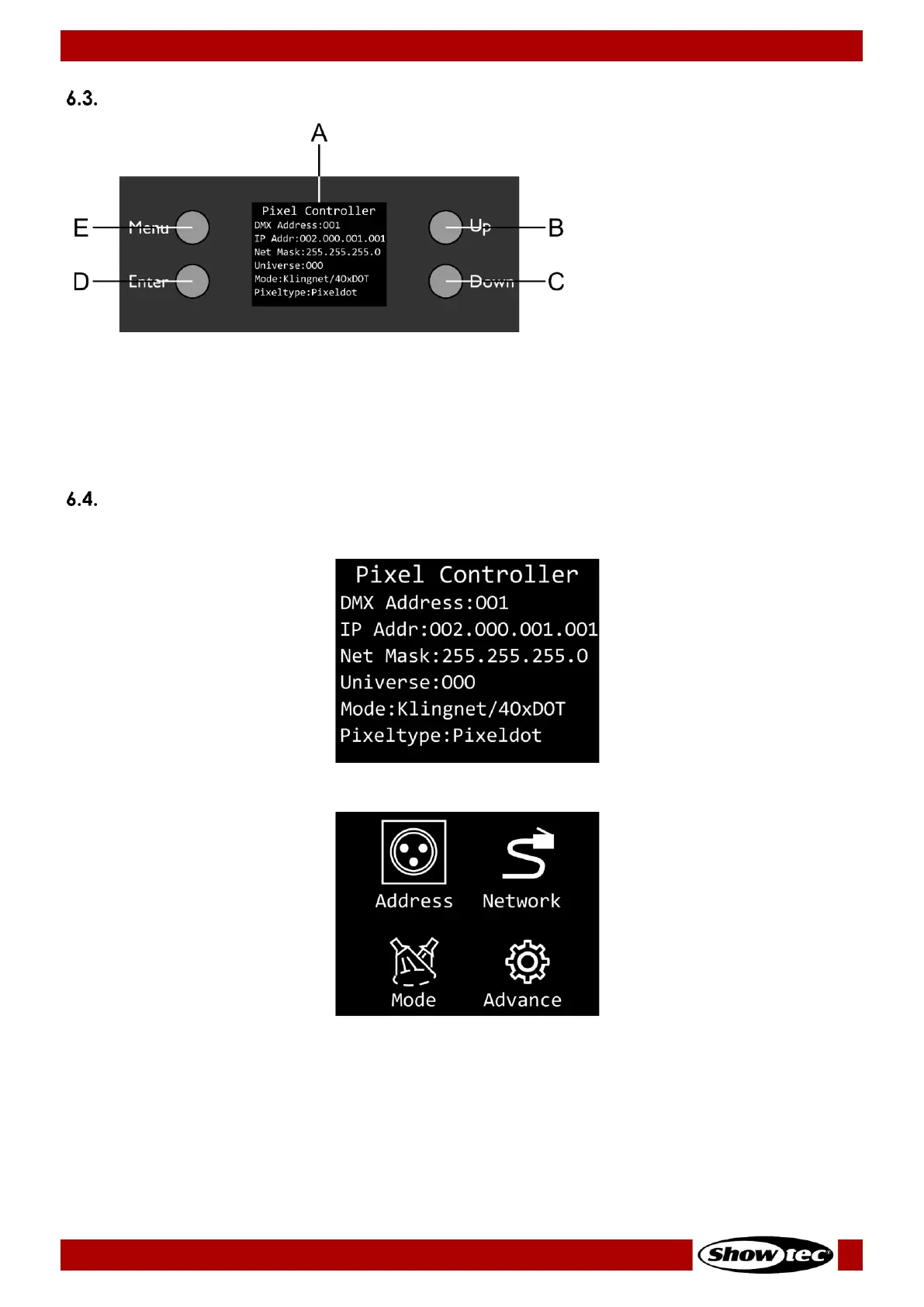

Control Panel
A) OLED display
B) UP button
C) DOWN button
D) ENTER button
E) MENU button
Fig. 12
● Use the MENU button to exit the current submenu, to return to the main menu and to return to the
start screen.
● Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values.
● Use the ENTER button to open the desired menu, to confirm your choice or to set the currently
selected value.
Start-up
Upon start-up the display will show the following screen:
When you press the MENU button, the Pixel Controller will show its main menu :
Note: If no button is pressed, the display will turn off. Press any button to turn the display on. See
6.6.4.3. Screen Timeout on page 32 for more information.
