Pixel Controller

Product code: 44510

5.2.4. DMX Linking

You can connect the Pixelstrip 20/40 (max. 4 m per output), Pixeltube 16/32 (max. 5 m per output) or

PixelDots (max. 40 devices per output) to the Pixel Controller. In the example below, the Pixelstrip 40 is

connected to the Pixel Controller.

To connect multiple devices on one DMX data link, follow the steps below:

Use a 3-pin/5-pin DMX cable to connect the DMX OUT connector of the lighting controller to the

DMX IN connector of the first device.

Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a

3-pin/5-pin DMX cable.

Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 09.

Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data

link.

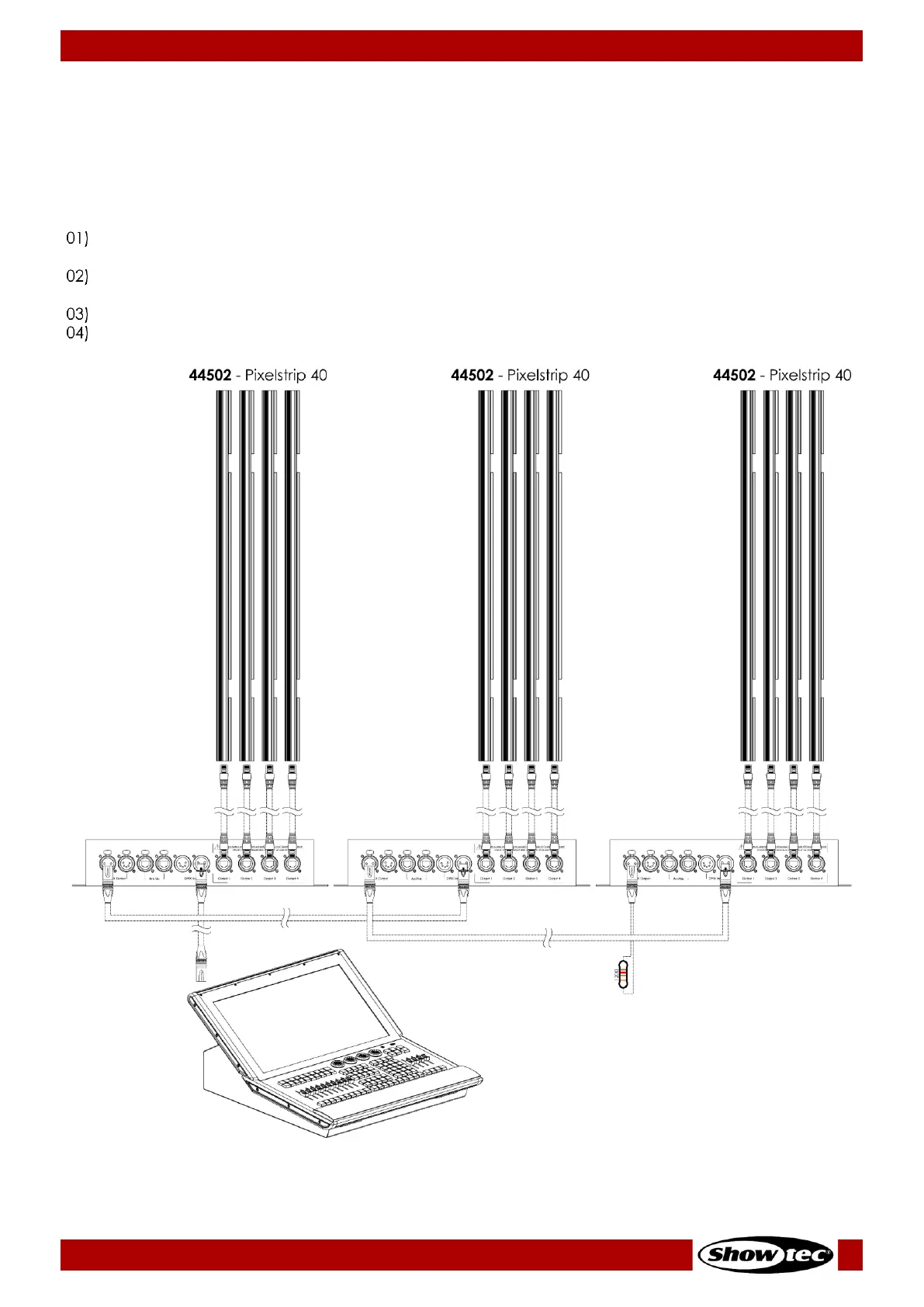

Fig. 09
