SHOWTEC Pixel User Manual

44
Pixel Controller
Product code: 44510

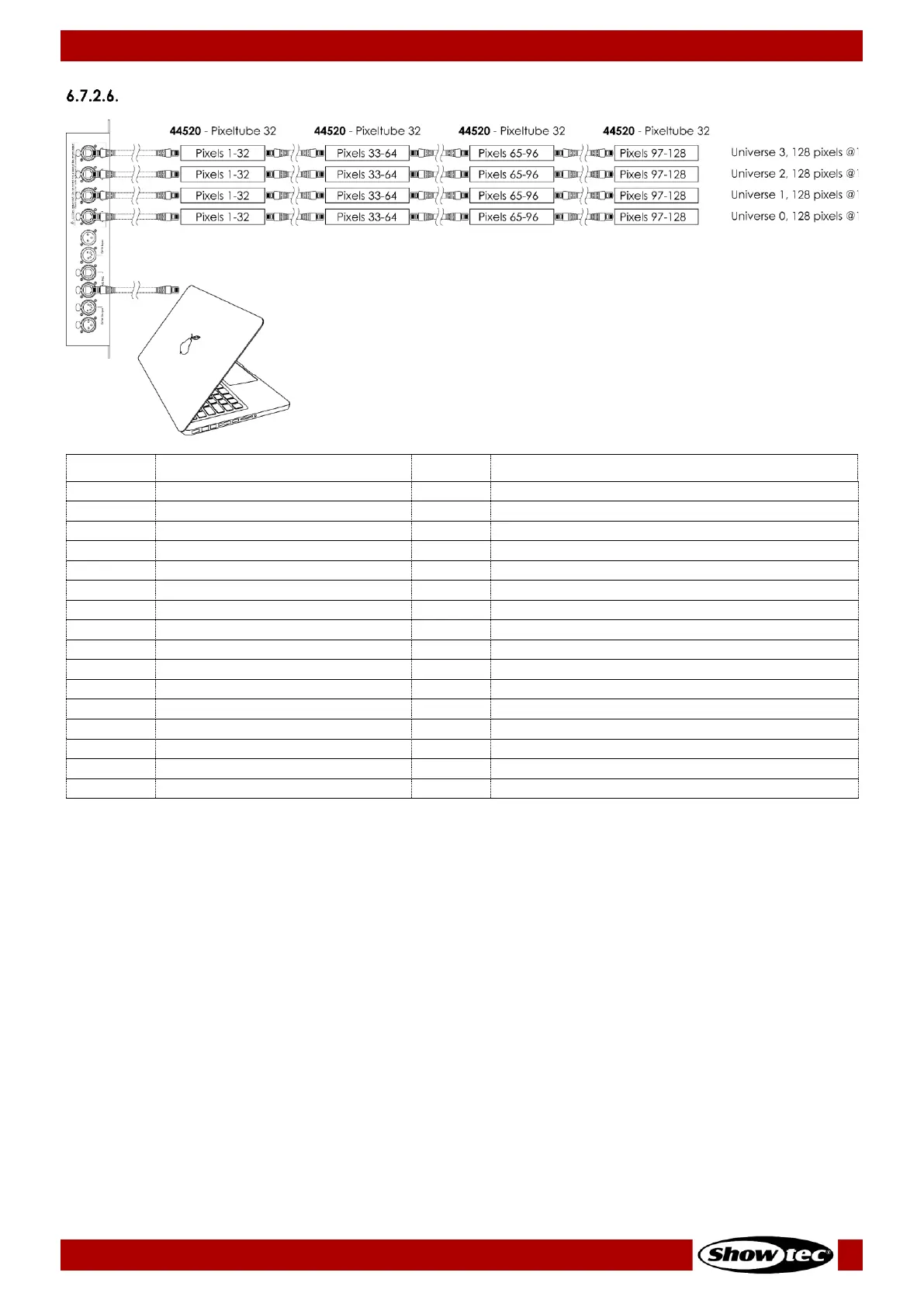

1536 Channels (Art-Net)
1536 CH
Function
Value
Setting
1
Red (pixel 1, universe 0)
000–255
From low to high intensity (0–100 %)
2
Green (pixel 1, universe 0)
000–255
From low to high intensity (0–100 %)
3
Blue (pixel 1, universe 0)
000–255
From low to high intensity (0–100 %)
4
Red (pixel 2, universe 0)
000–255
From low to high intensity (0–100 %)
5
Green (pixel 2, universe 0)
000–255
From low to high intensity (0–100 %)
6
Blue (pixel 2, universe 0)
000–255
From low to high intensity (0–100 %)
7
Red (pixel 3, universe 0)
000–255
From low to high intensity (0–100 %)
8
Green (pixel 3, universe 0)
000–255
From low to high intensity (0–100 %)
9
Blue (pixel 3, universe 0)
000–255
From low to high intensity (0–100 %)
10
Red (pixel 4, universe 0)
000–255
From low to high intensity (0–100 %)
11
Green (pixel 4, universe 0)
000–255
From low to high intensity (0–100 %)
12
Blue (pixel 4, universe 0)
000–255
From low to high intensity (0–100 %)
…
000–255
From low to high intensity (0–100 %)
1534
Red (pixel 128, universe 3)
000–255
From low to high intensity (0–100 %)
1535
Green (pixel 128, universe 3)
000–255
From low to high intensity (0–100 %)
1536
Blue (pixel 128, universe 3)
000–255
From low to high intensity (0–100 %)

SHOWTEC Pixel Specifications

General

Channels	512
Weight	0.2 kg
DMX Channels	512
Control Protocol	DMX512
DMX Connectors	3-pin XLR
Storage Temperature	-20°C to 60°C
