Installation and mounting
4.2 Protection from affecting systems in close proximity
Prevent the affection of systems mounted in close proximity
If several safety light curtains operate in close proximity to each other, the sender beams
of one system may interfere with the receiver of another system. This can disrupt the pro-
tective function of the system. This would mean that the operator is at risk. You must avoid
such mounting scenarios or take appropriate measures, e.g. by mounting non-reflective
sight protection walls or by reversing the transmission direction of a system.
a
WARNING

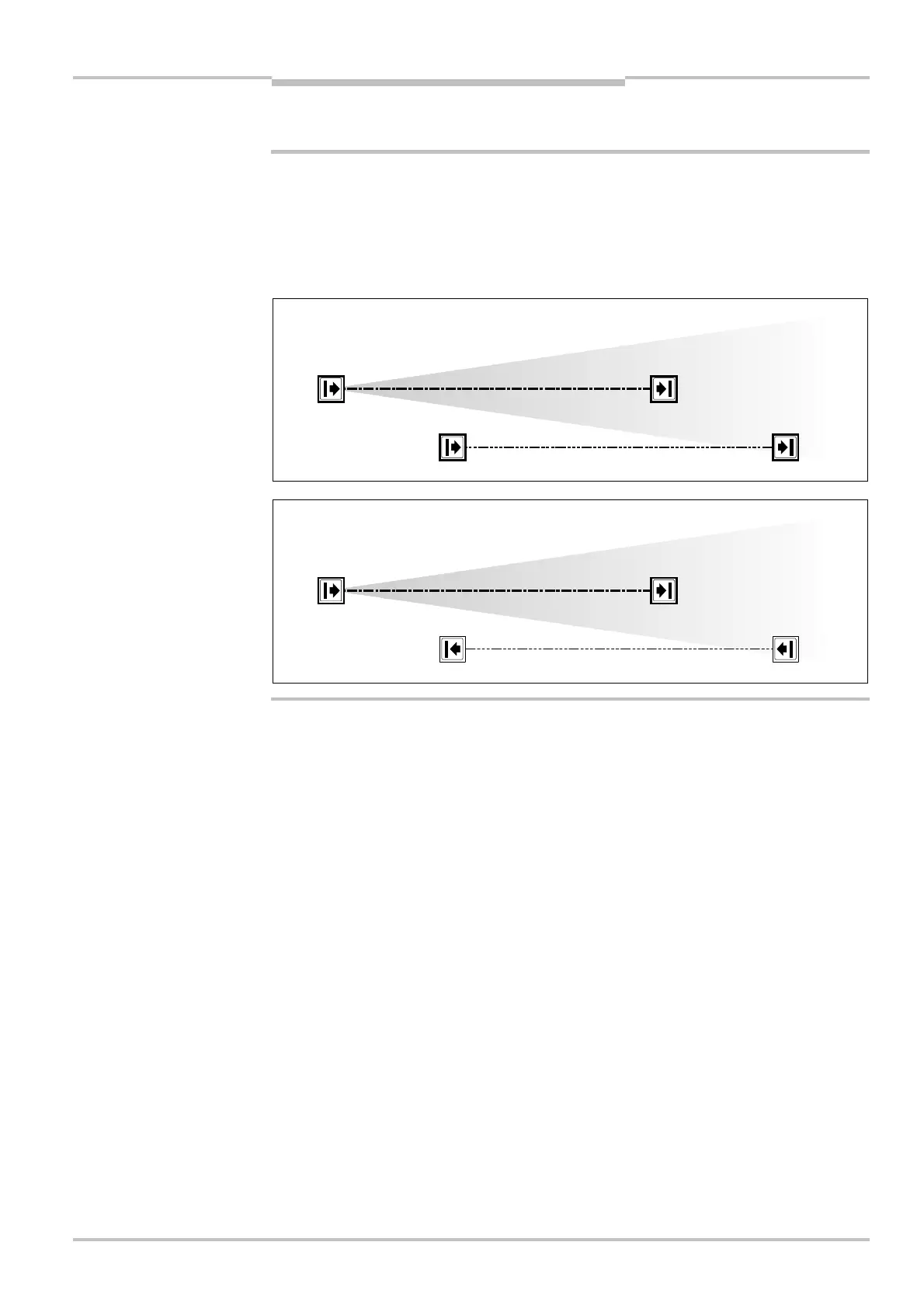

Fig.
11
:
Unwanted
influencing of a 2
nd
C4000 system.
The receiver r of the 2
nd
system is affected by the
beams of the 1
st
system.
Fig.
12
:
Revers
ing the
transmission direction of
systems in close proximity.
The sender S of the 2
nd
system is not affected by the
beams of the 1
st
system.
Beams of the 1
st
system
Affected 2
nd
system
Beams of the 1
st
system
2
nd
system with reversed transmission direction

SICK C4000 Micro Specifications

General

Type	Safety Light Curtain
Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Enclosure Rating	IP65
Resolution	14 mm
Supply Voltage	24 V DC
Synchronization	Optical
Connection	M12 connector
Standards	EN ISO 13849
Outputs	2 safety outputs (OSSDs), 1 auxiliary output
