Chapter 5 Operating Instructions
C4000 Micro/Basic/Basic Plus/Eco
36 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8009423/YT79/2016-03-14
Subject to change without notice
Electrical installation
5.7.2 C4000 Micro/Basic on UE10-30S without restart interlock, with EDM
The C4000 Micro/Basic light curtain can be integrated in the UE10-30S switching ampli-
fier. Operation is carried out without a restart interlock but with an EDM.
Mode of operation:
If the light path is not interrupted and the UE10 is in the de-energised position, the system
is released for use. The outputs OSSD1 and OSSD2 are energised. This switches on the
UE10.
If the light path is interrupted, the outputs OSSD1 and OSSD2 are de-energised. This
switches off the UE10.
Possible fault sources:
Cross and short-circuiting of the outputs OSSD1 and OSSD2 are detected and lead to a
lock-out. Malfunctions of the UE10 are detected; the switch-off function remains active.

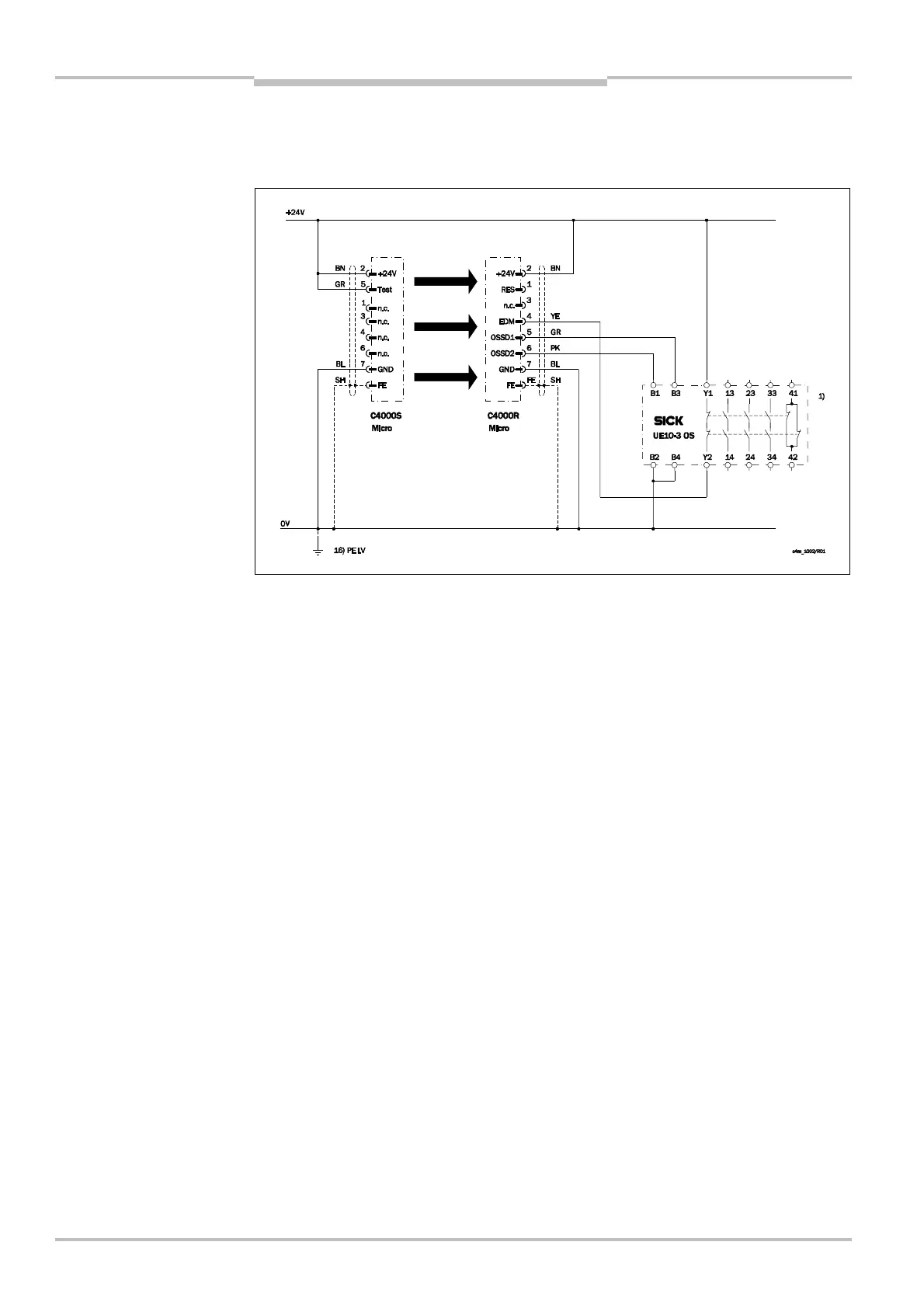

for C4000 Micro/Basic on
UE10-30S
