4.3.1 Mounting with swivel mount bracket
The swivel mount bracket is made of black plastic. The bracket is designed such that sen-
der and receiver can still be accurately aligned even after the bracket has been mounted.
The swivel mount bracket is also suitable for mounting the deflector mirrors PNS75 and
PNS125 (see chapter 10.4.5 f. on page 54 f.).
⋅ Attach the bolts of the swivel mount bracket with a torque of between 2.5 and 3 Nm.
Higher torques can damage the bracket; lower torques provide inadequate protection
against vibration.
Note

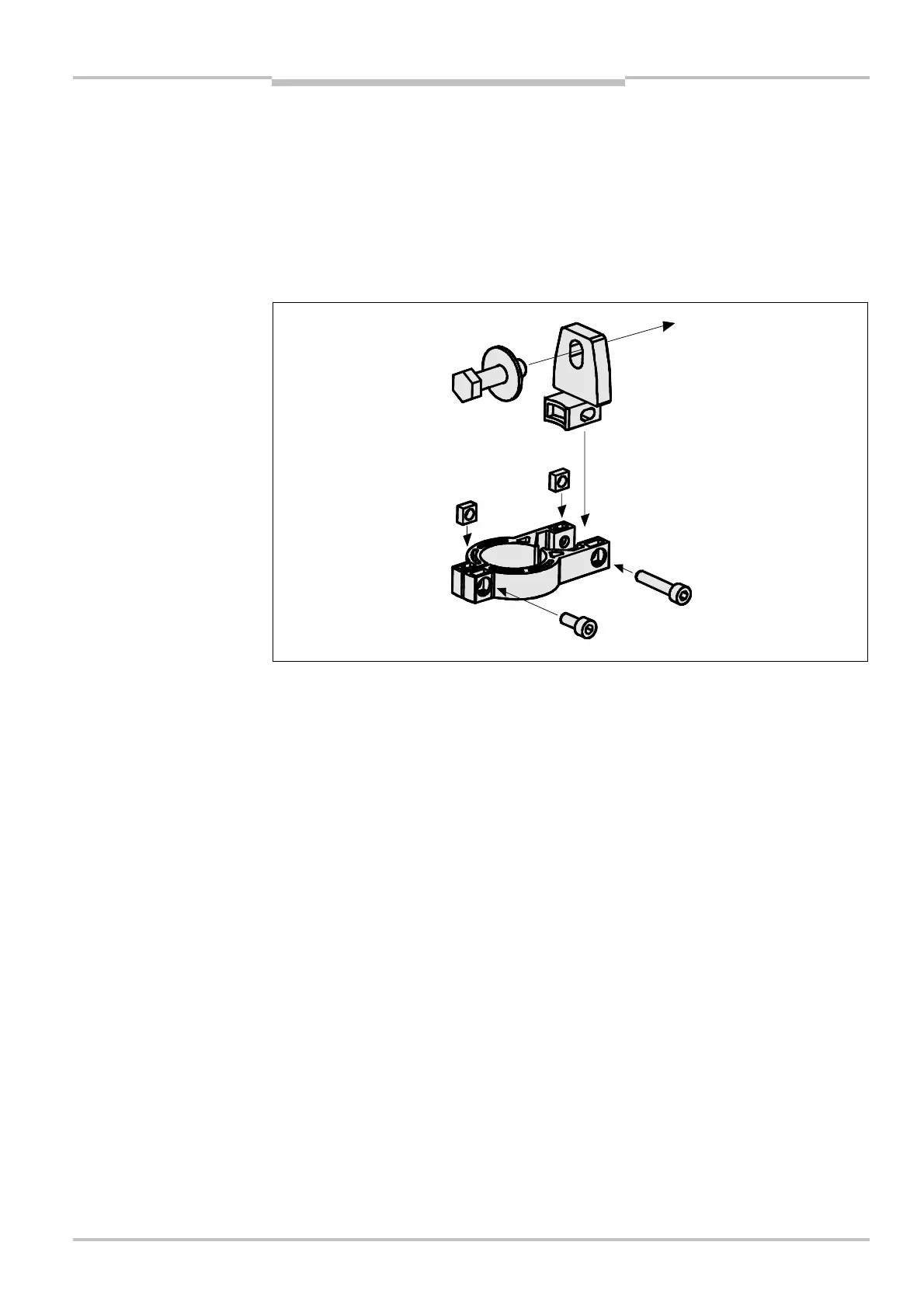

Fig.
14
:
Composition of the
swivel mount bracket

SICK C4000 Micro Specifications

General

Type	Safety Light Curtain
Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Enclosure Rating	IP65
Resolution	14 mm
Supply Voltage	24 V DC
Synchronization	Optical
Connection	M12 connector
Standards	EN ISO 13849
Outputs	2 safety outputs (OSSDs), 1 auxiliary output
