Installation and mounting
⋅ Mount the bolts marked with 1 to 4 on the operator side of the system to ensure that
they remain accessible after mounting and to allow you to readjust the light curtain
later, if necessary.
⋅ If you wish to use the additional front screen (see “Additional front screen (weld spark
guard)” on page 61), make sure that the curved side of the device remains accessible
after mounting.

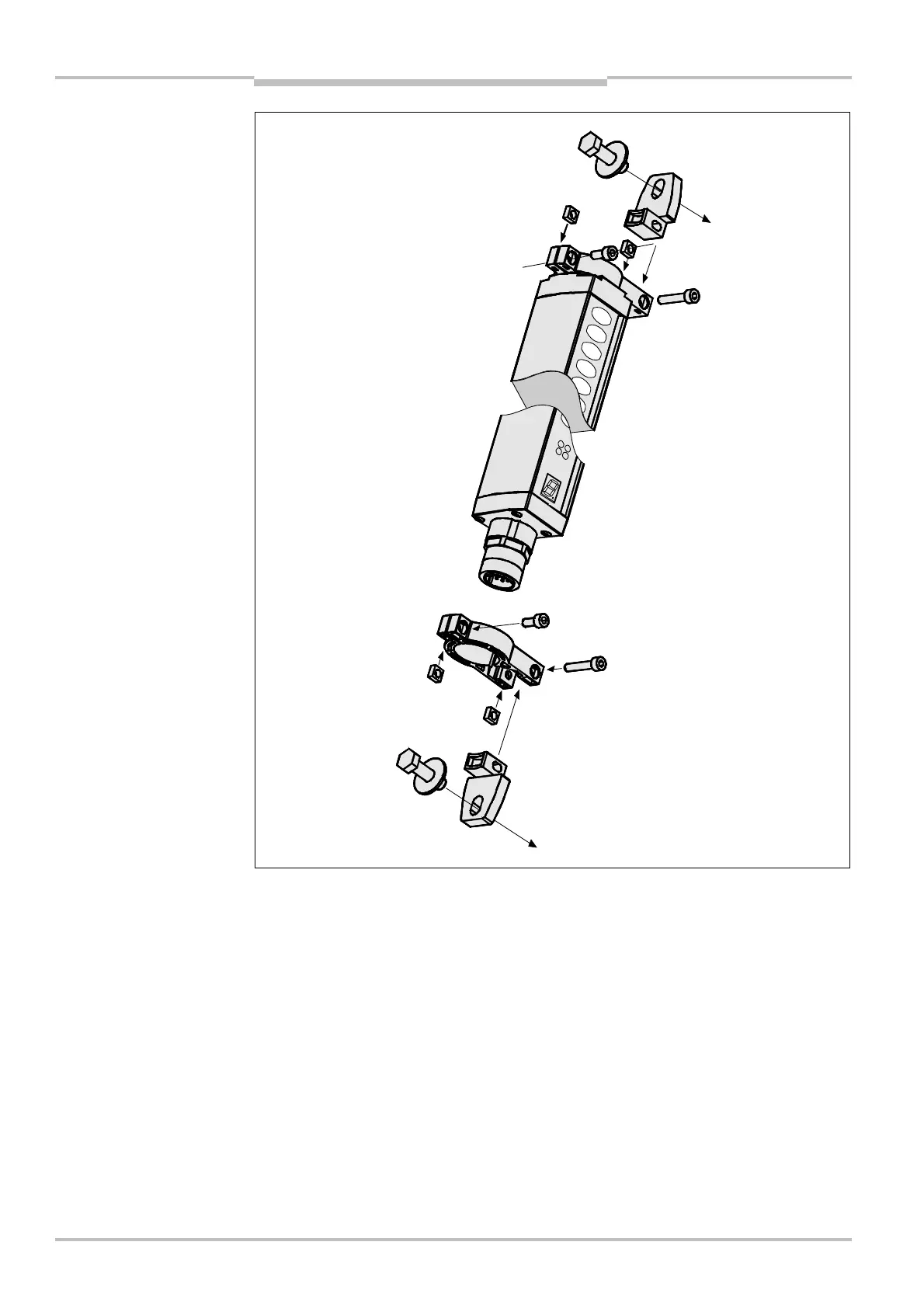

Fig.
15
:
Mounting sender and
receiver using swivel mount
brackets
Notes
1
2
3
4

SICK C4000 Micro Specifications

General

Type	Safety Light Curtain
Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Enclosure Rating	IP65
Resolution	14 mm
Supply Voltage	24 V DC
Synchronization	Optical
Connection	M12 connector
Standards	EN ISO 13849
Outputs	2 safety outputs (OSSDs), 1 auxiliary output
