SICK C4000 Micro User Manual

Operating Instructions Chapter 10
C4000 Micro/Basic/Basic Plus/Eco
8009423/YT79/2016-03-14 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 55
Subject to change without notice
Technical specifications
10.4.6 Deflector mirror PNS125
Mirror height
S [mm]
Dimension
L1 [mm]
Dimension
L2 [mm]
Dimension
L3 [mm]
Dimension
A [mm]
340 372 396 460 440
490 522 546 610 590
640 672 696 760 740
790 822 846 910 890
940 972 996 1060 1040
1090 1122 1146 1210 1190
1240 1272 1296 1360 1340
1390 1422 1446 1510 1490
1540 1572 1596 1660 1640
1690 1722 1746 1810 1790
1840 1872 1896 1960 1940
When using deflector mirrors, the effective scanning range is reduced (see Tab. 6 on
page 16).
Do not use deflector mirrors if the formation of droplets or heavy contamination of the
deflector mirrors is to be expected!

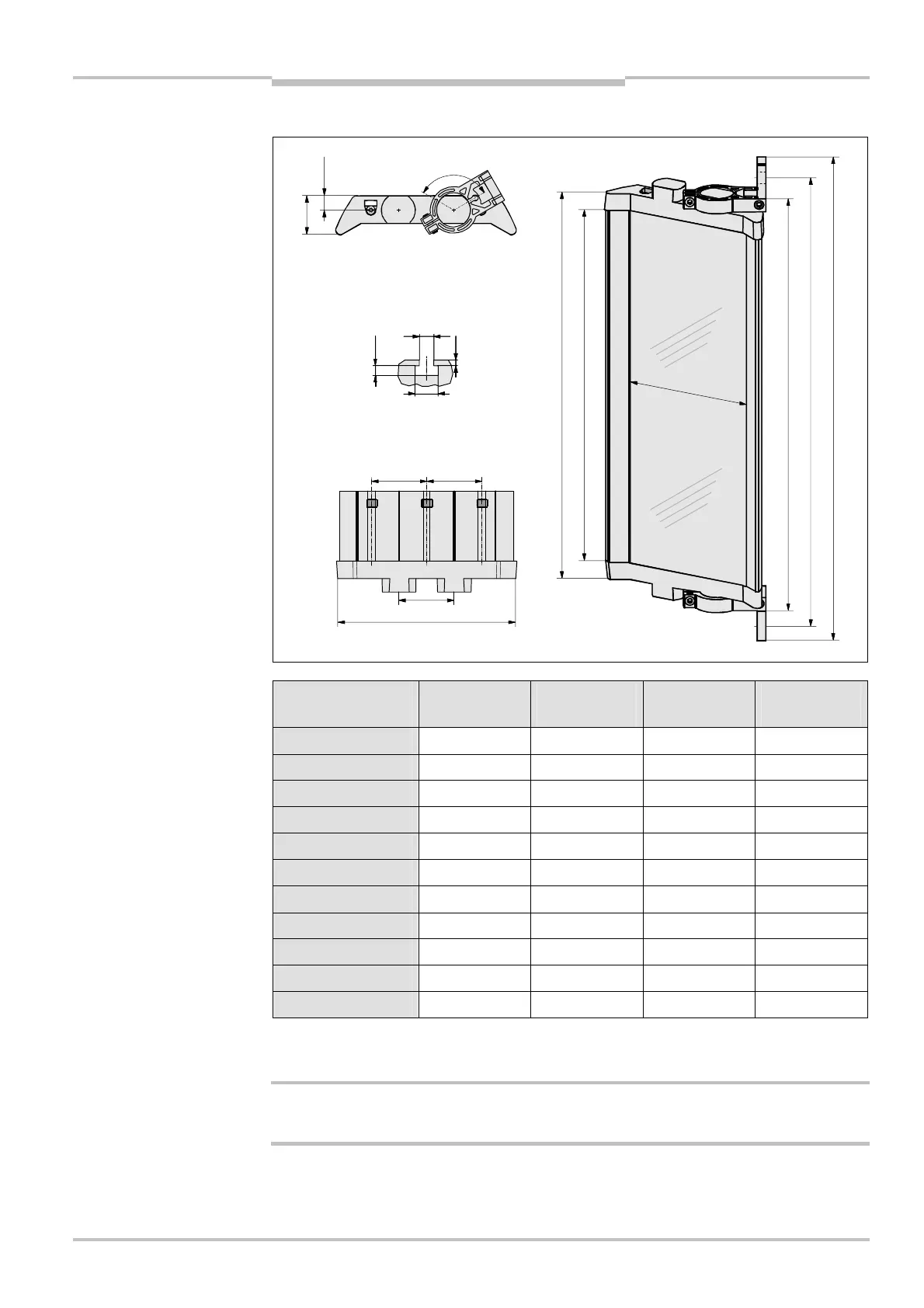

Fig.
33
:
Dimensional drawing
deflector mirror PNS125
(mm)
Tab.
25
:
Dimensions for the
deflector mirror PNS125
dependent on the mirror
height
a
WARNING
10.5
50
S
35
13.3
±60°
2.5
164
6.5
L1
L2
A
L3
4.5
Sliding nut groove for
side mounting
Mounting with
swivel mount bracket
(Part No. 2019659)
50
50
123

SICK C4000 Micro Specifications

General

Type	Safety Light Curtain
Safety Integrity Level (SIL)	SIL3
Performance Level (PL)	PL e
Enclosure Rating	IP65
Resolution	14 mm
Supply Voltage	24 V DC
Synchronization	Optical
Connection	M12 connector
Standards	EN ISO 13849
Outputs	2 safety outputs (OSSDs), 1 auxiliary output
