Installation and mounting
⋅ When mounting the side bracket make sure that the bolts marked 1 and 2 remain
accessible, allowing you later to adjust and lock the light curtain in position.
⋅ If you wish to use the additional front screen (see “Additional front screen (weld spark
guard)” on page 61), make sure that the curved side of the device remains accessible
after mounting.

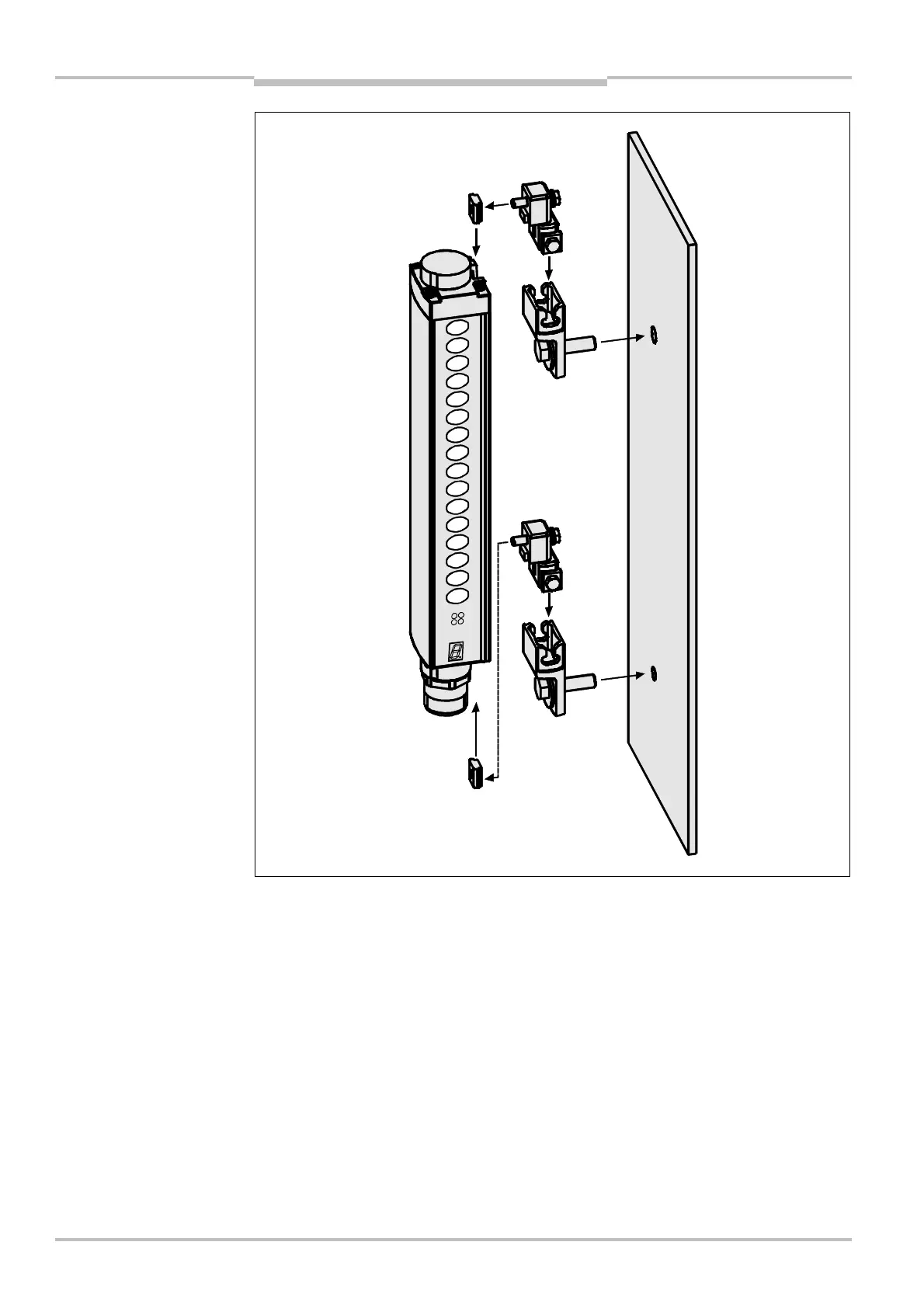

Fig.
17
:
Moun
ting the
C4000
with side bracket
Notes
Sliding n
ut
Sliding nut
2
1
