12.7.4 CLV615: Long Range
150
(5.91)
(5.91) (7.87) (9.84) (11.81) (13.78)
(
–5.91)
–150
100
(3.94)
(3.94)
(
–3.94)
–100
50
(1.97)
(1.97)
(
–1.97)
–50
0
Reading distance in mm (inch)
2
Resolution 3
a: 0.35 mm (13.8 mil)
b: 0.50 mm (19.7 mil)
0 50 100 150 200 250 300 350
Reading field height in mm (inch) 1
a
b

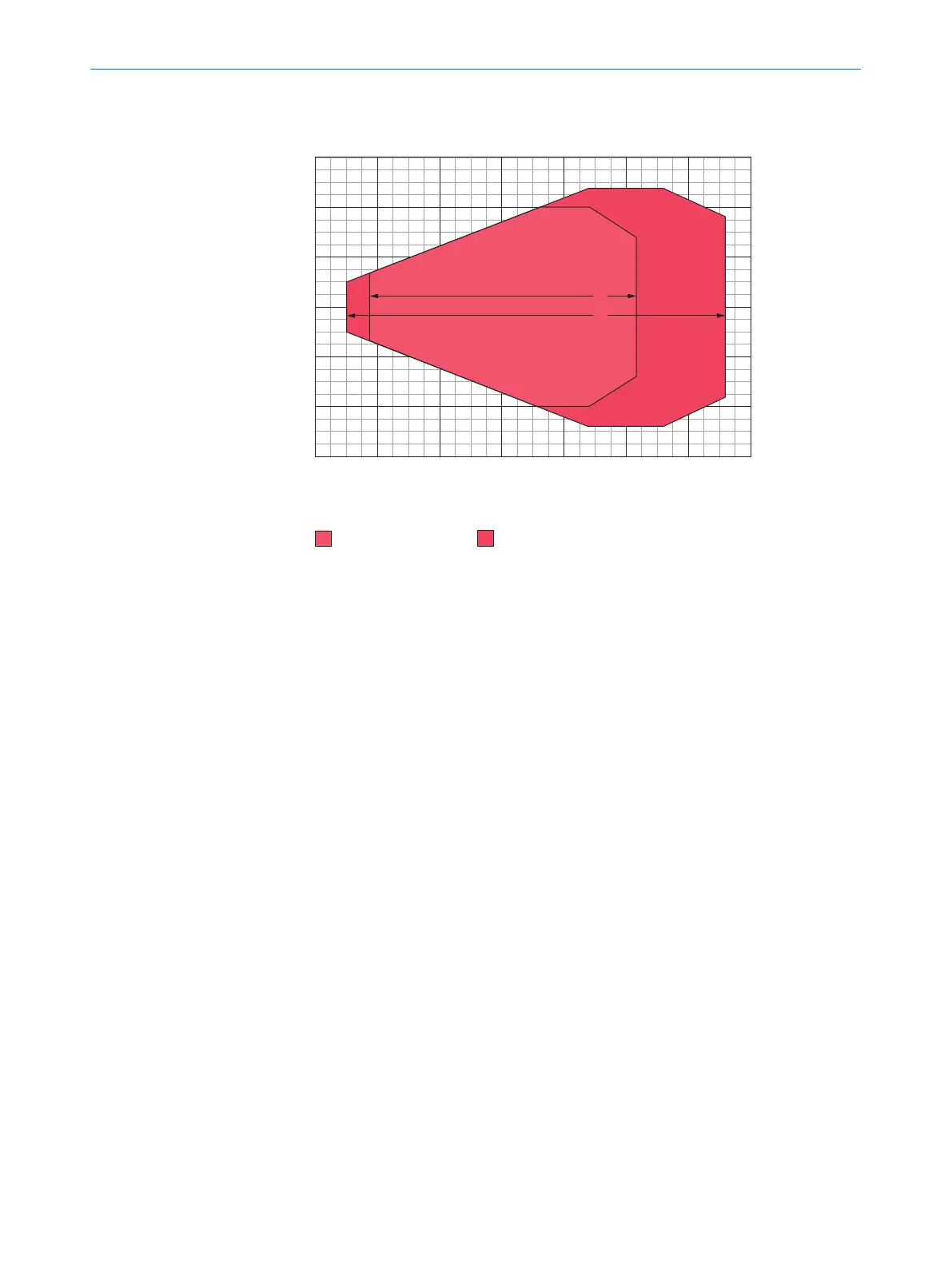

Figure 35: CLV615 reading field diagram, Long Range, side viewing window
1
Reading field height in mm (inch)
2
Reading distance in mm (inch)
3
Resolution
