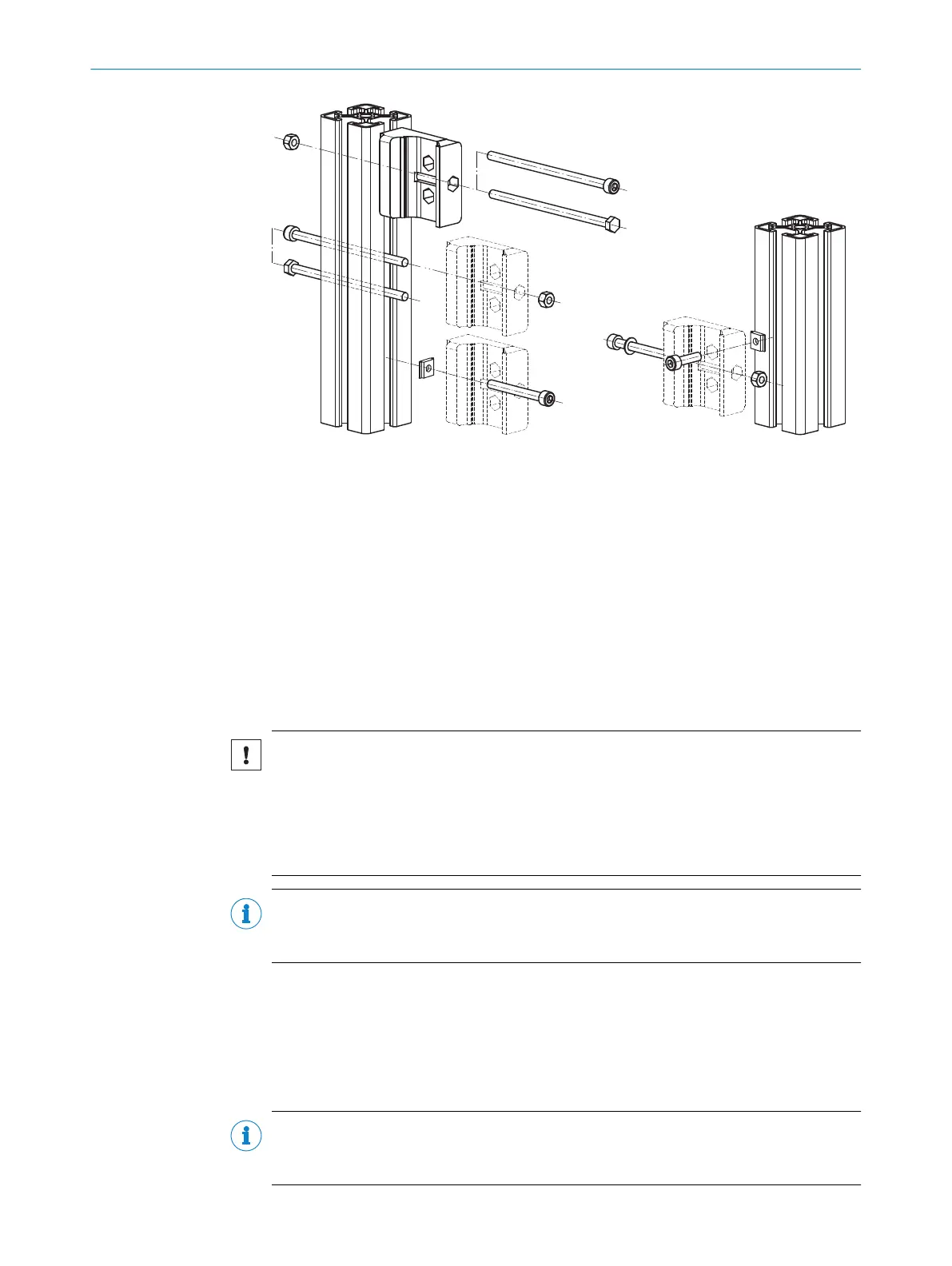

Figure 20: Mounting the QuickFix bracket to a profile
1
Mounting on the side
2
Mounting on the back
5.3.2 Mounting the FlexFix bracket
Overview
In t
he FlexFix bracket, the sender and receiver can be rotated ± 15° around their longi‐
tudinal axis.
2 FlexFix brackets are used to mount the sender and receiver.
Important information
NOTICE
T
he housing of the safety light curtain can become scratched if the screw heads pro‐
trude when the FlexFix brackets are mounted on the back.
This can be avoided by taking one of the following measures:
b
Use flat-head screws with washers.
b
If using cylinder head screws, use 2 screws per bracket and no washers.
NOTE
T
he FlexFix mounting kit (part number 2073543) contains 2 FlexFix brackets, one align‐
ment tool, and the required screws, sliding nuts, and washers.
Further topics
•
"Br
ackets", page 64
5.3.2.1 Mounting the FlexFix bracket on a machine or profile frame
Important information
NOTE
W
hen selecting the screw length, observe the wall thickness of the FlexFix bracket, see
figure 33, page 65.
MOUNTING 5
