7.4.2 Alignment with the QuickFix bracket
Prerequisites
•
T
he sender and receiver are mounted with a QuickFix bracket
Important information
NOTE
If the alignment cannot be adjusted with the QuickFix bracket, use the optional FlexFix
bracket.
Alignment with the QuickFix bracket
T
he QuickFix bracket offers you the following adjustment options for aligning the sender
and receiver with each other:
•
Adjust vertically (H)
*) Exception for protective field height 300 mm
H
≤ L
/4*
L
≤ L /4

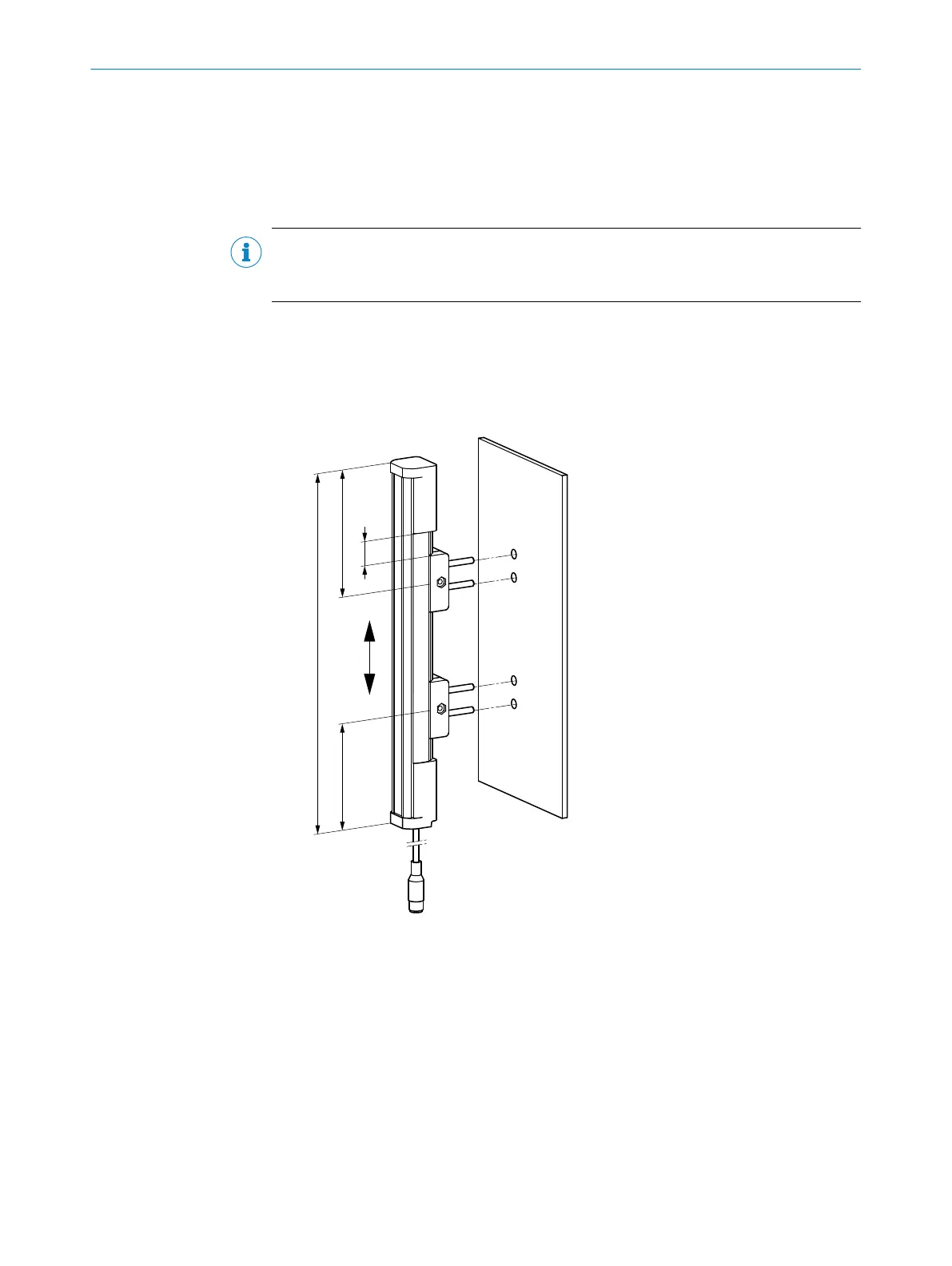

Figure 29: QuickFix bracket: adjust vertically
7.4.3 Alignment with the FlexFix bracket or with the upgrade bracket
Prerequisites
•
A F
lexFix bracket or upgrade bracket is used to mount the sender and receiver.
Alignment with the FlexFix bracket or the upgrade bracket
The FlexFix bracket or upgrade bracket offer you the following adjustment options for
aligning the sender and receiver with each other:
•
Adjust vertically (H)
•
Rotate (± 15°)
