SICK deTec4 Core

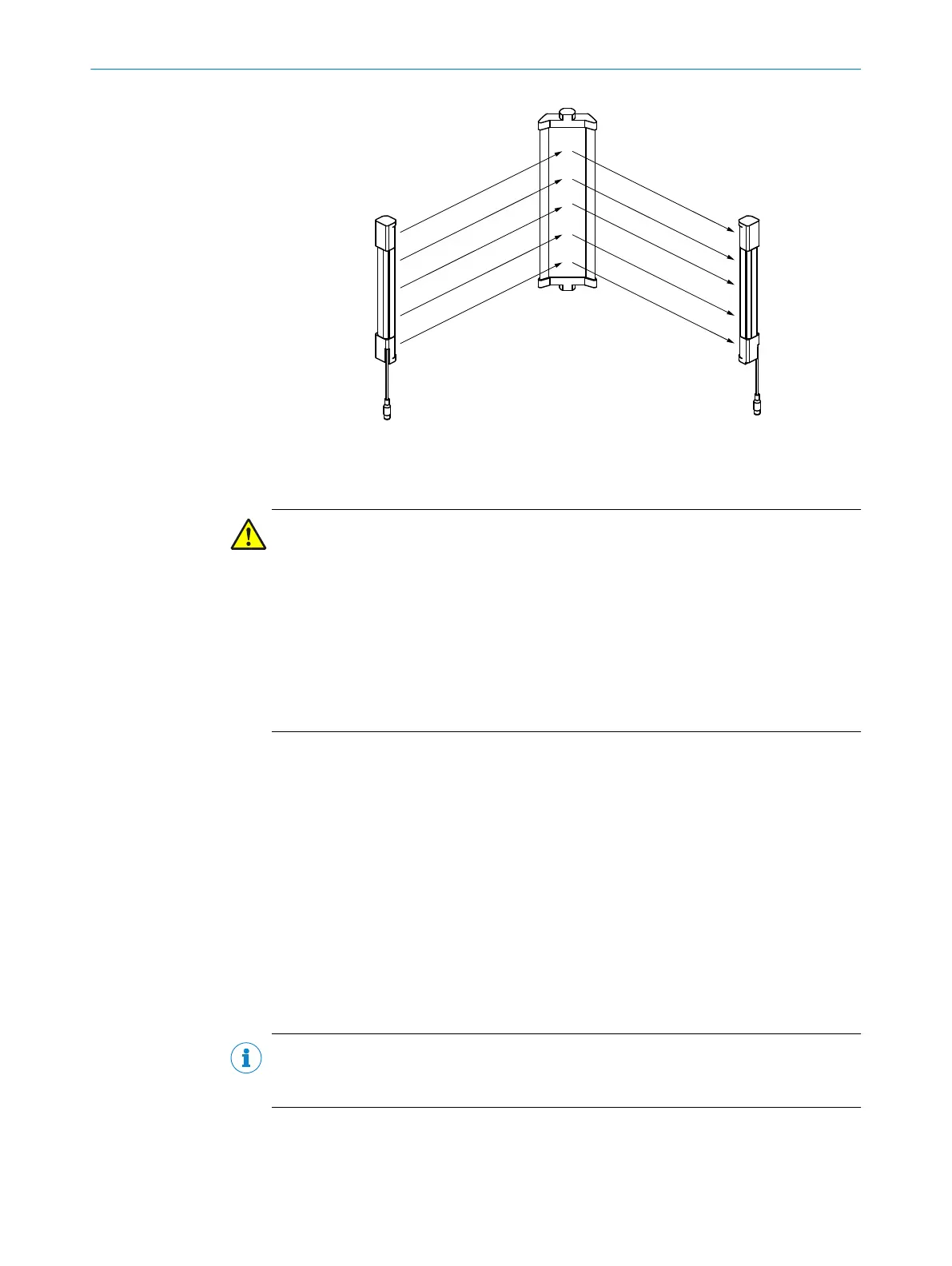

Figure 36: Example of use of deflector mirrors
Important information
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
b
Only mount deflector mirrors to solid walls or machine components. The position
of the deflector mirrors must not change after alignment.
b
Do not use deflector mirrors if contamination, beading water, condensation, or
frost on the deflector mirrors is to be expected.
b
Make sure that the deflector mirrors are intact and free of scratches, contamina‐
tion, beading water, condensation, frost, etc. at all times.
Further topics
•
"Mirror columns", page 71
14.6.2 Mounting
To mount the deflector mirrors, use the included swivel mount brackets.
14.6.3 Change in scanning range using deflector mirrors
Overview
T
he information relates to 90° beam deflection per mirror and a protective field height
of 900 mm.
Important information
NOTE
T
he use of deflector mirrors reduces the scanning range depending on the number of
deflector mirrors in the protective field.
ACCESSORIES 14
