14.3 Weld spark guard
Function and use
T
he weld spark guard can be used to protect the front screen of the safety light curtain.
The weld spark guard reduces the scanning range of the system by 15 %.
Ordering information
T
able 21: Weld spark guard ordering information
Part Part number
Weld spark guard 2069268
Mounting
1
2
3
4

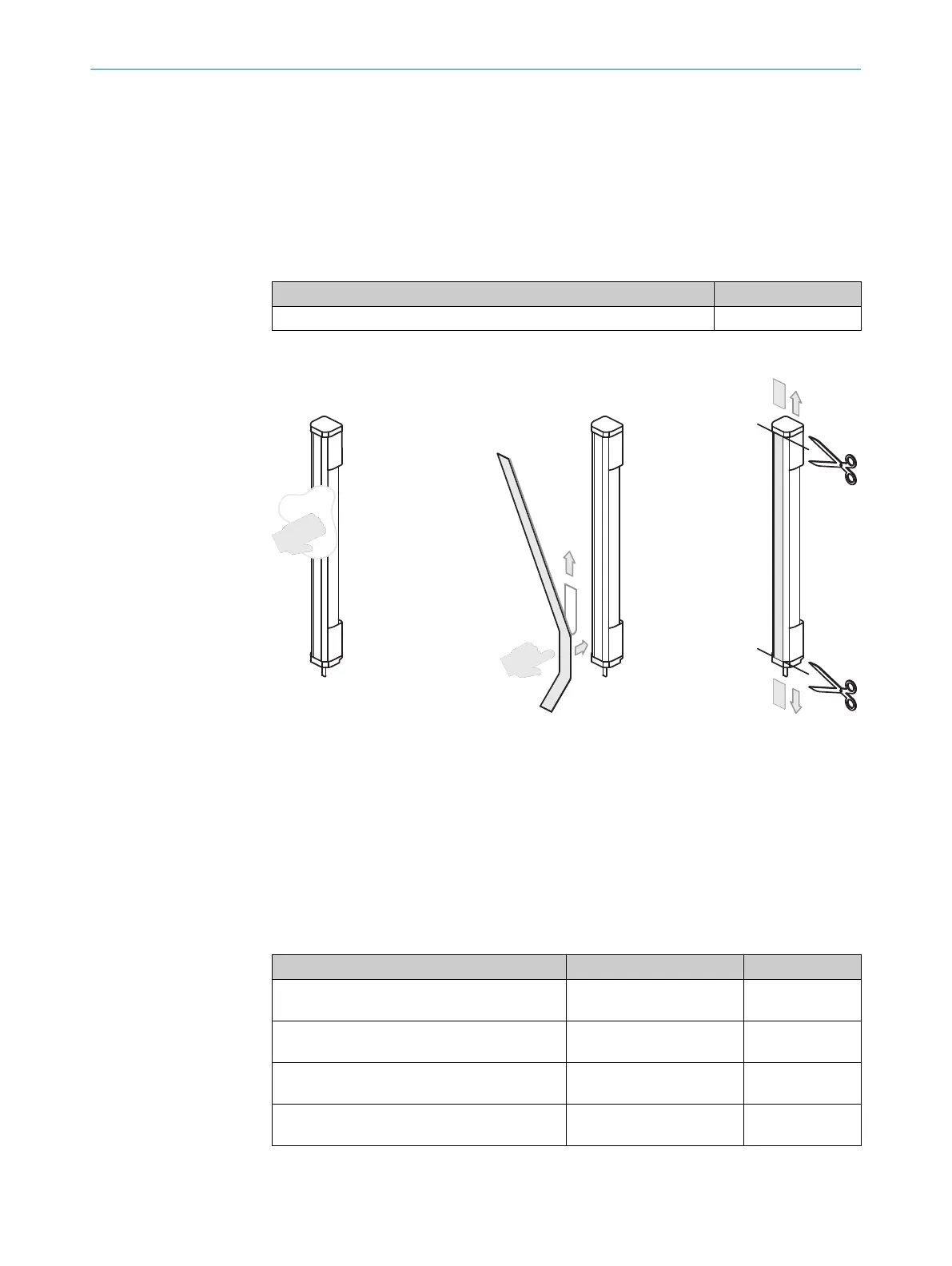

Figure 35: Mounting the weld spark guard
1
Clean the front screen.
2
Remove backing film
3
Press against the weld spark guard
4
Cut off excess ends
14.4 Connectors
Cables
T
able 22: Ordering information for M12 connecting cable, 5-pin (0.34 mm
2
)
1)
Part Type code Part number
Female connector, straight, 2 m c
able, open
end
DOL-1205-G02MC 6025906
Female connector, straight, 5 m cable, open
end
DOL-1205-G05MC 6025907
Female connector, straight, 10 m c
able, open
end
DOL-1205-G10MC 6025908
Female connector, straight, 15 m cable, open
end
DOL-1205-G15MC 6051946
1)
Ambient oper
ating temperature: Down to -30 °C with fixed installation.
ACCESSORIES 14
