*) Exception for protective field height 300 mm
H
≤ L
/4*
L
≤ L /4
± 15°

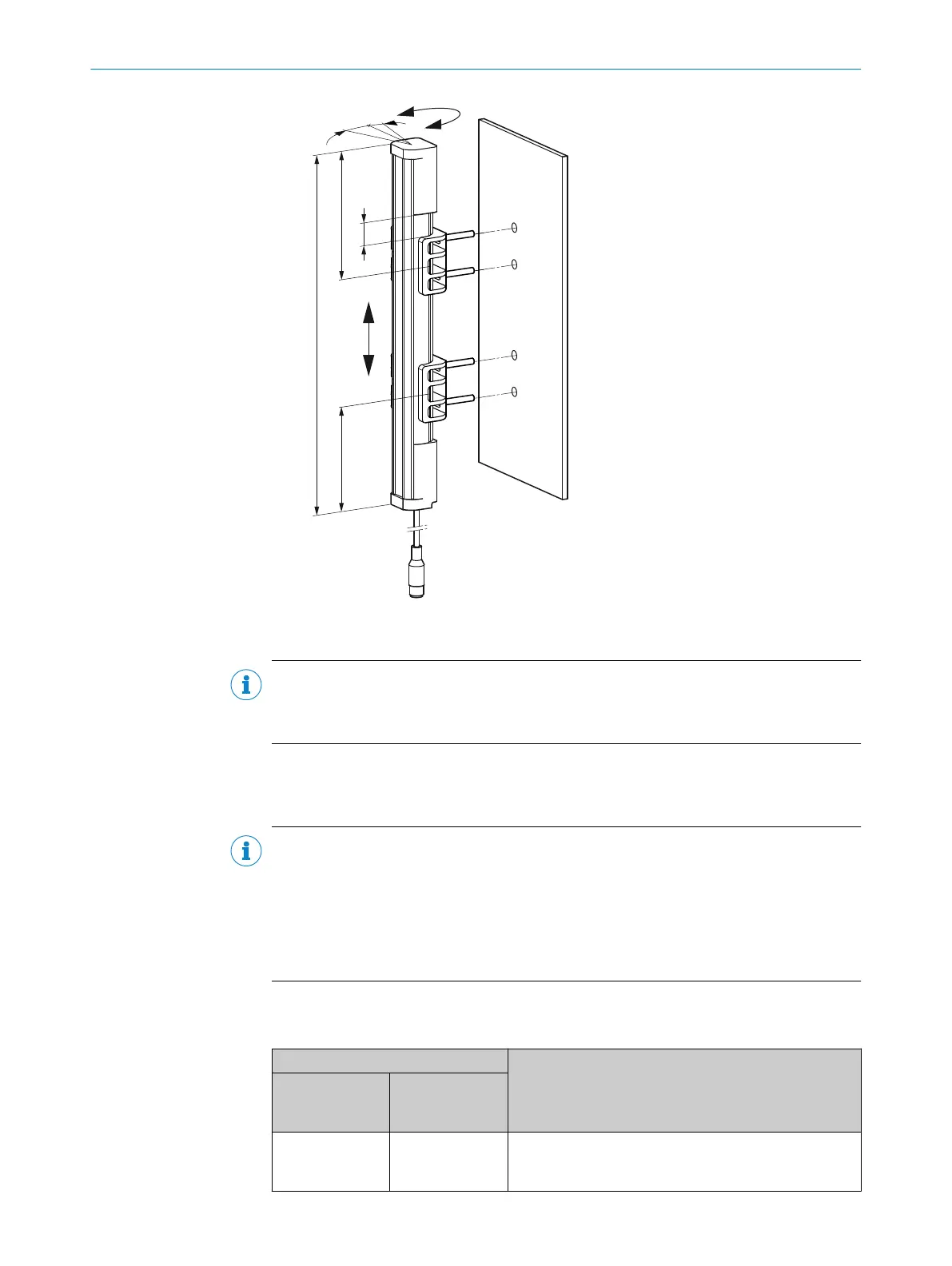

Figure 30: FlexFix bracket: adjust vertically/rotate
NOTE
R
ecommendation for aligning a long device so that it rotates uniformly in both brackets:
b
Grab the alignment device roughly in the center between the two brackets.
7.4.4 Indication of the alignment quality
Important information
NOTE
Once 3 blue ali
gnment quality light emitting diodes light up, alignment is good and
availability is stable.
Please note that body parts or objects in the protective field (e.g., hand, tool, AR60
optional laser alignment aid) may impair the function of the alignment quality LEDs.
Remove all objects from the protective field to allow the alignment quality to be
assessed.
Indication of the alignment quality
T
able 5: Indication of the alignment quality
LEDs Meaning
Alignment qual‐
it
y light emitting
diodes
OSSD
No light emitting
diode lights up
O R
ed
Alignment is insufficient or the protective field is inter‐
r
upted at least partially. The receiver cannot synchronize
with the sender.
7 COMMISSIONING
48
O P E R A T I N G I N S T R U C T I O N S | deTec4 Core 8014253/ZOH3/2017-08-04 | SICK
Subject to change without notice
