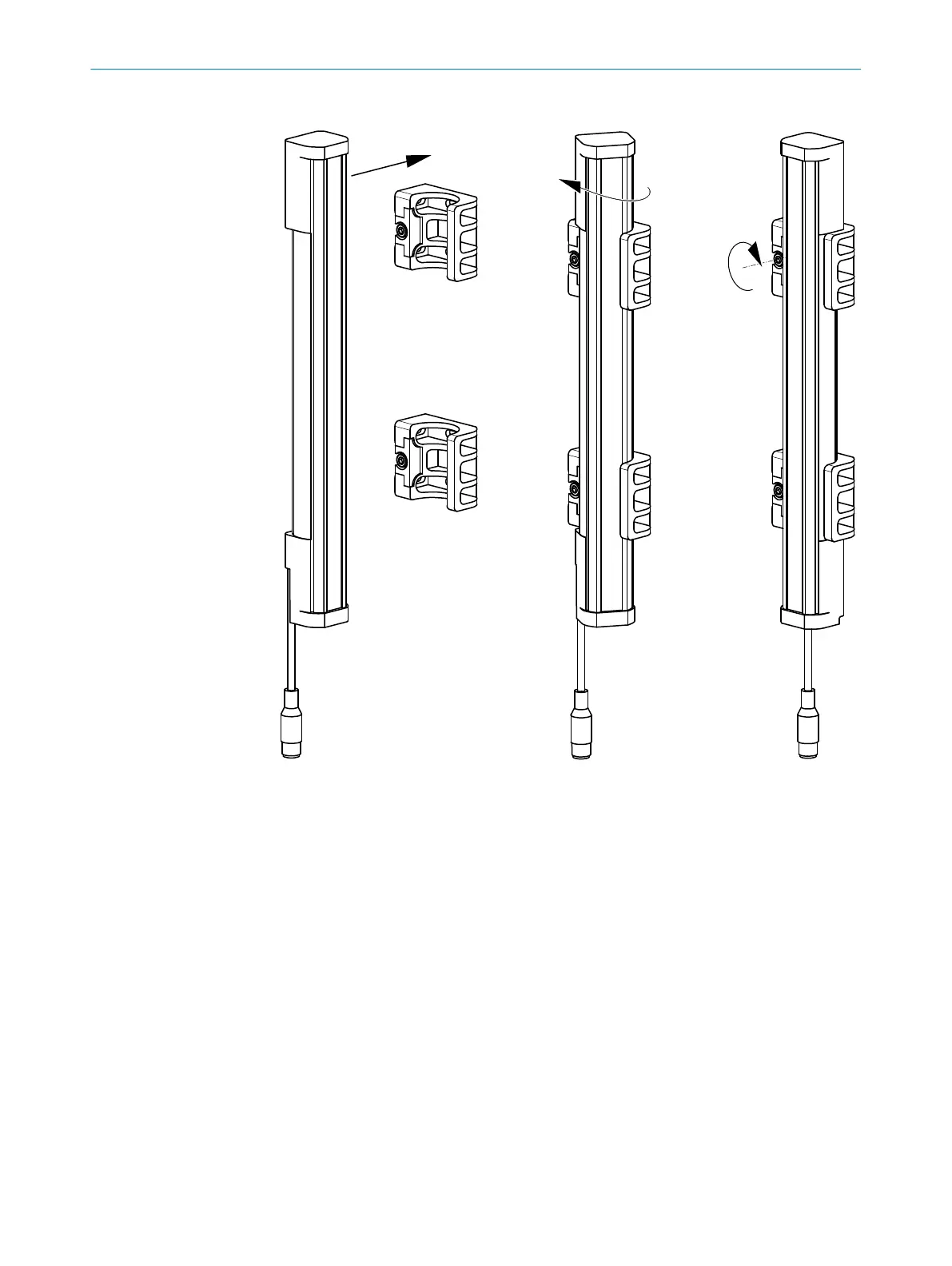

Figure 22: Inserting the safety light curtain in the FlexFix brackets
2.
Use an M5 screw to fix the position of the sender and receiver in the FlexFix
bracket.
Further topics
•
"Alignment of the sender and receiver", page 45
5.3.2.2 Mount FlexFix bracket to the back of a device column
Overview
T
he FlexFix bracket can be mounted in the device column using sliding nuts.
If you wish to mount the sender and receiver in the center of the device column, use
washers between the FlexFix brackets and the device column.
MOUNTING 5
