SICK DME5000

Chapter 9 Operating Instructions
DME5000
104 © SICK AG • Germany • Subject to change without notice 8009813/ZJV1/2017-05
Technical Data

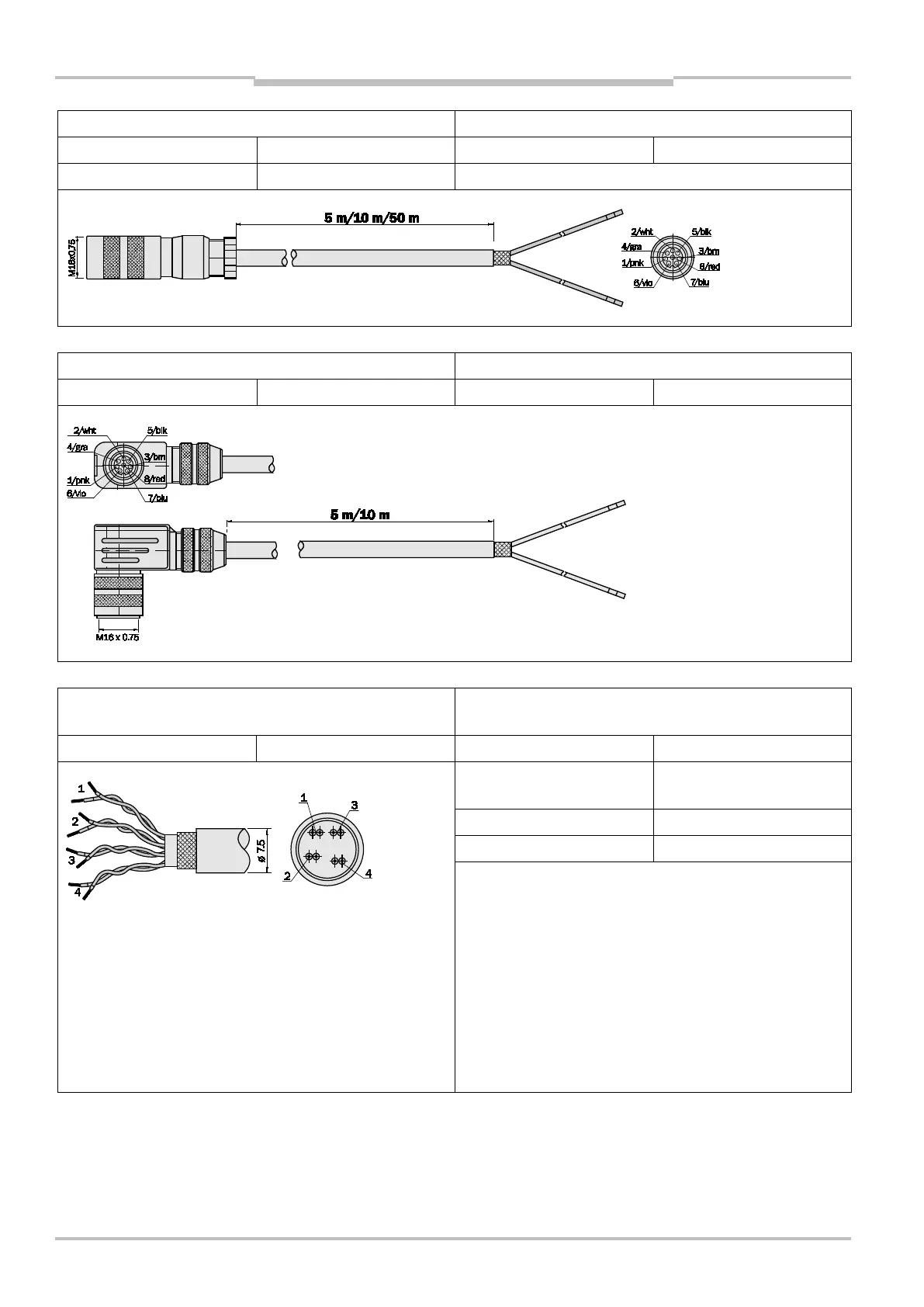

Cable socket M16, 8-pin, straight, 5 m/50 m, shielded Cable socket M16, 8-pin, straight, 10 m, shielded
Type: DOL-1608-G05MA Part no.: 2026742 Type: DOL-1608-G10MA Part no.: 2027193
Type: DOL-1608-G50MA Part no.: 6032903
Cable socket M16, 8-pin, angle, 5 m, shielded Cable socket M16, 8-pin, angle, 10 m, shielded
Type: DOL-1608-W05MA Part no.: 2026743 Type: DOL-1608-W10MA Part no.: 2027194
Cable 2 x 0.5 mm
2
, 6 x 0.25 mm
2
,
twisted-pair, shielded
Technical Data
Type: LTG-2308-MW Part no.: 6026292 Temperature range moved –5 ... +70 ℃
Key:
1 = Wire pair blk/wht
2 = Wire pair red/vio
3 = Wire pair pnk/gra
4 = Wire pair brn/blu
5 = Insulation foil
6 = Shield
7 = PUR sleeve
firmly installed
–40 ... +80 °C
Sleeve PUR pebble gray
Shield Tinned copper mesh
Connector view
Connector view
