Chapter 6 Operating Instructions
DME5000
86 © SICK AG • Germany • Subject to change without notice 8009813/ZJV1/2017-05
Operation
6 Operation
This chapter explains the operating panel and the general operation of the DME5000. For
more detailed information on commissioning and operation of the DME5000 see chapter
5 "Commissioning".
6.1 Operating Panel Setup
The operating panel has two areas:
 LC-Display: Indicates the menu during parameterization
 Function buttons: To enter the parameters or functions
6.2 Operation
The DME5000 is equipped with a membrane keyboard.
Only operate the input area with your fingers or a suitable pointer!
Never use any pointed or hard objects. They may damage the function buttons, which
would make operation difficult or impossible.
6.3 Operating Panel
After application of the operating voltage (or after reset), the following display appears on
the DME5000:
After approx. 1 s, the DME5000 is operational and shows the current distance value to the
reflector, if in sight.

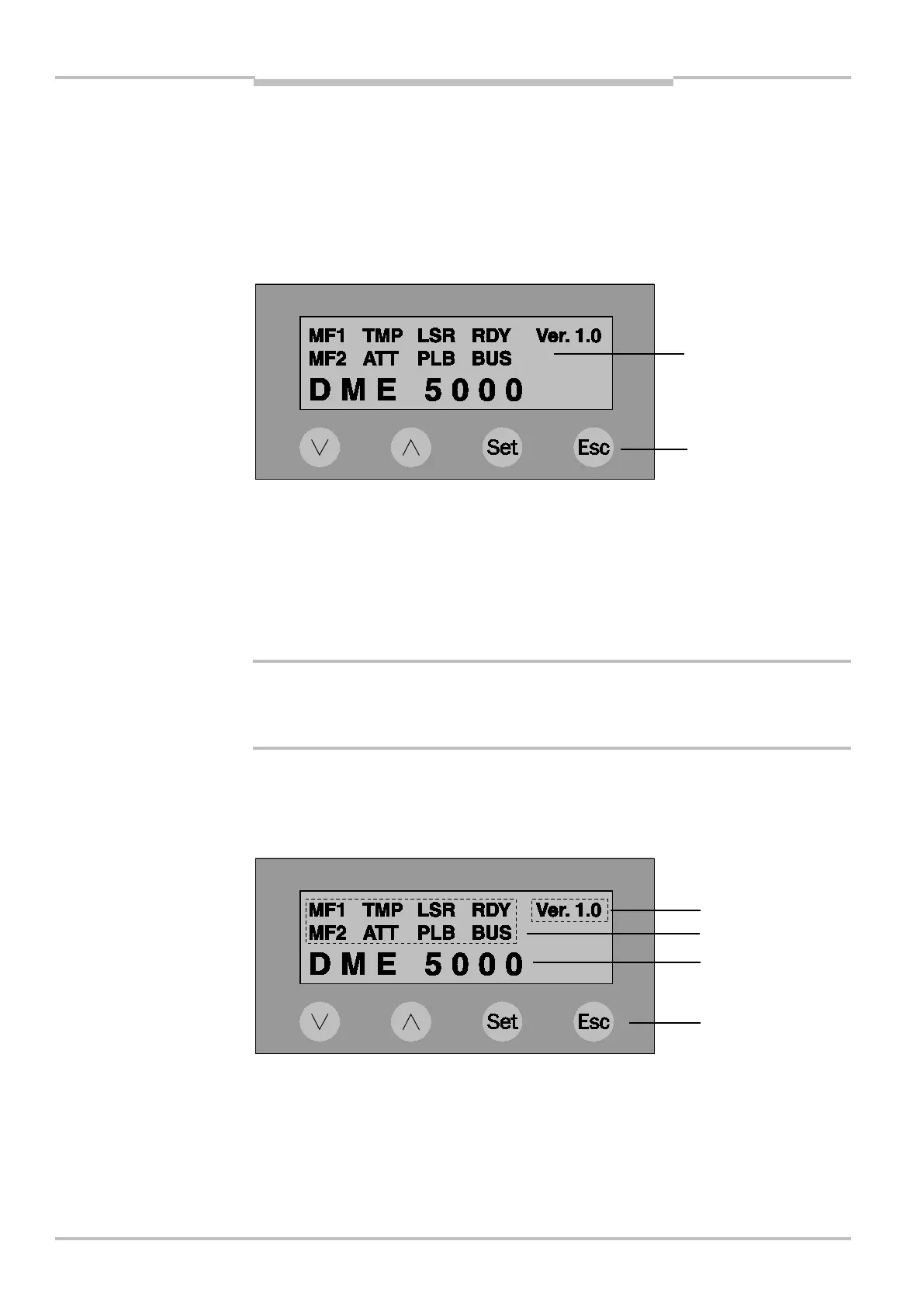

Fig. 17: Display

ATTENTION
Fig. 18: Display after
application of operating
voltage
Function buttons
LC
-Display
Status displays
Information field 1
Information field 2
Function buttons
