SICK DME5000 User Manual

Operating Instructions Chapter 6
DME5000
8009813/ZJV1/2017-05 © SICK AG • Germany • Subject to change without notice 87
Operation
Status displays
Display Meaning Is displayed Is not displayed
MF1 Multifunctional
in-/output
In-/output active In-/output not active
MF2 Multifunctional output Output active Output not active
TMP Device inside
temperature
Pre-failure message:
Internal device
temperature has
reached threshold
range
Internal device
temperature OK
ATT Contamination Pre-failure message:
Reception level within
the threshold range
Reception level OK
LSR Laser Pre-failure measuring
laser
Laser OK
PLB Plausibility Measuring error
Cause: e.g. light beam
interruption,
contamination,
optical/electrical
interferences
Measured value OK
RDY Ready When ready for
operation
Initializing, hardware
defect
BUS Interface:
SSI
PROFIBUS
®
DeviceNet
RS-422
Hiperface
Clock signal received
Telegram transfer
Telegram transfer
Continuous mode
‒
No clock signal
No telegram transfer
No telegram transfer
Request mode
Independent of bus
status
For removal measures in error messages/pre-failure messages, see chapter 11
"Troubleshooting".

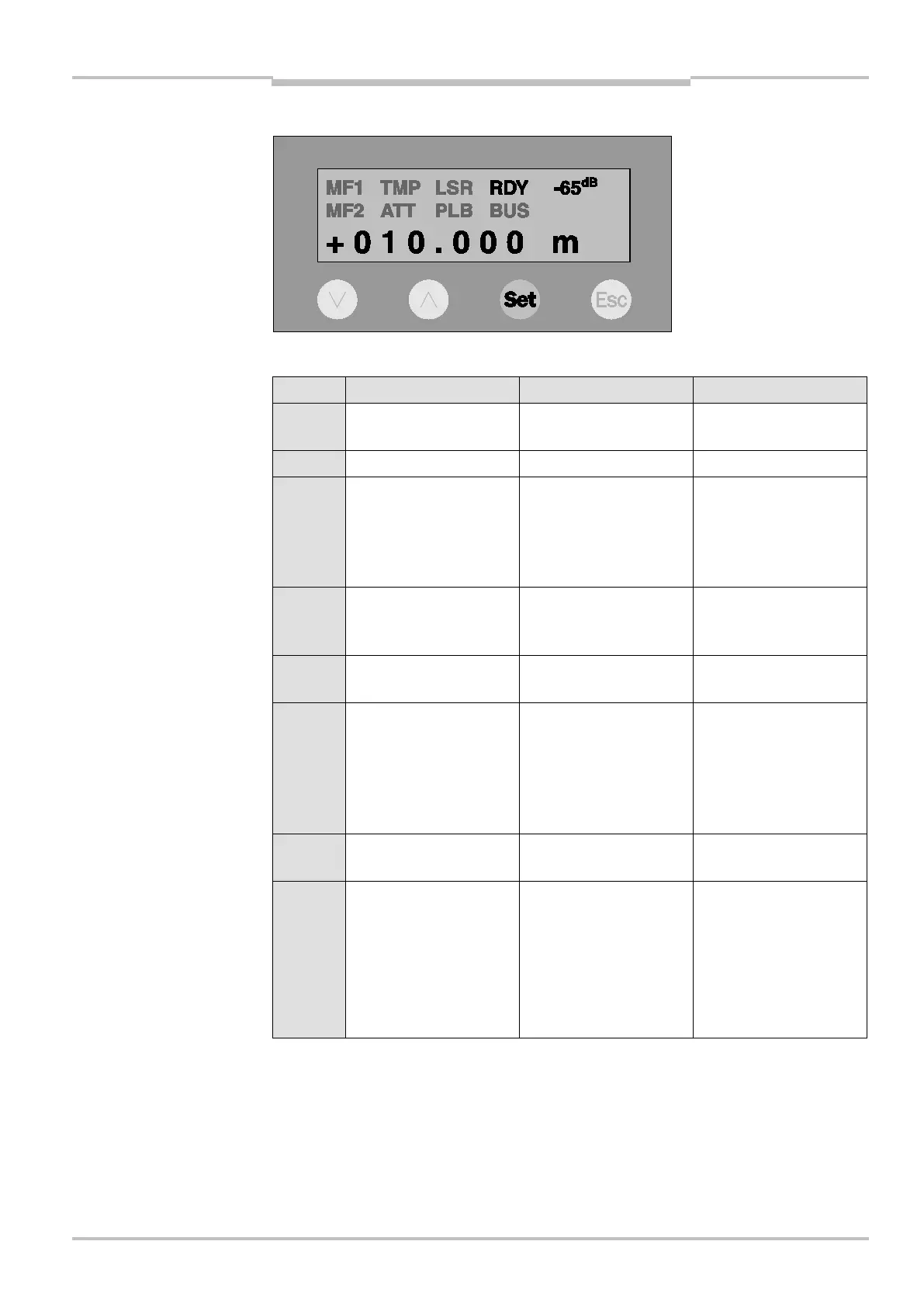

Fig. 19: Measured value
display
