4 Minimum detectable object (MDO) – Cross-beam function
25 % 50 % 25 %
1 2 1

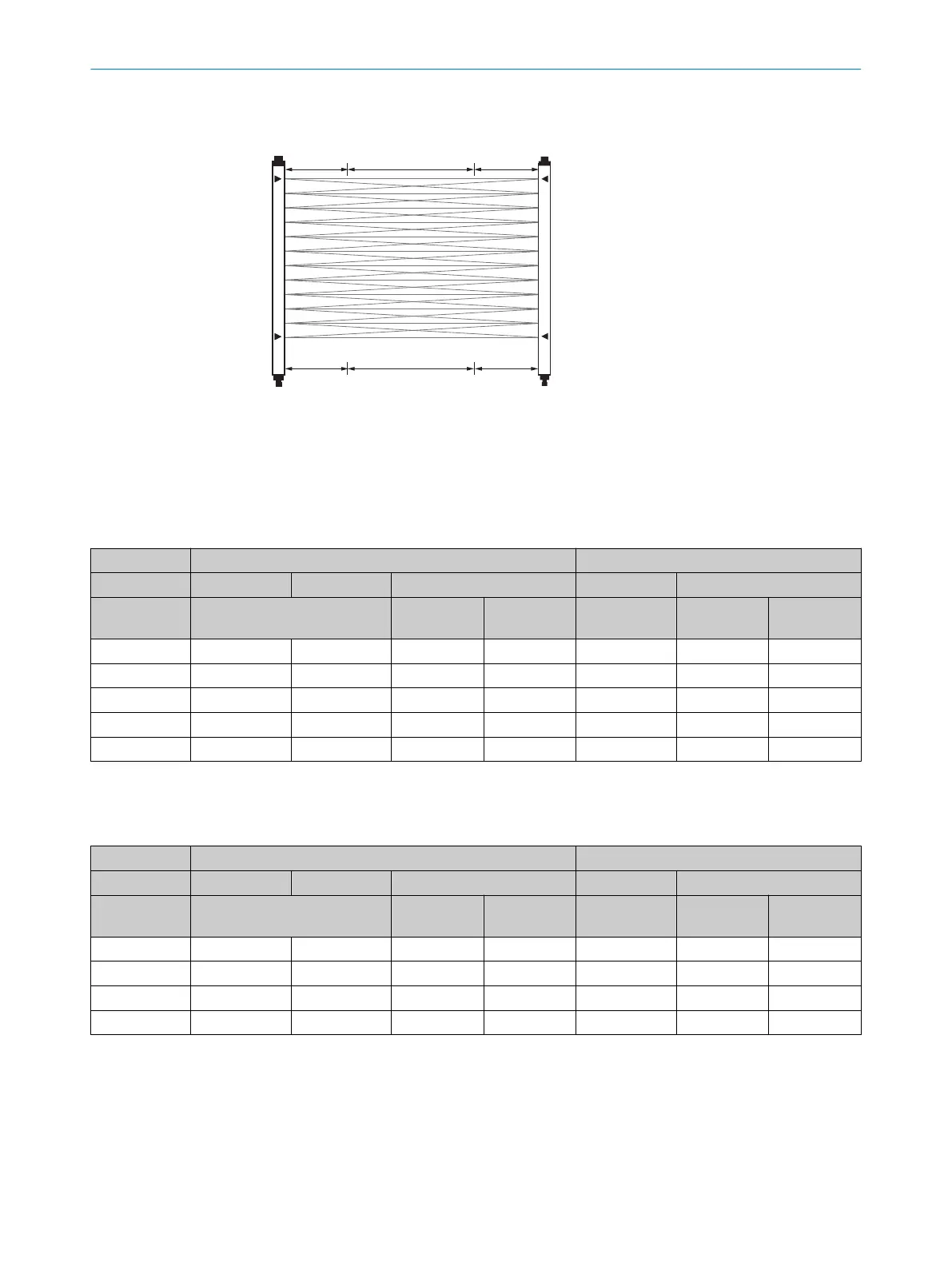

Figure 3: Cross-beam function
1
Area A
2
Area B
Operating range 5 m
Table 7: Cross-beam function, operating range 5 m – Minimum detectable object (stationary object) with standard measure‐
ment accuracy
MLG-1 MLG-2
± 3.6° ± 5° MDO ± 3.6° MDO
Beam separa‐
tion
Minimum distance In area A In area B Minimum dis‐
tance
In area A In area B
10 mm 350 mm 180 mm 15 mm > 10 mm 220 mm 14 mm 9 mm
20 mm 650 mm 320 mm 25 mm > 15 mm 440 mm 24 mm 14 mm
25 mm – 400 mm 30 mm > 18 mm 550 mm 29 mm 16.5 mm
30 mm 900 mm 470 mm 35 mm > 20 mm 660 mm 34 mm 19 mm
50 mm 1,500 mm 750 mm 55 mm > 30 mm 1,110 mm 54 mm 29 mm
Operating range 8.5 m
Table 8: Cross-beam function, operating range 8.5 m – Minimum detectable object (stationary object) with standard measure‐
ment accuracy
MLG-1 MLG-2
± 3.6° ± 5° MDO ± 3.6° MDO
Beam separa‐
tion
Minimum distance In area A In area B Minimum dis‐
tance
In area A In area B
10 mm 350 mm 180 mm 20 mm > 15 mm 240 mm 14 mm 9 mm
20 mm 650 mm 320 mm 30 mm > 20 mm 480 mm 24 mm 14 mm
30 mm 900 mm 470 mm 40 mm > 25 mm 720 mm 34 mm 19 mm
50 mm 1,500 mm 750 mm 60 mm > 35 mm 1,200 mm 54 mm 29 mm
4 MINIMUM DETECTABLE OBJECT (MDO) – CROSS-BEAM FUNCTION
10
