SICK MLG-2 - Comparison of IPG Protective Pipe for MLG-1 and IPG2 Protective Pipe for MLG-2, Aluminum

IPG2 for MLG-2
SW 32
SW 33
L
L + 107.4 (4.23)
L + 96 (3.78)
∅ 50
(1.97)
68 (2.68)
37
(1.46)
∅ 52.3
(2.06)
∅ 30
(1.18)
41
(1.61)
37
(1.46)
30
(1.18)
54
(2.31)
14 (0.55)14 (0.55)
5.4 (0.21)
∅ 37
(1.46)

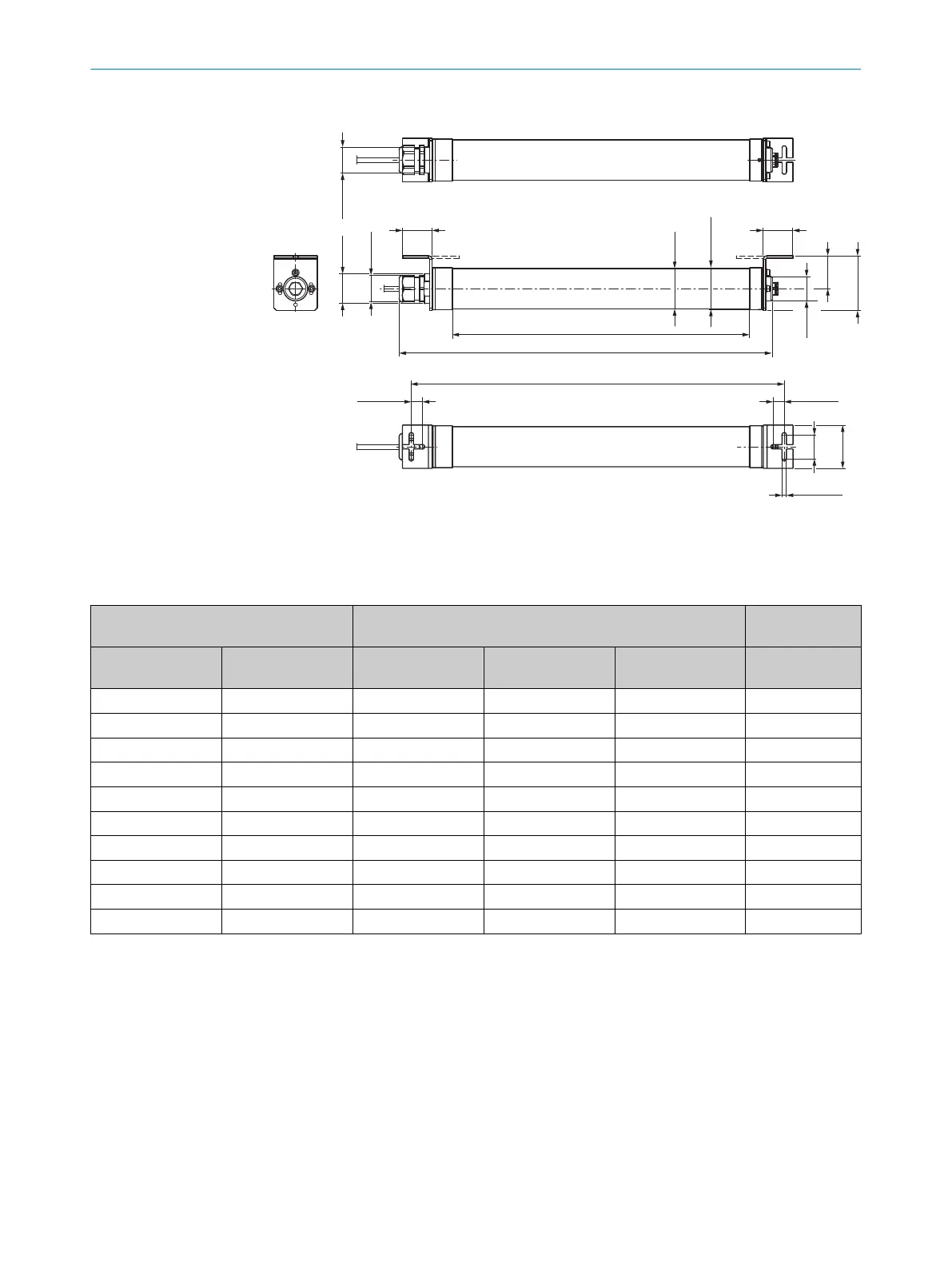

Figure 30: MLG-2 with IPG2 protective pipe
L Protective pipe length
Table 15: Comparison of IPG protective pipe for MLG-1 and IPG2 protective pipe for MLG-2, aluminum
MLG-1 MLG-2 MLG-2 and
MLG-1
Detection height IPG type (part num‐
ber)
Detection height IPG2 type IPG2 part number Protective pipe
length (L)
100 … 140 mm IPG67-02205111 140 … 145 mm IPG2-0220A5P167 2083870 220 mm
250 … 290 mm IPG67-03705111 250 … 295 mm IPG2-0370A5P167 2083871 370 mm
400 … 440 mm IPG67-05205111 400 … 445 mm IPG2-0520A5P167 2082909 520 mm
550 … 590 mm IPG67-06705111 550 … 595 mm IPG2-0670A5P167 2083872 670 mm
850 … 890 mm IPG67-09705111 850 … 895 mm IPG2-0970A5P167 2083873 970 mm
1,000 … 1,040 mm IPG67-11205111 1,000 … 1,045 mm IPG2-1120A5P167 2083874 1,120 mm
1,300 … 1,340 mm IPG67-14205111 1,300 … 1,345 mm IPG2-1420A5P167 2083875 1,420 mm
1,450 … 1,490 mm IPG67-15705111 1,450 … 1,495 mm IPG2-1570A5P167 2083878 1,570 mm
1,600 … 1,640 mm IPG67-17205111 1,600 … 1,645 mm IPG2-1720A5P167 2083879 1,720 mm
2,200 … 2,240 mm IPG67-23205111 2,200 … 2,245 mm IPG2-2320A5P167 2082189 2,320 mm
IPG PROTECTIVE PIPES 8
