7.3.6 “Configuration – Data interface” section
The “Data interface” section in the “MLG System Information” file corresponds to the
“Data interface” tab in MLGsetup (see figure 28, page 35).
MLG Parametrier Software Version 2.15
MLG System information
Data interface
Format of
data interface
Reporting mode
9600 Baud, hexadecimal-Coding type, no-Parity, Start character: None [00 H],
Stop character: LF [0A H], CR [0D H], Separation charcter: None [00 H]
Continuous
Basic function
transmitted on RS-485
BS
Figure 27: MLG-1 “MLG System Information” file, “Data interface” section (example)

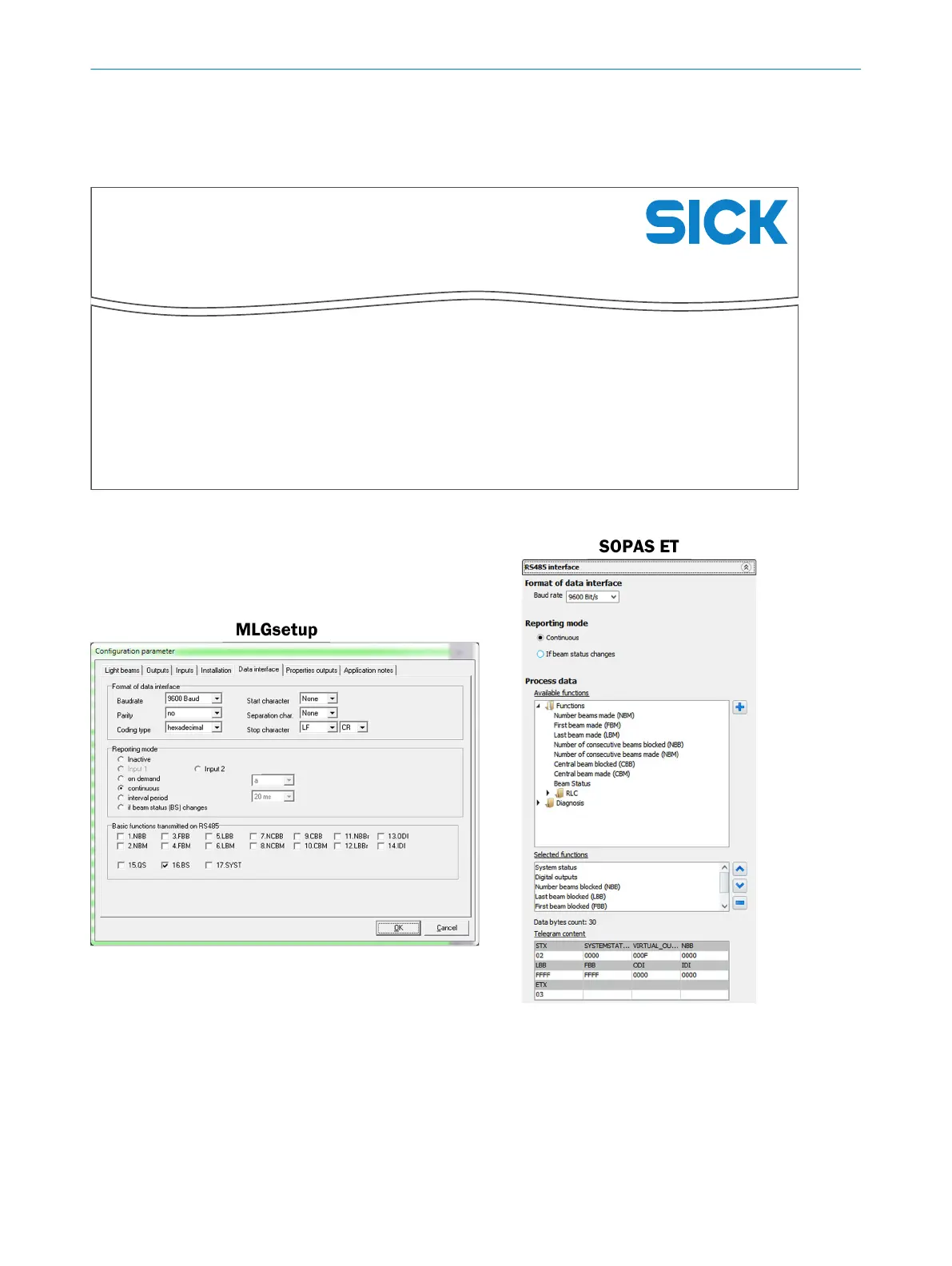

Figure 28: Data interface in MLGsetup and SOPAS ET
