MLG Parametrier Software Version 2.15
MLG System information
Installation
Offset (distance lowest/first light beam to object support)
Operating range of MLG (in the field)
Plug/cable entry orientation Below
100 mm
1000 mm
1
2
3
Figure 16: MLG-1 “MLG System Information” file, “Installation” section (example)
1
Offset does not need to be set in SOPAS
2
Operating range does not need to be set in SOPAS
3
Orientation: This should be set via the SOPAS ET installation wizard when setting up the MLG-2. Alternatively, it can be
set directly in SOPAS ET by selecting the “System” menu followed by the “Beam numbering” area.

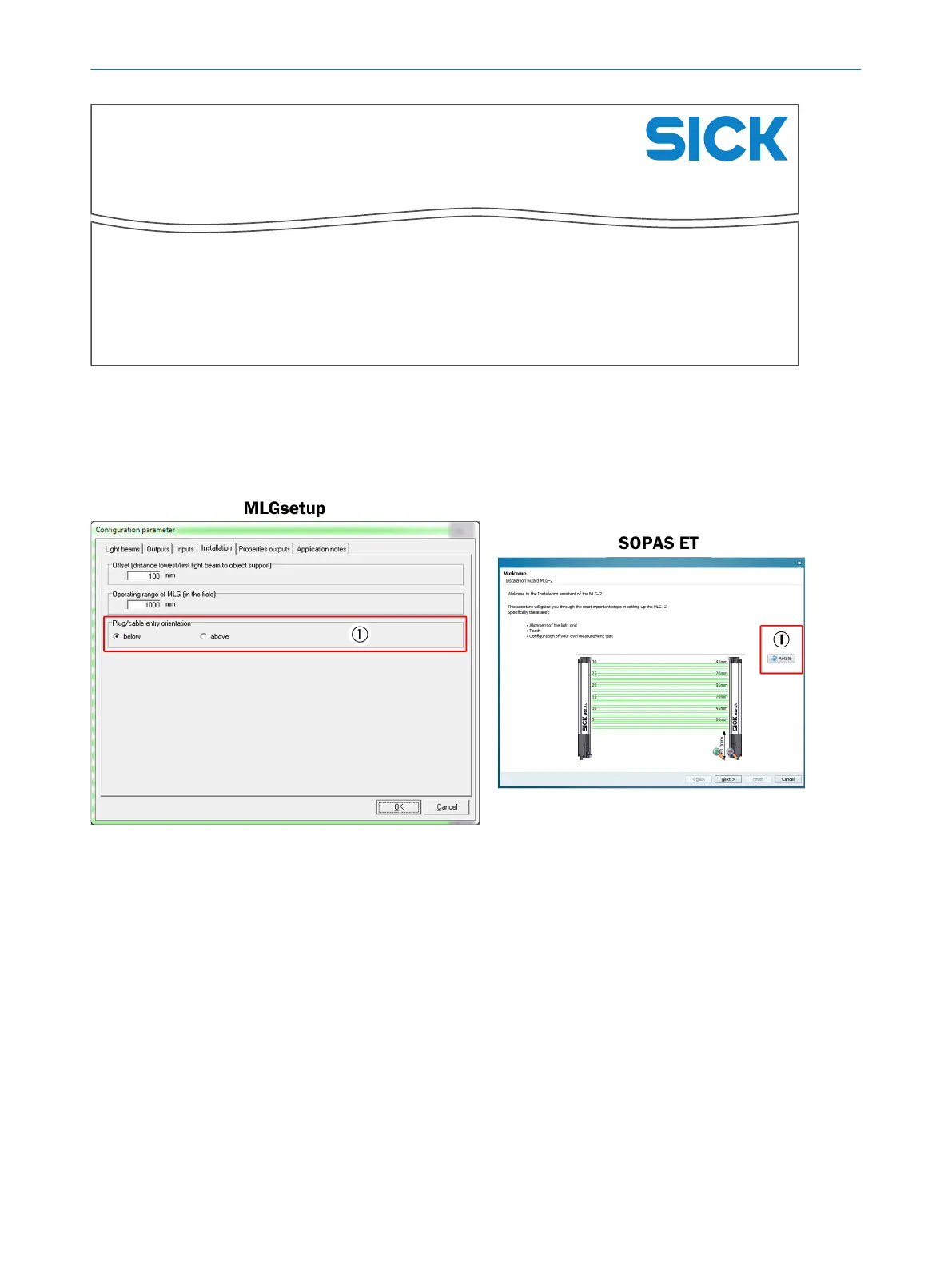

Figure 17: “Installation” in MLGsetup and SOPAS ET
1
Configuring the position of the light grid
7.3.3 “Configuration – Outputs” section
The “Outputs” section in the “MLG System Information” file corresponds to the following
tabs in MLGsetup:
■
“Outputs” tab: see figure 19, page 29
■
“Analog outputs” tab: see figure 21, page 31
■
“Properties outputs” tab: see figure 22, page 32
■
“Light beams” tab: see figure 24, page 33
CONFIGURATION 7
