Configuring the analog output

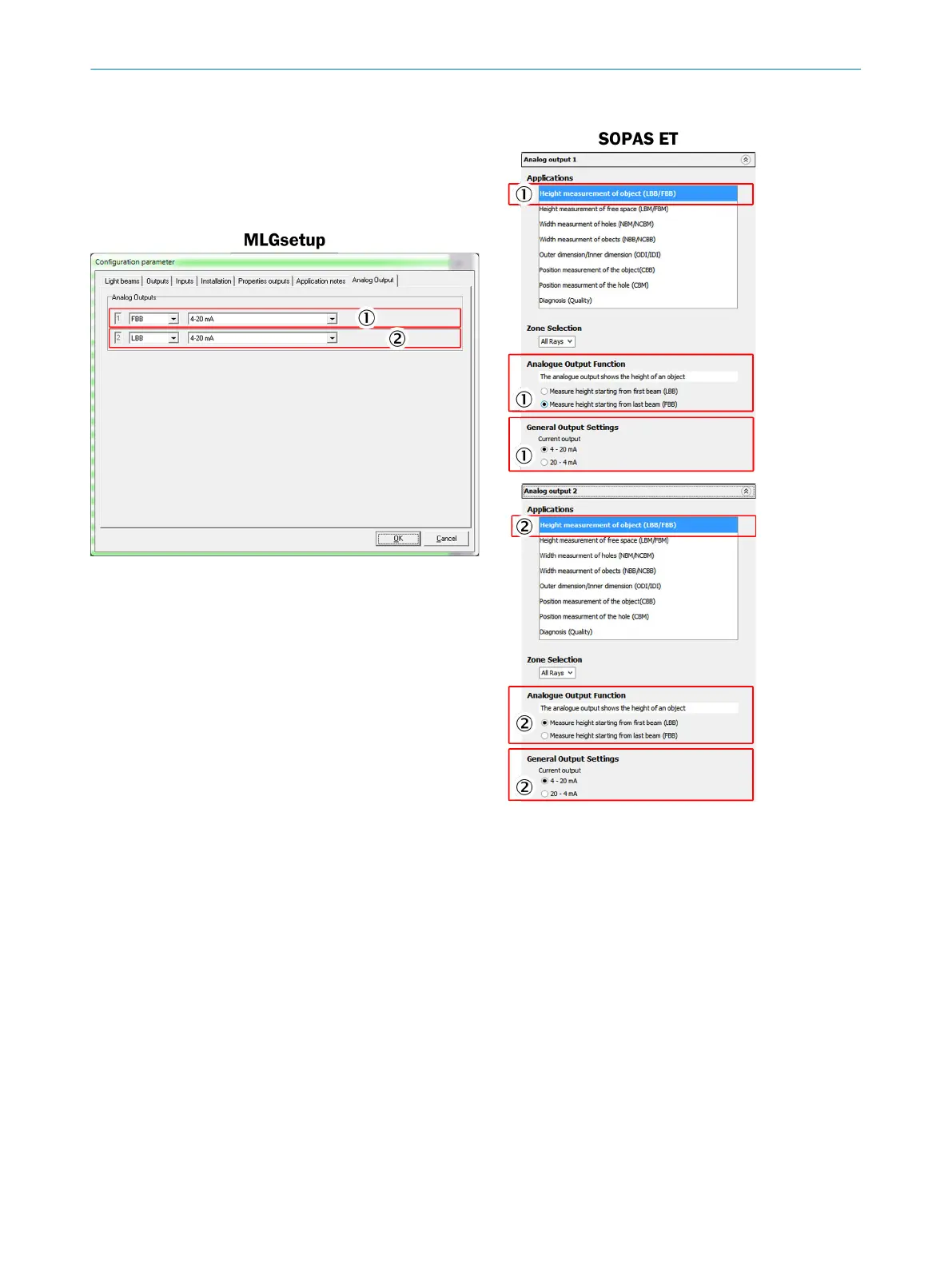

Figure 21: Analog outputs in MLGsetup and SOPAS ET
1
Configuring the analog output function (in this case: the “FBB” function)
2
Configuring the analog output function (in this case: the “LBB” function)
Configuring analog output QA1 (example)
On the MLG-1, analog output QA1 may (for example) be configured with function
“FBB = 4-20 mA”. To configure this function in SOPAS ET, proceed as follows:
1. In SOPAS ET, go to the right-hand window and select (for example) the “Analog out‐
put 1” menu.
2. Configure function “FBB = 4-20 mA” as follows:
■
In the “Applications” area, select the “Object height measurement (LBB/
FBB)” application.
■
In the “Analog function” area, select the “Measure height starting from first
beam (LBB)” option.
■
In the “General Output Settings” area, select the “4-20 mA” option.
CONFIGURATION 7
8020351.ZLW3/2017-05-03 | SICK T E C H N I C A L I N F O R M A T I O N | The MLG-2 as a replacement product for the MLG-1 and XLG
31
