5.1.3 Application 3 (PROFIBUS or CANopen)
M12; 12pin
1
A
MLG-1
2
1
2
M12; 5pin
A
MLG-2
4MLG-1
3 3
MLG-2 4
5
6
34
(1.34)
16.1
(0.63)
15 (0.56)
34 (1.36)
9 (0.35)
25
(0.98)
29
(1.14)
15 (0.56)
34 (1.36)
216 (8.50)
34
(1.34)
207 (8.15)
374 (14.72)
274 (10.79)
184 (7.24)
72 (2.83)
Ø 26.4
(Ø 1.04)
133 (5.24)
3 (0.12)
2.5 (0.10)

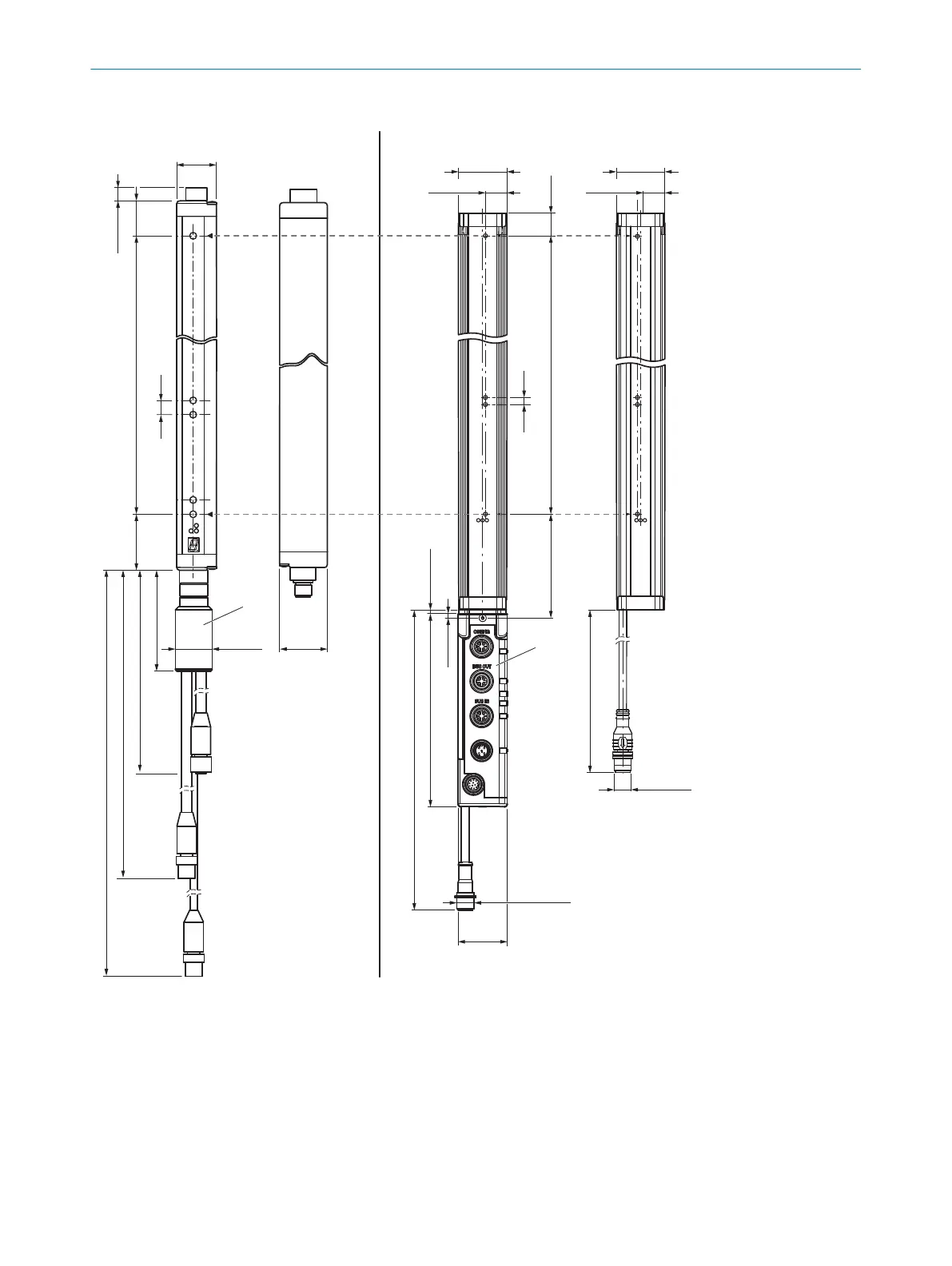

Figure 6: Application 3 – Comparison of distance between first beam and lower edge of housing on MLG-1 and MLG-2
1
Detection height
2
Beam separation
3
Receiver
4
Sender
5
Fieldbus module; the fieldbus module can be mounted separately
6
CANopen adapter ADAPT-CAN-GE-MLG or PROFIBUS adapter ADAPT-PB-GE-MLG
A Distance between lower edge of housing and first beam (see table 11, page 15)
