Configuring the inputs

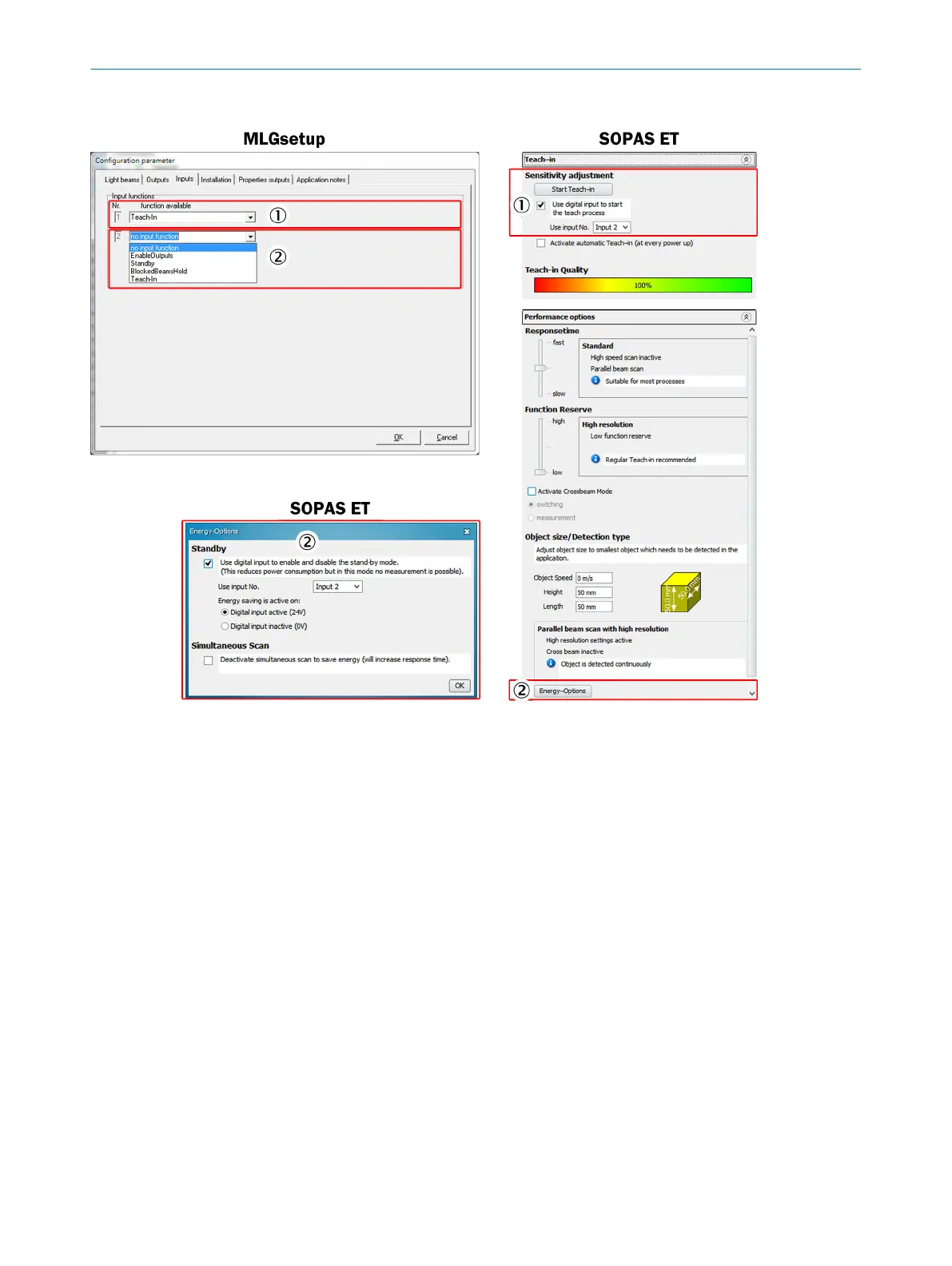

Figure 26: Inputs in MLGsetup and SOPAS ET
1
Configuring the “Teach-in” input function
2
Configuring the “Standby” input function
Configuring the “Teach-in” input function
1. In SOPAS ET, go to the middle window and select the “Expert” option in the “User
level” area.
2. In SOPAS ET, go to the right-hand window and select the “Teach-in” menu.
3. In the “Sensitivity adjustment” area, activate the “Use digital input to start the
teach process” option.
4. In the “Use output No.” field, assign the input for triggering the teach-in process.
Configuring the “Standby” input function
1. In SOPAS ET, go to the middle window and select the “Expert” option in the “User
level” area.
2. In SOPAS ET, go to the right-hand window and select the “Performance options”
menu.
3. In the “Object size/Detection type” area, click the “Energy-Options” button.
4. In the “Energy-Options” window, activate the “Standby mode” option.
5. In the “Use output No.” field, assign the input for triggering Standby mode.
