Hazardous area protection
In ha
zardous area protection, people are detected if they stay in a defined area. This
type of protective device is suitable for machines, where it is possible to see a haz‐
ardous area completely from the reset pushbutton. When the hazardous area is
entered, a stop signal is triggered and starting is prevented.

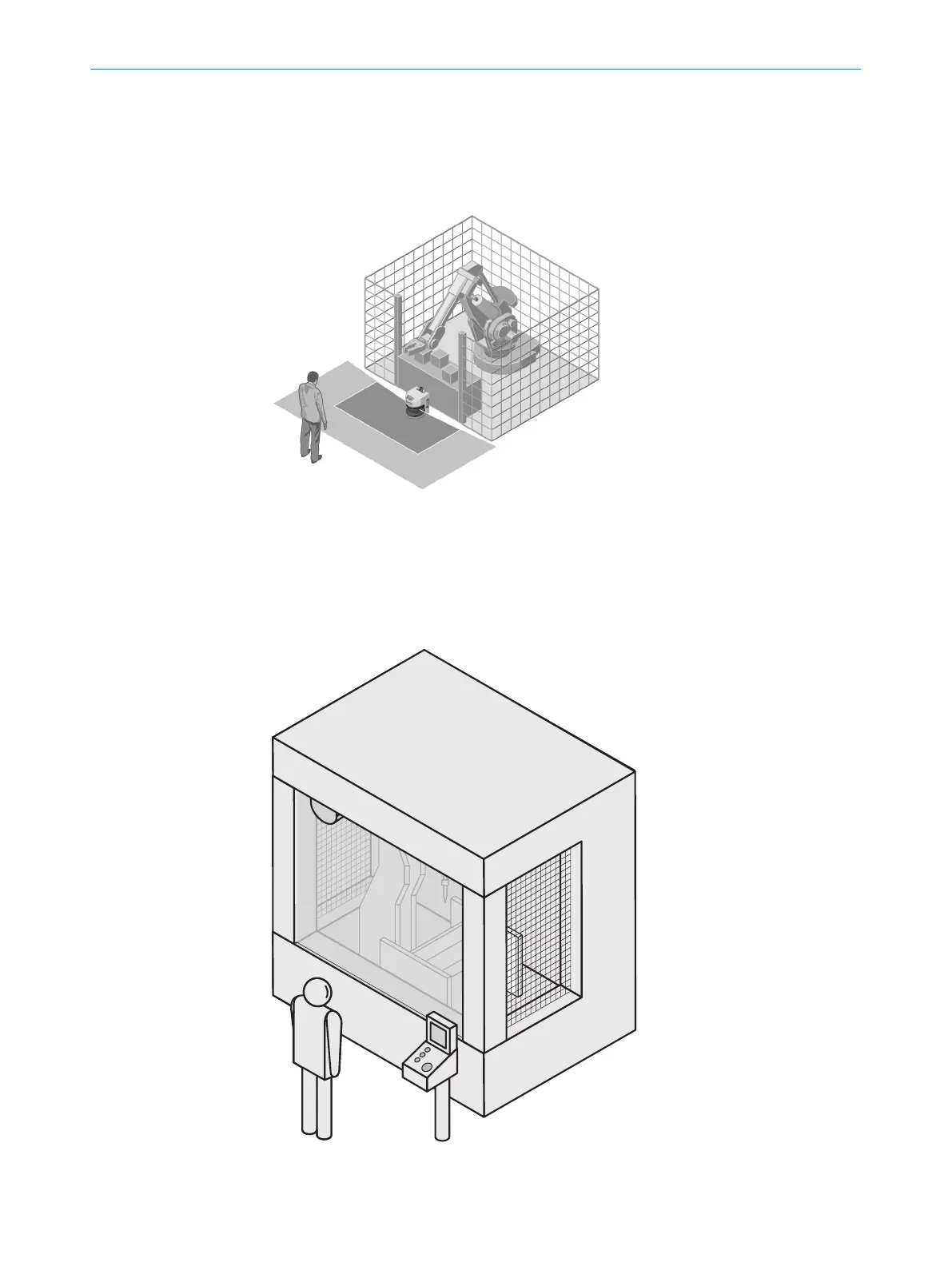

Figure 14: Hazardous area protection: detection of the presence of a person in the hazardous
ar
ea
Hazardous point protection
In ha
zardous point protection, the approach is detected very close to the hazardous
point. The advantage of this type of protective device is that it is possible to have a
short minimum distance and the operator can work more ergonomically.
Figure 15: Hazardous point protection: hand detection
PRODUCT DESCRIPTION 3
8012029/ZA20/2019-11-14 | SICK O P E R A T I N G I N S T R U C T I O N S | S3000 Cold Store
27
