SICK S3000 Cold Store - Mounting with Deflector Plates (Example); Implementation with an Undercut

DANGER
Ine
ffectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
If the vehicle takes off very quickly from standstill, the protective field must be suffi‐
ciently large to ensure that a person standing in front of it can be detected in time.
b
Select a sufficiently large protective field.
DANGER
Ine
ffectiveness of the protective device
Persons or parts of the body to be protected may not be recognized or not recognized in
time in case of non-observance.
•
When installing the system in a paneling, for example, prevent any interference
with the optical beam path.
•
Do not apply an additional front screen.
•
If a viewing slit is required, make sure that it is adequately dimensioned.

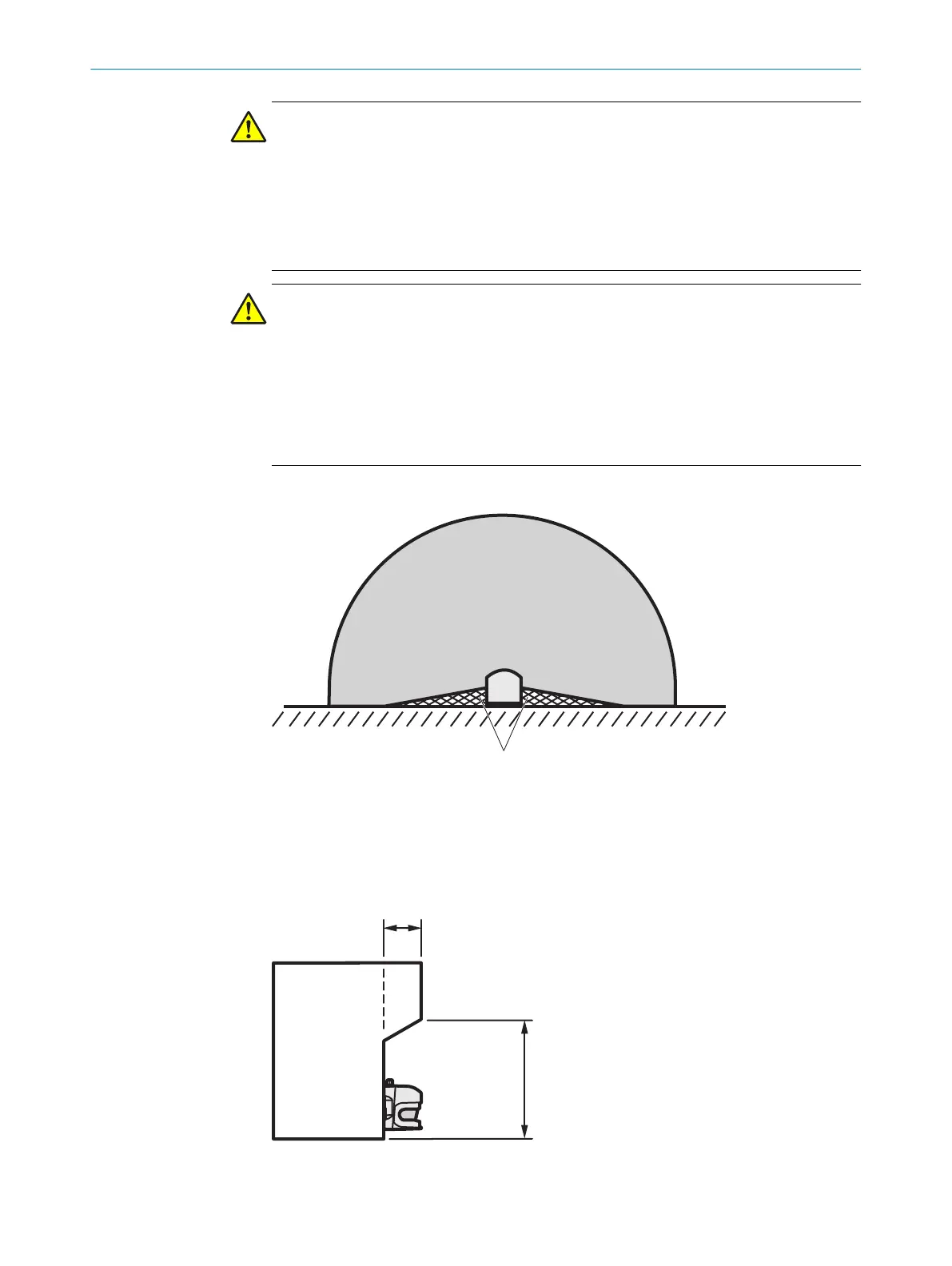

Mounting with deflector plates
1
Figure 26: Mounting with deflector plates (example)
b A
ttach the deflector plates 1 so that it is not possible to stand behind the unse‐
cured areas of the safety laser scanner.
Mounting in an undercut
1
2
Figure 27: Implementation with an undercut
