7 MAINTENANCE AND REPAIR
104
8023994-17I6/2020-03-19|SICK
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
Subject to change without notice
▸
Mount the replacement device by following the above instructions in reverse order
(see also chapter 4.1 Mounting the 2D LiDAR sensor).
▸
Insert the press-fit stud of the mounting plate into the locating hole of the 2D LiDAR
sensor.

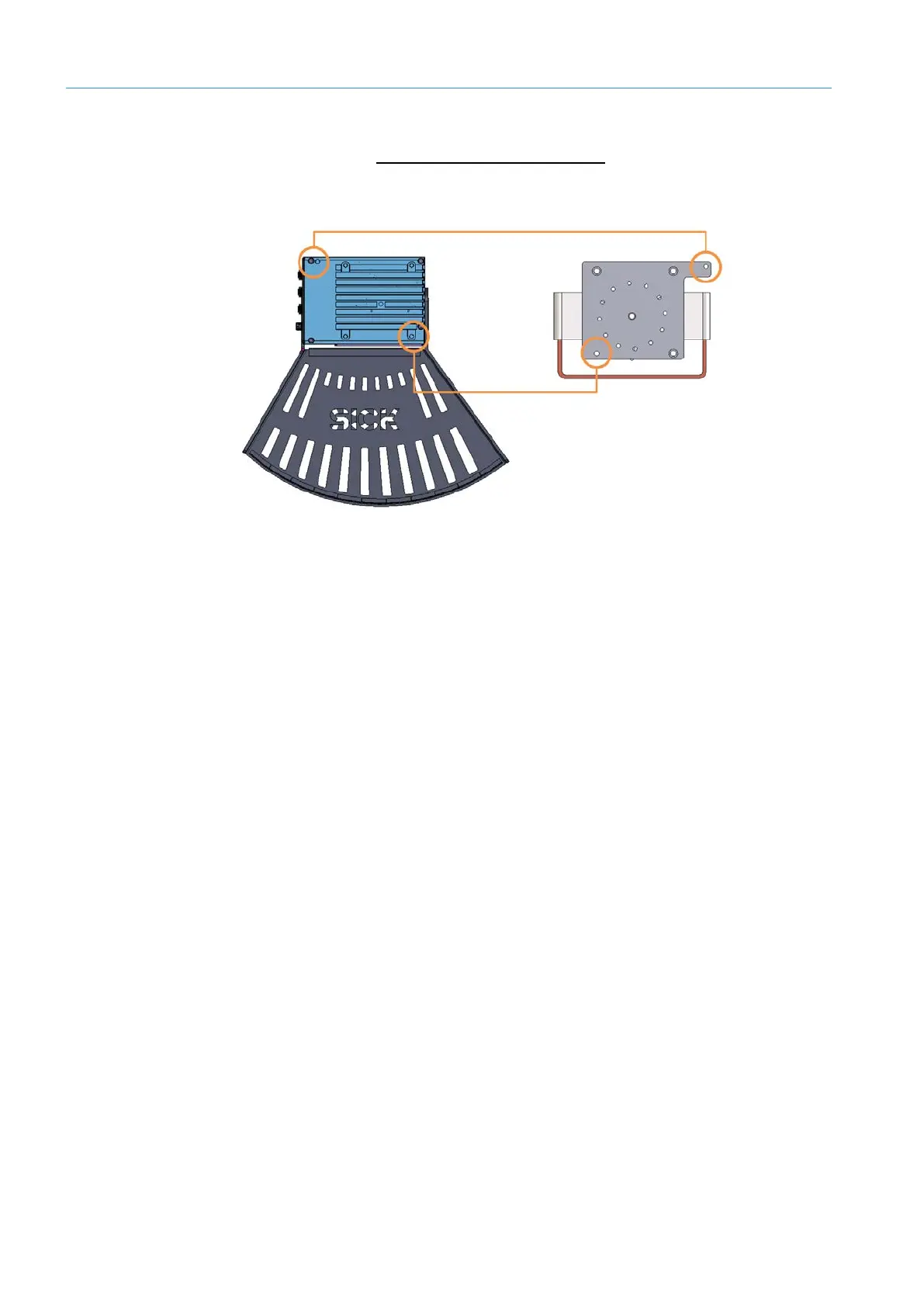

Fig. 91: Dowel pins and locating holes
▸
Press the device into place with one hand and screw the device to the mounting plate.
▸
Make sure that the device is securely screwed on.
▸
Screw the connecting cables back on.
▸
Switch the voltage supply back on.
▸
Check that the status LED lights up green after approximately 40 seconds.
▸
Conduct a test run and check whether the multi-dimensional measurement system is
providing plausible measurement results.
NOTE! It may be necessary to recalibrate the replaced 2D LiDAR sensor using SOPAS.
▸
After replacing a component, contact the manufacturer.
▸
The manufacturer will arrange for the system to be reverified after the replacement of a
component.
Mounting the
replacement device
Test run
Restoring MID
conformity
