SICK VMS4100 Operating Instructions

MAINTENANCE AND REPAIR 7
105
8023994-17I6/2020-03-19|SICK
Subject to change without notice
ORIGINAL OPERATING INSTRUCTIONS| VMS4100/5100
7.2.2 Replacing the deflector mirror
NOTE! Do not remove protective foil of the deflector mirror until mounting is complete.
WARNING
Loss of MID conformity after replacing a component
The deflector mirror is part of the legal-for-trade system.
When a component is replaced, the VMS5100 loses its legal-for-trade approval.
▸
After replacing a component, contact the manufacturer.
▸
The manufacturer will arrange for the system to be reverified after the replacement
of a component.

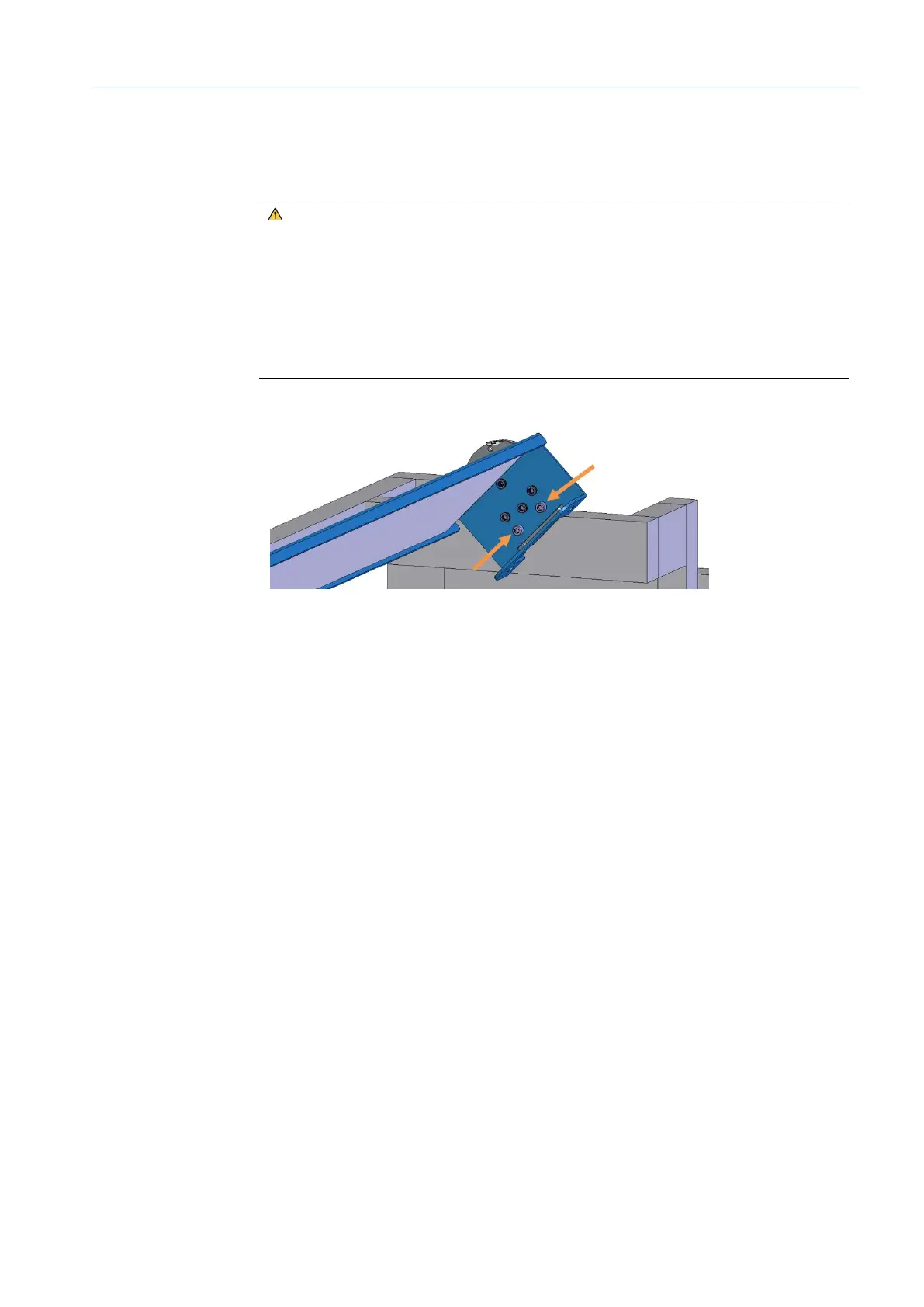

Fig. 92: Deflector mirror removal
▸
Mark the installed position of the deflector mirror in the mounted state (e.g., using the
hole pattern).
▸
Undo and remove the two fixing screws on the two 180° mounting brackets.
NOTE! For this, the deflector mirror needs to be held and secured against falling by
a second person.
 Remove the deflector mirror from the bracket.
▸
Insert the new deflector mirror into the 180° mounting bracket.
▸
Fasten the deflector mirror onto the bracket with the two fixing screws.
▸
Remove the protective film from the new deflector mirror.
 Check that the deflector mirror is aligned correctly.
Removing a defective
deflector mirror
Mounting a new
deflector mirror
